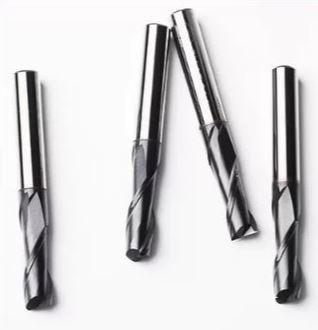

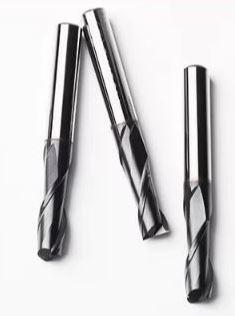

Two Flutes Milling Tungsten Carbide End Mill Smooth Shank S Excellent Chamfering
Two Flutes Milling Tungsten Carbide End Mill Smooth Shank S Excellent Chamfering
Two Flutes Milling Tungsten Carbide End Mill Smooth Shank S Excellent Chamfering
Two Flutes Milling Tungsten Carbide End Mill Smooth Shank S Excellent Chamfering
Specifications
Brand Name :
OEM
Model Number :
customized
Certification :
ISO9001
Place of Origin :
Zhuzhou City, Hunan Province, China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100,000 pcs
Delivery Time :
5 ~ 15 working days
Packaging Details :
One plastic pipe pack one piece,10pcs per group
Material :
Tungsten Carbide
ODM :
Accepted
OEM :
Accepted
Flute :
2 flute or Mutil flute available
Overall Lengh :
50 ~ 150mm
Type :
Flat End Mill
HRC :
58°
Description

High Performance 2 Flutes Milling Tungsten Carbide Square End Mill

Product Description

HRC 58
Flute 2
Category Flat
Spiral angel 35°
Diameter D1-D20mm
Overal length 50-150mm
Machine type Side face, Step shoulder, Straight slot

Advantages

1. With excellent cutting performance in both dry and wet cutting.

2. Using fine-grained high-quality carbide rods, imported five-axis tool grinding machines, strict tool inspection standards to ensure the size of the tool and consistency of the runout.

3. The smooth shank has excellent chamfering, which is convenient for installation, it saves the time of changing the tool.

4. Advanced coating after-treatment technology, for closer combination with substrate, lower friction and superior surface quality.

5. Double-edged belt desigh, and large space for chip removal.

Strength

Two Flutes Milling Tungsten Carbide End Mill Smooth Shank S Excellent Chamfering

Basic Size (mm) Flute Shape
D d H L
1.0 4 3 50 2 M1
1.5 4 4 50 2 M1
2.0 4 6 50 2 M1
2.5 4 8 50 2 M1
3.0 4 8 50 2 M1
4.0 4 11 50 2 M2
1.0 6 3 50 2 M1
1.5 6 4 50 2 M1
2.0 6 6 50 2 M1
2.5 6 8 50 2 M1
3.0 6 8 50 2 M1
4.0 6 11 50 2 M1
5.0 6 13 50 2 M1
6.0 6 16 50 2 M2
7.0 8 20 60 2 M1
8.0 8 20 60 2 M2
9.0 10 22 75 2 M1
10.0 10 25 75 2 M2
11.0 12 26 75 2 M1
12.0 12 30 75 2 M2
14.0 14 32 75 2 M2
16.0 16 45 100 2 M2
18.0 18 45 100 2 M2
20.0 20 45 100 2 M2

Two Flutes Milling Tungsten Carbide End Mill Smooth Shank S Excellent Chamfering
