YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted
YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted
YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted
YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted
YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted
YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted
Specifications
Brand Name :
OEM
Model Number :
customized
Certification :
ISO9001
Place of Origin :
Zhuzhou City, Hunan Province, China
MOQ :
10 pc
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100,000 pcs
Delivery Time :
5 ~ 15 working days
Packaging Details :
shock proof material, carton or plywood case outside
Material :
Tungsten Carbide
ODM :
Accepted
OEM :
Accepted
Grade :
YG6, YG8, YL10.2, UF06, UF10, UF12
Application :
Carbide End Mills , Carbide Drills
Diameter :
0.3 - 50 mm
Length :
30mm - 330mm
Description

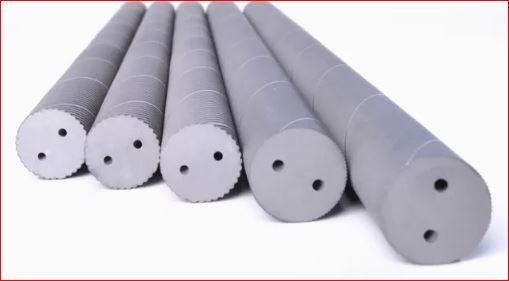

Blank Round Tungsten Carbide Rod With 2 Parallel Coolant Holes YG6 YG8 Grade

Product Description

The Tungsten Carbide Rods (Cemented Carbide Rods), are used in high quality carbide cutting tools for the machining of

heat-resistant alloys and Ti alloy, such as end mill, drill, reamer.

Grade Grain size Cobalt Content
(%)		 Density
g/cm3		 Hardness
HRA		 TRS
N/Mm2
YG8 Medium 8 14.7 89.5 2200
YL10.2 Extrafine 10 14.42 91.8 4000
UF06 Submicron 6 14.9 93.5 3800
UF12 Submicron 12 14.05 92.5 4000

Grade

Grain Size

(um)

Cobalt Conten

(WT. %)

Density

(g/cm3)

Hardness

(HRA)

T.R.S

(N/mm2)

 ISO Code
UF10U 0.3 ~ 0.6 um 10 14.35 92.6 3600 k30
UF12U 0.3 ~0.6 um 12 14.15 92.3 3900 k40
UF06 0.6 ~0.8 um 6 14.90 93.5 3800 k05
UF10 0.6 ~0.8 um 10 14.42 91.8 4000 k30
UF50 0.8 ~ 1.2 um 15 14.00 87.6 4000 k40
YG10X 1.3 ~ 2.5 um 10 14.43 91.5 2500 k30

Products available


1. solid carbide rods
2. single central hole rods
3. double parallel hole rods
4. double helical 30° 40° hole rods
5. chamfered rods
6. other special customized rods

YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted

Type Dimension Weight
D Tol. d Tol. TK Tol. Pitch Tol. Angle
mm mm mm mm mm mm mm mm mm kg
⌀4*330 4 +0.6-1.0 0.6 ±0.1 2.2 -0.4 21.77 ±0.5 30° 0.095
⌀6*330 6 +0.7-1.1 0.7 ±0.1 2.6 -0.4 32.65 ±0.7 30° 0.187
⌀8*330 8 +0.8-1.2 0.7 ±0.1 4.0 -0.4 43.53 ±1.0 30° 0.316
⌀10*330 10 +0.8-1.2 1.4 ±0.15 4.8 -0.6 54.41 ±1.2 30° 0.470
⌀12*330 12 +0.9-1.3 1.4 ±0.15 6.25 -0.8 65.3 ±1.4 30° 0.664
⌀14*330 14 +0.9-1.3 1.75 ±0.2 7.1 -0.8 76.18 ±1.6 30° 0.881
⌀15*330 15 +0.9-1.3 1.75 ±0.2 7.7 -0.8 81.62 ±1.7 30° 1.000
⌀16*330 16 +1.0-1.4 1.75 ±0.2 8.3 -0.8 87.06 ±1.8 30° 1.141
⌀18*330 18 +1.0-1.4 2.0 ±0.25 9.55 -0.8 97.95 ±2.0 30° 1.420
⌀20*330 20 +1.0-1.4 2.0 ±0.25 10.4 -1.0 108.83 ±2.2 30° 1.729
⌀22*330 22 +1.0-1.5 2.0 ±0.25 11.6 -1.0 119.71 ±2.4 30° 2.087
⌀25*330 25 +1.1-1.6 2.0 ±0.25 13.3 -1.0 136.04 ±2.8 30° 2.667

YG6 YG8 Grade Carbide Drill Blanks With 2 Parallel Coolant Holes OEM Accepted
