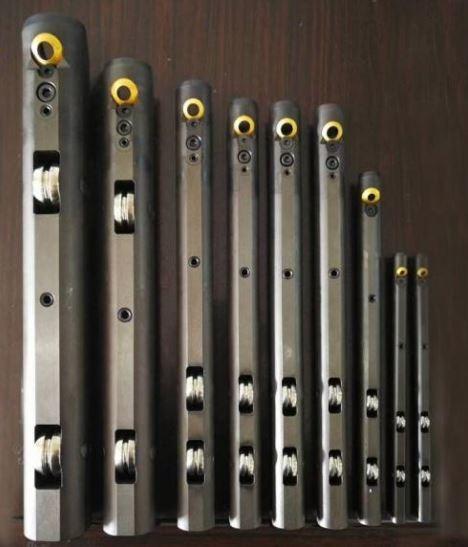

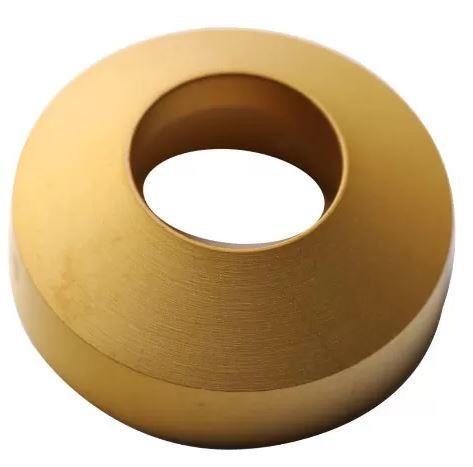

Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding
Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding
Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding
Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding
Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding
Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding
Specifications
Brand Name :
OEM
Model Number :
customized
Certification :
ISO9001
Place of Origin :
Zhuzhou City, Hunan Province, China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200,000 pcs per month
Delivery Time :
5-20 working days, to be negotiated
Packaging Details :
plastic box inside and paper box outside
Material :
Tungsten Carbide
Grade :
YP731, YP730
Usage :
Carbide Lathe Tools
Type :
Tungsten Carbide Milling Inserts
OEM :
Applicable
ODM :
Applicable
Description

Tungsten Carbide Internal Scarfing Rings Inserts for High Frequency Welding Pipe and Tubes Machining

Internal Scarfing Rings Solid Carbide Inserts For High Frequency Welding Pipe Machining

Poduct Features

What is ID tube scarfing?

ID Tube Scarfing is a manufacturing process which used by tube

and pipe producers to remove the internal longitudinal weld bead

from the inside of the tubes or pipe,The scarfing process need to

be processed immediately after welding, so that the material could

be removed relatively easily. Therfore, it’s very important for scarfing

tools and the corresponding inserts to be reliable and resist chipping

and breaking of the cutting surface or the tool itself.

What about the Scarfing inserts?

Scarfing inserts must be made of extremely hard materials to handle with

the operating temperatures and removal of the metals. The inserts is to

cut the weld bead as cleanly as possible without chattering or chipping

and to maintain a smooth pipe surface while extending the life time of the inserts.


Grades recommendation

YC333 Yellow The combination of high strength and high toughness substrate with (MT-TiCN+thick AL2O3 + TiN )coating is the general brand of steel processing

Strength of Internal Scarfing Ring Insert

Machining Range
(mm)		 Cutting Edge
Length(mm)
14-17 8
17-20 10
20-26 13
26-34 13
24-36 13
26-48 19
28-50 19
30-60 19
32-41 22
41-50 25
48-72 30
70-85 35
85-100 35
100-130 45
125-160 50
150-508 55
260-610 65
508-630 65

Advantage

1. OEM and ODM applicable.

2. Suggsting more suitable model to replace any other brands.

3. Offering together with tool holder.

4. Less tool breakage, cost down of each componet

5. Long tool life and higer production efficiency

Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding

Tungsten Carbide Internal Scarfing Rings Brazed Inserts For Pipe Welding
