Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools
Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools
Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools
Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools
Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools
Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools
Specifications
Brand Name :
OEM
Model Number :
customized
Certification :
ISO9001
Place of Origin :
Zhuzhou City, Hunan Province, China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50,000 pcs per month
Delivery Time :
5-20 working days, to be negotiated
Packaging Details :
plastic box inside and paper box outside
Material :
Tungsten Carbide
Type :
Internal Turning Inserts
Grade :
YP731
Coating :
PVD
OEM :
Accepted
ODM :
Accepted
Vc :
100-250m/min
Use :
CNC Stainless Steel Machining, Semi-finishing And Finishing For Stainless Steel Machining
Description

Tungsten Carbide Internal Turning Inserts Stainless Steel Finishing Cutting Tools

Poduct Features

What is tungsten carbide internal turning inserts?

In internal turning, it is advantageous to use positive basic-shape inserts

as they have lower cuttingforces compared to negative inserts. A small nose angle,

as well as a small nose radius, also contributeto reduced cutting forces.

Turning geometries can be divided into three basic styles that are optimized for finishing,

medium and roughing operations. The diagram shows the working area for each geometry,

based on acceptable chip breaking, in relation to feed and depth of cut.

Roughing

High depth of cut and feed rate combinations. Operations requiring the highest edge security.

Medium

Medium operations to semi-finishing. Wide range of depth of cut and feed rate combinations.

Finishing

​​Operations at light depths of cut and low feed rates. Operations requiring low cutting forces.

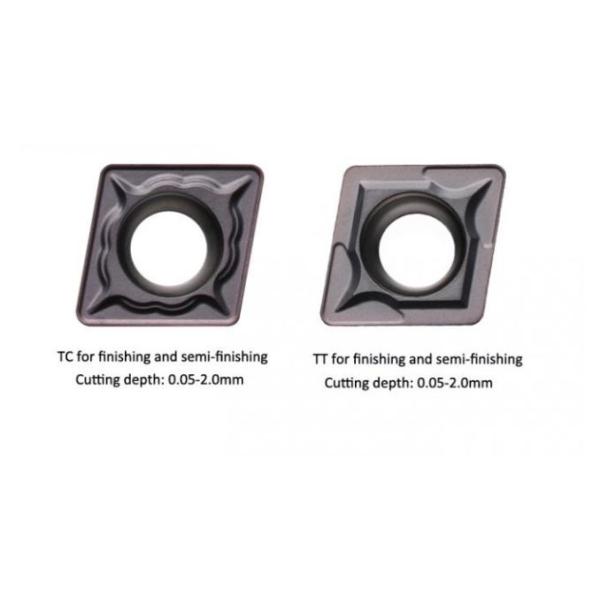

Different chipbreakers of CCMT for stainless steel machining

Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools

Grade information

YP731 The high toughness substrate with TiALSIN coating of ultrafine grain size, is universal and suitable for the processing of stainless steel and high temperature alloy. PVD coating

Advantages

1. Produced with advanced equipments and process

2. High quality with competitive price.

3. Large stock available.

4. Small order is also welcomed.

5. We have more than 10 years experience.

6. 100% inspection before shipment to make sure qualified products and no more or less than order

7. Quality control and delivery on time.

8. Offer together with tool holder

Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools

Internal Turning Tungsten Carbide Inserts Stainless Steel Finishing Cutting Tools
