High Precision Tungsten Carbide Ball And Seat For Oil Field YG6 YG8
High Precision Tungsten Carbide Ball And Seat For Oil Field YG6 YG8
High Precision Tungsten Carbide Ball And Seat For Oil Field YG6 YG8
High Precision Tungsten Carbide Ball And Seat For Oil Field YG6 YG8
Specifications
Brand Name :
N&D
Model Number :
CUSTOMIZED
Certification :
ISO,API
Place of Origin :
CHINA
MOQ :
10 PIECE
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
6 TONS PER MONTH
Delivery Time :
15-30 DAYS
Packaging Details :
STANDARD EXPORT PACKING
Product name :
carbide ball and seat Specialized for Sealing
Material :
Tungsten Carbide WC+Co
Grade :
YG6, YG8 etc
OEM/ODM :
accepted
Application :
Oil pump, oil industry
Size :
Standard & Customized
Description

OEM Tungsten carbide ball and seat for oil field

Description

Cemented carbide valve ball or cemented carbide ball valve is evolved from the traditional plug valve. Its opening and closing parts are a ball, and the purpose of opening and closing is realized by the ball around the axis of the valve rod. The hard alloy valve seat is used in various specifications and configurations, and can be used under wearing, corrosive and corrosive conditions. Alloy valve seat is matched with alloy ball.

Specification

Product Name
Tungsten Carbide Ball and Seats Specialized for Sealing
Material Specification
Typical Material composition is
5~8% Cobalt (Co)
92~95% Tungsten Carbide (WC)

But other compositions are available with cobalt content up to 15% . Hardness reduces and toughness increases with increasing cobalt content.
Standard
Metric and Inch size
Tolerance
Sintered as blank, polished or grinding to ABMA grade tolerance, G5, G10, G16, G100 etc. Also grinding to special request.
Grade
A variety of grades that provide exceptional wear and impact resistance grades for your job. K10/K20/K30 etc.
Application
Tungsten carbide seats are used for various Oil Field Equipment and Oilfield Valves such as Conventional Gas Lift Valves, Wireline Retrivable (WLR) Injection Pressure Operated (IPO) Gas Lift Valves etc.

Why choose us

1.Direct factory sale.

2.Reasonable price.

3.good wear resistance.

4.Longer service life.

5.OEM service available.

6.Short and on time delivery.

7.Samples and small orders are acceptable.

High Precision Tungsten Carbide Ball And Seat For Oil Field YG6 YG8

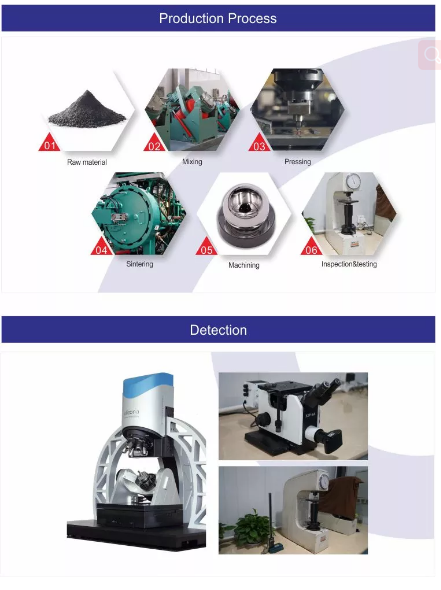

Every part is carefully processed (by grinding, machining, milling, wire-cutting, EDM etc) to the exact tolerances shown on the drawing and carefully checked both in production line and QC room (QC check every dimension of every part before packing and shipping). In this way, we assured the high precision and thus the interchangeability in the tool room of the customers’ factory.
