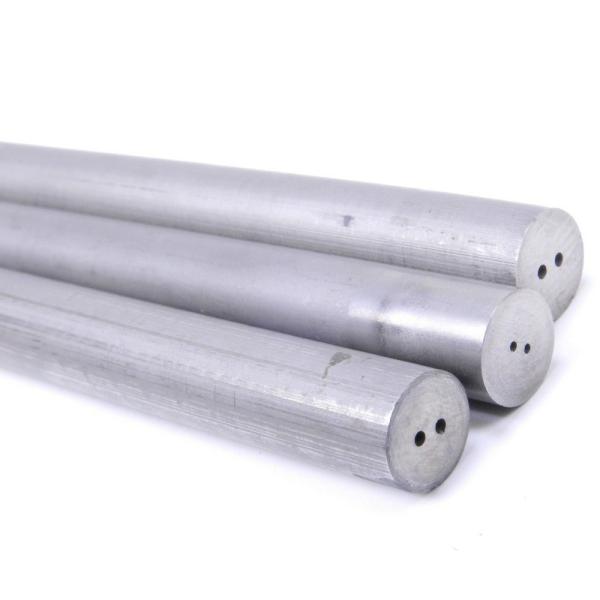

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel
Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel
Specifications
Brand Name :
OUQI
Model Number :
Straight Coolant Rods
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Binder :
14%
ISO Grade :
K05-K10
Diameter :
9mm
ID :
1.0mm
Length :
330mm
Surface Roughness :
Raw sintered blank
Circularity :
0.15-0.3mm
straightness :
0.15-0.3mm
Density :
6.4
Hardness HHV30 :
1580
T.R.S :
2000
KIC :
8.5
Description

Cermet Tungsten Carbide Rods with One straight Holes K05-K10 for machining steel

ISO K05-K10

Cobalt: 14%

Outer diameter 9mm +0.3

Inner diameter: 1.0 +/-0.15

Length: 330mm +3mm

Surface roughness: Raw sintered Ra 6.3 or as required

Application: particularly for the finish machining of steel. Thanks to its high oxidation resistance and low tendency to stick it is particularly suitable for the production of uncoated reamers.

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

Grade datasheet:

ISO CODE U.S.CODE Binder Density Hardness Transverse KIC
g/cm3 HV30 HRA Mpa Mpa.m1/2
K05-K10 C-2 14.1 6.4 1580 91.8 2000 8.5

For more grades details, please kindly check the general datasheet in the following details:

Regular size for one central hole carbide rods:

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

Outer Diameter mm Inner Diameter mm Length mm
OD Tol. ID Tol. Length Tol.
2.50 +0.2/+0.5 0.3 ±0.1 330 0/+5.0
4.00 +0.2/+0.6 1.0 ±0.15 330 0/+5.0
5.00 1.0 ±0.15 330 0/+5.0
5.00 1.5 ±0.15 330 0/+5.0
6.00 1.0 ±0.15 330 0/+5.0
6.00 1.5 ±0.15 330 0/+5.0
8.00 1.0 ±0.15 330 0/+5.0
8.00 1.5 ±0.15 330 0/+5.0
9.00 +0.3/+0.7 1.0 ±0.15 330 0/+5.0
10.00 1.0 ±0.15 330 0/+5.0
10.00 2.0 ±0.2 330 0/+5.0
11.00 1.0 ±0.15 330 0/+5.0
12.00 1.0 ±0.15 330 0/+5.0
12.00 2.0 ±0.2 330 0/+5.0
14.00 2.0 ±0.2 330 0/+5.0
16.00 +0.4/+0.8 2.0 ±0.2 330 0/+5.0
16.00 3.0 ±0.25 330 0/+5.0
18.00 3.0 ±0.25 330 0/+5.0
20.00 3.0 ±0.25 330 0/+5.0
22.00 3 ±0.25 330 0/+5.0
24.00 4 ±0.30 330 0/+5.0
25.00 5 ±0.35 330 0/+5.0

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

Regular size for two straight coolant holes carbide rods:

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

Outer Diameter mm TK mm Inner Diameter mm Deviation of holes
position≤(mm) a		 Length mm
OD Tol. TK Tol. ID Tol. Length Tol.
4.30 +0/+0.3 1.8 -0.4/0 0.800 ±0.1 0.15 330 0/+5.0
5.30 2.0 -0.4/0 0.800 ±0.1 0.20 330 0/+5.0
6.30 3.0 -0.5/0 1.000 ±0.15 0.20 330 0/+5.0
7.30 3.5 -0.5/0 1.000 ±0.15 0.20 330 0/+5.0
8.30 4.0 -0.6/0 1.000 ±0.15 0.20 330 0/+5.0
9.30 4.0 -0.6/0 1.400 ±0.15 0.20 330 0/+5.0
10.30 5.0 -0.6/0 1.400 ±0.15 0.20 330 0/+5.0
11.30 +0/+0.4 5.0 -0.6/0 1.400 ±0.15 0.28 330 0/+5.0
12.30 6.0 -0.6/0 1.750 ±0.15 0.30 330 0/+5.0
13.30 6.0 -0.6/0 1.750 ±0.15 0.34 330 0/+5.0
14.30 7.0 -0.6/0 1.750 ±0.15 0.37 330 0/+5.0
15.30 8.0 -0.6/0 2.000 ±0.2 0.37 330 0/+5.0
16.30 8.0 -0.6/0 2.000 ±0.2 0.40 330 0/+5.0
17.30 +0/+0.6 9.0 -0.6/0 2.000 ±0.2 0.47 330 0/+5.0
18.30 9.0 -0.6/0 2.000 ±0.2 0.50 330 0/+5.0
19.30 9.0 -0.6/0 2.000 ±0.2 0.50 330 0/+5.0
20.30 10.0 -0.8/0 2.500 ±0.25 0.50 330 0/+5.0

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0 18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron


Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

What we can provide

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel

Straight Coolant Holes Cermet Carbide Rods K05 - K10 For Machining Steel
