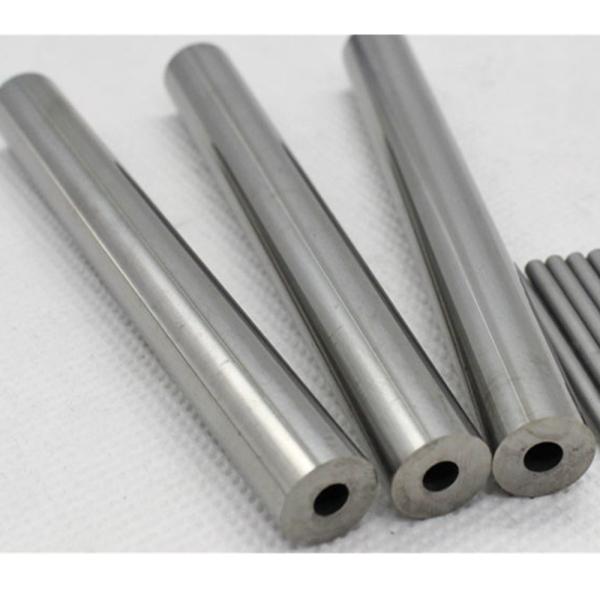

Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6
Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6
Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6
Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6
Specifications
Brand Name :
OUQI
Model Number :
Straight Coolant Rods
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
9% Cobalt
ISO Grade :
K0-K10
Diameter :
16mm
ID :
2.0mm +/-0.15
Tolerance :
h6 finished ground
Surface Roughness :
Ra 0.2
Circularity :
0.02
straightness :
0.02
Density :
14.35
Hardness HHV30 :
1950
T.R.S :
3800
Grain size :
Nano
Description

Nano Grain size tungsten carbide one straight hole rods for machining stainless steel

ISO K05-k10

Cobalt: 9% , other WC 91%

Outer diameter 16mm +0.2/+0.5

Inner diameter: 2.0mm ±0.15

Length: 150mm 0/+0.2-0.7mm

Surface roughness: Finished ground Ra0.2

Application: Nano grain size, hardness can be up to HV30 1920. used to make drills and end mills for general purpose, such as heat-resistant alloy, cast iron.

Recommended Carbide grade

Classification K05-K10
Co % 9
WC incl. doping 91
Density g/ cm3 14.35
Hardness HV30 1920
Fracture toughness 9.3
Transverse rupture strength 3800
Average grain size 0.2

Regular size for one central hole carbide rods:

Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6

Outer Diameter mm Inner Diameter mm Length mm
OD Tol. ID Tol. Length Tol.
2.50 +0.2/+0.5 0.3 ±0.1 330 0/+5.0
4.00 +0.2/+0.6 1.0 ±0.15 330 0/+5.0
5.00 1.0 ±0.15 330 0/+5.0
5.00 1.5 ±0.15 330 0/+5.0
6.00 1.0 ±0.15 330 0/+5.0
6.00 1.5 ±0.15 330 0/+5.0
8.00 1.0 ±0.15 330 0/+5.0
8.00 1.5 ±0.15 330 0/+5.0
9.00 +0.3/+0.7 1.0 ±0.15 330 0/+5.0
10.00 1.0 ±0.15 330 0/+5.0
10.00 2.0 ±0.2 330 0/+5.0
11.00 1.0 ±0.15 330 0/+5.0
12.00 1.0 ±0.15 330 0/+5.0
12.00 2.0 ±0.2 330 0/+5.0
14.00 2.0 ±0.2 330 0/+5.0
16.00 +0.4/+0.8 2.0 ±0.2 330 0/+5.0
16.00 3.0 ±0.25 330 0/+5.0
18.00 3.0 ±0.25 330 0/+5.0
20.00 3.0 ±0.25 330 0/+5.0
22.00 3 ±0.25 330 0/+5.0
24.00 4 ±0.30 330 0/+5.0
25.00 5 ±0.35 330 0/+5.0

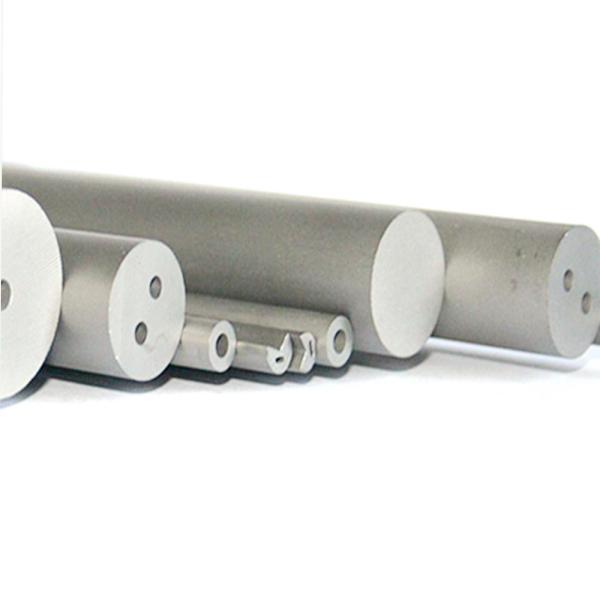

Regular size for two straight coolant holes carbide rods:

Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6

Outer Diameter mm TK mm Inner Diameter mm Deviation of holes
position≤(mm) a		 Length mm
OD Tol. TK Tol. ID Tol. Length Tol.
4.30 +0/+0.3 1.8 -0.4/0 0.800 ±0.1 0.15 330 0/+5.0
5.30 2.0 -0.4/0 0.800 ±0.1 0.20 330 0/+5.0
6.30 3.0 -0.5/0 1.000 ±0.15 0.20 330 0/+5.0
7.30 3.5 -0.5/0 1.000 ±0.15 0.20 330 0/+5.0
8.30 4.0 -0.6/0 1.000 ±0.15 0.20 330 0/+5.0
9.30 4.0 -0.6/0 1.400 ±0.15 0.20 330 0/+5.0
10.30 5.0 -0.6/0 1.400 ±0.15 0.20 330 0/+5.0
11.30 +0/+0.4 5.0 -0.6/0 1.400 ±0.15 0.28 330 0/+5.0
12.30 6.0 -0.6/0 1.750 ±0.15 0.30 330 0/+5.0
13.30 6.0 -0.6/0 1.750 ±0.15 0.34 330 0/+5.0
14.30 7.0 -0.6/0 1.750 ±0.15 0.37 330 0/+5.0
15.30 8.0 -0.6/0 2.000 ±0.2 0.37 330 0/+5.0
16.30 8.0 -0.6/0 2.000 ±0.2 0.40 330 0/+5.0
17.30 +0/+0.6 9.0 -0.6/0 2.000 ±0.2 0.47 330 0/+5.0
18.30 9.0 -0.6/0 2.000 ±0.2 0.50 330 0/+5.0
19.30 9.0 -0.6/0 2.000 ±0.2 0.50 330 0/+5.0
20.30 10.0 -0.8/0 2.500 ±0.25 0.50 330 0/+5.0

General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0 18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron


Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6

What we can provide

Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6

Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6

Sintered Tungsten Carbide Rod With Straight Hole Nano Grain Size H6
