HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes
HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes
HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes
HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes
Specifications
Brand Name :
TGC
Model Number :
Helical Coolant Rods
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Binder :
3%
ISO Grade :
K05
Diameter :
10.3mm
ID :
0.8mm
Length :
330mm
Surface Roughness :
Raw sintered blank
Circularity :
0.15mm
straightness :
0.1-0.3mm
Density :
15.25
Hardness HHV30 :
1860
T.R.S :
1800
Grain size :
fine
Description

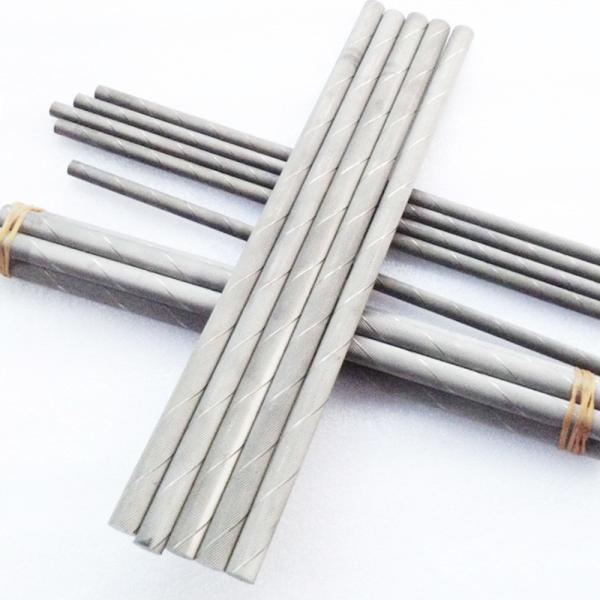

K05 with HRA 93.2 hardness wear resistance tungsten helical holes rods for diamond coating

ISO K05

Cobalt: 3%

Outer diameter: 10.30mm

Inner diameter: 0.80 +/-0.15

TK: 3.50mm

Pitch: 37.44mm

Length: 330mm +3mm

Surface roughness: Raw sintered Ra 6.3 or as required

Application: Special composition and process control give it excellent adhesion strength and wear resistance in diamond coating applications

Grade datasheet:

Binder Hardness T.R.S Density Grain size ISO
HRA HV10
3 93.2 1860 1800 15.25 fine K05

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

For more grades details, please kindly check the general datasheet in the following details:

Regular size for two helical coolant rods 40°:

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

Outer Diameter mm TK mm Inner Diameter mm Deviation of holes
position≤(mm) a		 Pitch mm
OD Tol. TK Tol. ID Tol. P Tol.
6.30 0/+0.3 1.9 -0.4/0 0.600 ±0.15 0.15 18.85 ±0.34
6.30 2.2 -0.4/0 0.500 ±0.15 0.15 22.45 ±0.42
8.30 2.7 -0.6/0 0.650 ±0.15 0.15 29.95 ±0.56
10.30 0/+0.3 3.5 -0.8/0 0.800 ±0.15 0.20 37.44 ±0.70
12.30 4.2 -0.8/0 0.900 ±0.15 0.30 44.93 ±0.84
14.30 4.7 -0.8/0 1.000 ±0.20 0.37 52.42 ±0.98
16.30 5.5 -0.8/0 1.200 ±0.20 0.40 59.9 ±1.12
18.30 0/+0.5 6.3 -0.8/0 1.400 ±0.20 0.50 67.39 ±1.26
20.30 7.1 -1.0/0 1.500 ±0.20 0.50 74.88 ±1.40

Regular size for three helical coolant rods 30°:

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

Outer Diameter mm TK mm Inner Diameter mm Deviation of holes
position≤(mm) a		 Pitch mm
OD Tol. TK Tol. ID Tol. P Tol.
6.30 +0/+2.5 2.9 -0.4/0 0.500 ±0.15 0.15 32.65 ±0.46
8.30 4.0 -0.4/0 0.700 ±0.15 0.15 45.53 ±0.62
9.30 5.1 -0.6/0 0.850 ±0.15 0.20 48.97 ±0.69
10.30 +0/+2.75 5.1 -0.6/0 0.850 ±0.15 0.20 54.41 ±0.77
12.30 6.3 -0.6/0 1.100 ±0.15 0.30 65.3 ±0.92
14.30 +0/+3.5 7.3 -0.8/0 1.400 ±0.20 0.40 76.18 ±1.08
15.30 7.8 -0.8/0 1.400 ±0.20 0.40 81.62 ±1.15
16.30 8.3 -0.8/0 1.600 ±0.20 0.40 87.06 ±1.23
18.30 9.5 -0.8/0 1.700 ±0.20 0.50 97.95 ±1.38
20.30 10.2 -0.8/0 1.900 ±0.25 0.50 108.83 ±1.54


General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0 18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron


Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

What we can provide

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

Product tags

welding tool kit

,

tungsten saw tips

,

tungsten welding tips
Send your message to this supplier
Send Now

HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

Ask Latest Price
Product Detail
Brand Name :
TGC
Model Number :
Helical Coolant Rods
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Contact Supplier
HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes
HRA 93.2 Tungsten Cutting Tools K05 Wear Resistance With Helical Holes

Zhuzhou TGC Cemented Carbide Co.,Ltd.

Site Member
4 Years
hunan, zhuzhou
Since 2013
Business Type :
Manufacturer, Distributor/Wholesaler, Exporter, Seller
Main Products :
Tungsten Carbide Rod, Carbide Rods With Chamfer, Cemented Carbide Milling Blanks
Total Annual :
1000000-5000000
Employee Number :
50~100
Certification Level :
Site Member
