K40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving Tool
K40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving Tool
K40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving Tool
K40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving Tool
Specifications
Brand Name :
OUQI
Model Number :
Carbide Tips
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K40
Diameter :
3mm
Leght :
40mm
Tolerance :
h6
Surface Roughness :
Ra 0.4
Circularity :
0.08
straightness :
0.05
Hardness :
HRA 91.9
T.R.S :
3800
Grain size :
Fine
Application :
Metal Engraving
Description

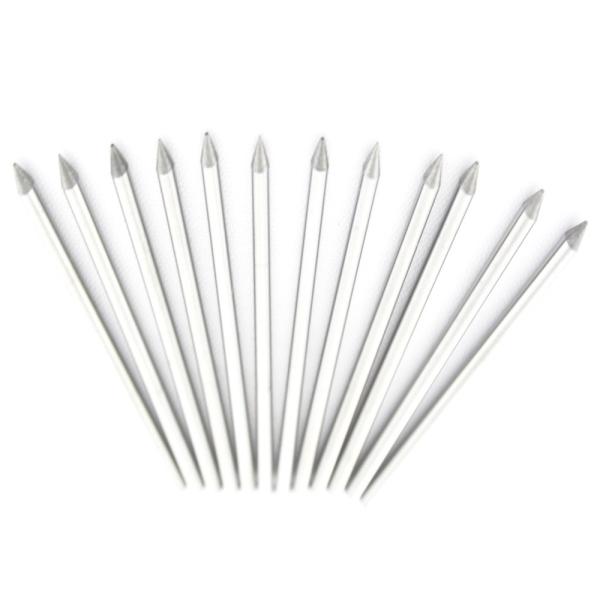

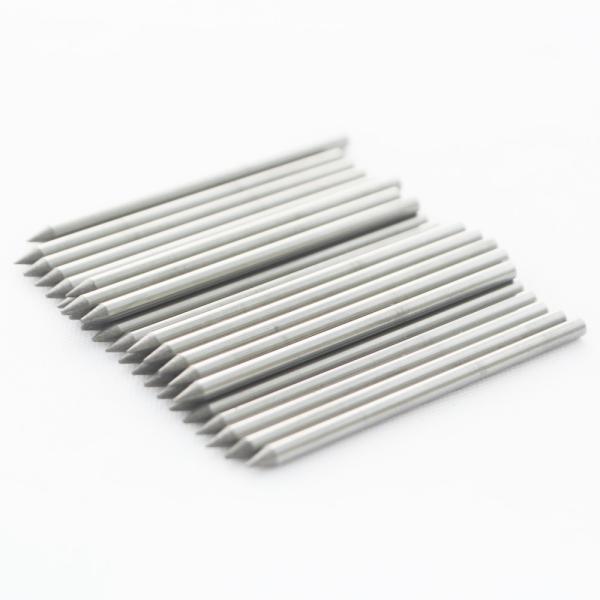

Cemented Carbide Engraving Needle With One Tip K40 Carbide Pins​

Cemented carbide has very high hardness and wears resistance, and the products are widely used in metal cutting, mechanical wear-resistant accessories, etc. High-quality carbide round rods have very high fracture toughness, so they are very suitable for making alloy needles for puncture, engraving application, etc.

K40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving ToolK40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving Tool

Advantages of OUQI carbide products:

With high hardness and wear/corrosion resistance, suitable for the manufacturing of various kinds of solid cemented carbide tools for the machining of heat-resistant alloy and Ti alloy.
--Dimensions: diameter from 1.6-20mm, length from 15-100mm;
--High fracture toughness up to 11 Kic;
--Finished ground with circularity 0.02;

Grades for tungsten carbide rods:

Grade ISO Code Grain size
μm		 Cobalt % Density
g/cm3		 Hardness T.R.S
HV30 HRA N/mm2 KPSI
YF06 K05‐K10 0.5 6.0 14.90 1850 93.5 3800 553.9
YL10A K10‐K20 0.8 8.0 14.65 1780 92.8 4200 609.5
YL10.2 K20‐K30 0.8 10.0 14.42 1600 91.5 4000 580
XF30 K30‐K40 0.6 12.0 14.10 1700 92.5 4000 580

Recommended Application

Grade Application
YF06 Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.
YL10A It is suitable for machining cast iron, aluminum alloys, etc. also for machining common steels.
It is recommended for the drilling of cast iron and aluminum alloys.
YL10.2 It is suitable for machining common steel, cast iron, stainless steel, heat‐resistant steel, nickel-based alloys, titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
XF30 It is suitable for machining titanium alloy, heat‐resistant alloys, stainless steel, hardened steel, grey cast iron, glass‐fiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.

K40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving ToolK40 Carbide Drill Blanks H6 Wear Resistance Carbide Engraving Tool
