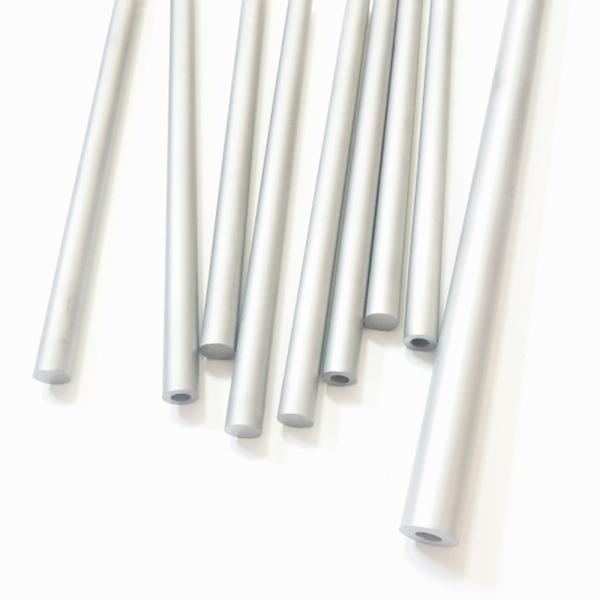

HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills
HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills
HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills
HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills
Specifications
Brand Name :
OUQI
Model Number :
Endmills blanks
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
12% Cobalt
ISO Grade :
K30-K50
Diameter :
10mm
Leght :
80mm
Tolerance :
h6/h5
Surface Roughness :
Ra 0.2
Circularity :
0.02
straightness :
0.02
Density :
14.12
Hardness HV30 :
92.5
T.R.S :
4200
Grain size :
0.4
Description

Cemented Carbide Milling BlanksHRA92.5 cemented carbide milling blanks for reamer making end mills

ISO Grain size Cobalt Density Hardness T.R.S k1C
Code μm % g/cm3 HRA N/mm2 Mpa.m1/2
K40-K50 0.4 12 14.12 92.5 4200 10.2


Application: Ultra-fine grain size, with good wear-resistant and toughness, especially suitable for finishing and processing alloy steel, aluminum alloy, titanium alloy etc. Suitable for making end mills and reamer.

Regular size for small drills:

HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills

Diameter mm Length mm Diameter mm Length mm
D Tolerance L Tolerance D Tolerance L Tolerance
1.60 +0/-0.006 20 0/+0.5 10.00 +0/-0.009 50 0/+0.5
2.35 30 0/+0.5 10.00 70 0/+0.5
2.35 45 0/+0.5 10.00 72 0/+0.5
3.00 60 0/+0.5 10.00 75 0/+0.5
4.00 +0/-0.008 40 0/+0.5 10.00 80 0/+0.5
4.00 46 0/+0.5 10.00 90 0/+0.5
4.00 50 0/+0.5 10.00 100 0/+0.5
4.00 60 0/+0.5 12.00 +0/-0.011 70 0/+0.5
4.00 75 0/+0.5 12.00 79 0/+0.5
4.00 100 0/+0.5 12.00 83 0/+0.5
5.00 50 0/+0.5 12.00 100 0/+0.5
5.00 60 0/+0.5 12.00 120 0/+0.5
5.00 100 0/+0.5 13.00 100 0/+0.5
6.00 40 0/+0.5 14.00 75 0/+0.5
6.00 50 0/+0.5 14.00 80 0/+0.5
6.00 58 0/+0.5 14.00 83 0/+0.5
6.00 60 0/+0.5 14.00 100 0/+0.5
6.00 67 0/+0.5 16.00 80 0/+0.5
6.00 75 0/+0.5 16.00 90 0/+0.5
6 100 0/+0.5 20.00 +0/-0.013 100 0/+0.5
8 +0/-0.009 50 0/+0.5
8 60 0/+0.5
8 63 0/+0.5
8 75 0/+0.5
8 90 0/+0.5
8 100 0/+0.5

General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0 18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron

General tolerance for the h5 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -4/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -5/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -6/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -8/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -9/0 18,1- 30,0 4,0 micron
30.0-50.0 -11/0 30,1- 50,0 5,0 micron

Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills

What we can provide

HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills

HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills

HRA92.5 Cemented Carbide Milling Blanks 12% Cobalt For Making End Mills
