YL10.2 K40 Tungsten Carbide End Mill Blanks HRA 92.2 For Aluminum Alloys
YL10.2 K40 Tungsten Carbide End Mill Blanks HRA 92.2 For Aluminum Alloys
YL10.2 K40 Tungsten Carbide End Mill Blanks HRA 92.2 For Aluminum Alloys
YL10.2 K40 Tungsten Carbide End Mill Blanks HRA 92.2 For Aluminum Alloys
Specifications
Brand Name :
OUQI
Model Number :
End mill blanks
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K40
Diameter :
16mm
Leght :
150mm
Tolerance :
h6
Surface Roughness :
Polish Ra0.2
Circularity :
0.05
straightness :
0.05
Hardness :
HRA 92.2
T.R.S :
3800
Grain size :
Fine
Application :
For Aluminum Alloys
Description

YL10.2 K40 Tungsten Carbide End Mill Blanks For Aluminum Alloys​

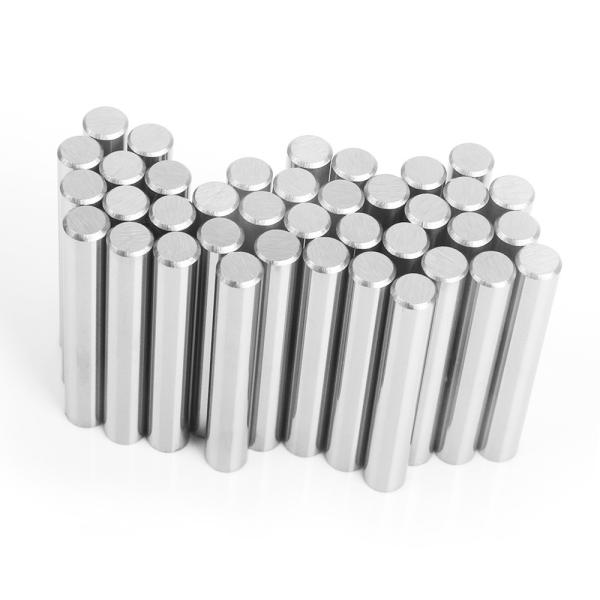

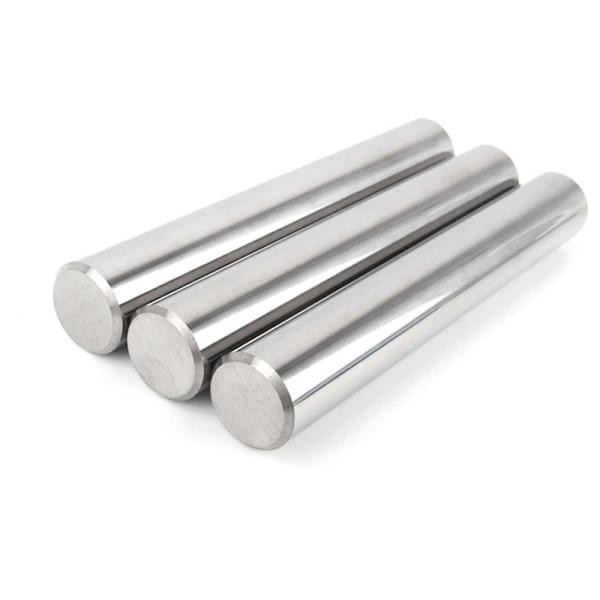

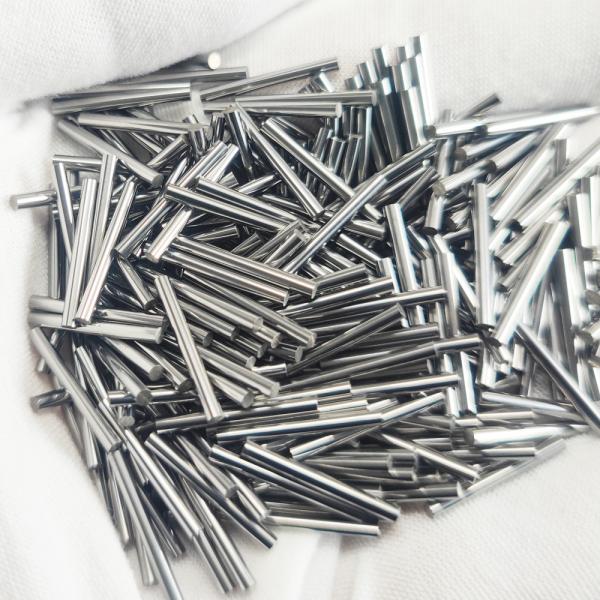

End mill blanks. Ground milling cutter blanks in various sizes. Precision-ground with excellent accuracy of dimension and form. With or without through-coolant and carbide grades adapted to the specific application.

Material YL10.2 grade is suitable for machining cast iron, aluminum alloys, etc. also for machining common steels.
YL10.2 K40 Tungsten Carbide End Mill Blanks HRA 92.2 For Aluminum AlloysYL10.2 K40 Tungsten Carbide End Mill Blanks HRA 92.2 For Aluminum AlloysYL10.2 K40 Tungsten Carbide End Mill Blanks HRA 92.2 For Aluminum Alloys

Grades for tungsten carbide rods:

Grade ISO Code Grain size
μm		 Cobalt % Density
g/cm3		 Hardness T.R.S
HV30 HRA N/mm2 KPSI
YF06 K05‐K10 0.5 6.0 14.90 1850 93.5 3800 553.9
YL10A K10‐K20 0.8 8.0 14.65 1780 92.8 4200 609.5
YL10.2 K20‐K30 0.8 10.0 14.42 1600 91.5 4000 580
XF30 K30‐K40 0.6 12.0 14.10 1700 92.5 4000 580

Recommended Application

Grade Application
YF06 Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.
YL10A It is suitable for machining cast iron, aluminum alloys, etc. also for machining common steels.
It is recommended for the drilling of cast iron and aluminum alloys.
YL10.2 It is suitable for machining common steel, cast iron, stainless steel, heat‐resistant steel, nickel-based alloys, titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
XF30 It is suitable for machining titanium alloy, heat‐resistant alloys, stainless steel, hardened steel, grey cast iron, glass‐fiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.
