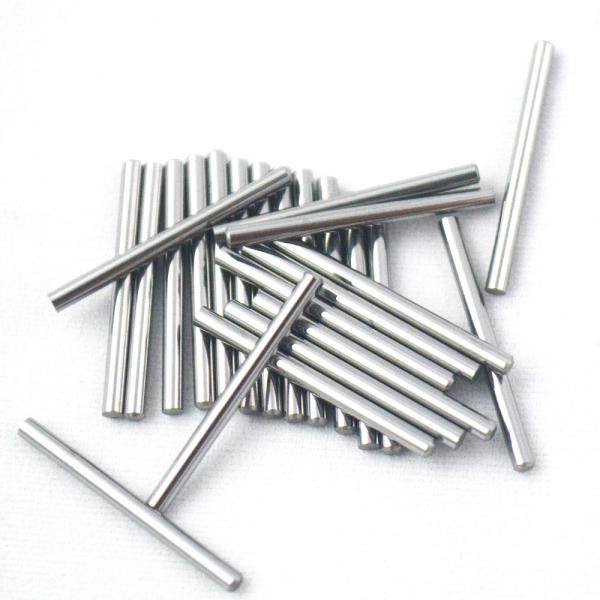

Fine Grain Cemented Carbide Milling Blanks Rods Ø4×40mm h6 h5 Tolerance
Fine Grain Cemented Carbide Milling Blanks Rods Ø4×40mm h6 h5 Tolerance
Specifications
Brand Name :
OUQI
Model Number :
Endmills blanks
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
YL10.2
ISO Grade :
K30-K40
Diameter :
4mm
Leght :
40mm
Tolerance :
h6/h5
Surface Roughness :
Ra 0.2
Circularity :
0.02
straightness :
0.02
Density :
14.44
Hardness HV30 :
92.2
T.R.S :
4200
Grain size :
Sub-Fine
Description

Ø4×40mm Fine Grain size Cemented carbide rods for endmills blank for medium speed processing

ISO
Grade		 Grain Cobalt Density Hardness T.R.S
um % g/cm3 HRA N/mm2
K30-K40 0.6 10 14.4 92.2 4100


Application: Medium-speed processing, strong versatility, suitable to process carbon steel, alloy steel, stainless steel, nickel-based alloy, titanium alloy, heat-resistant alloy steel, cast iron, etc.

Specification:

Diameter 4mm -0.006, length 50mm

Chamfer 0.5*45°

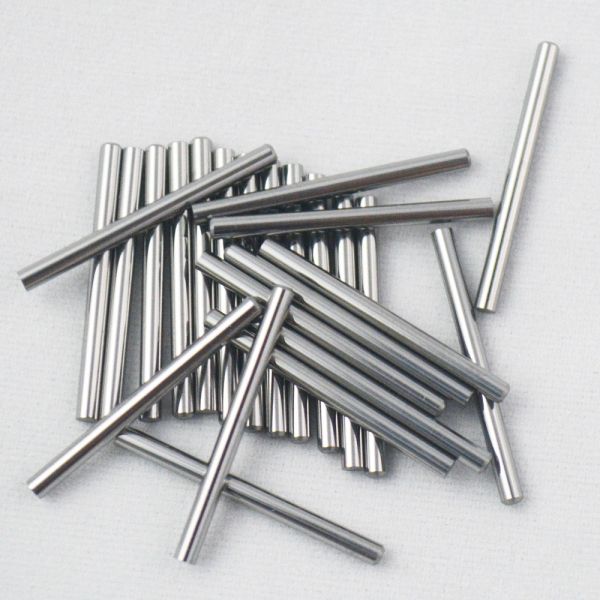

Fine Grain Cemented Carbide Milling Blanks Rods Ø4×40mm h6 h5 Tolerance

Regular size for small drills:

Fine Grain Cemented Carbide Milling Blanks Rods Ø4×40mm h6 h5 Tolerance

Diameter mm Length mm Diameter mm Length mm
D Tolerance L Tolerance D Tolerance L Tolerance
1.60 +0/-0.006 20 0/+0.5 10.00 +0/-0.009 50 0/+0.5
2.35 30 0/+0.5 10.00 70 0/+0.5
2.35 45 0/+0.5 10.00 72 0/+0.5
3.00 60 0/+0.5 10.00 75 0/+0.5
4.00 +0/-0.008 40 0/+0.5 10.00 80 0/+0.5
4.00 46 0/+0.5 10.00 90 0/+0.5
4.00 50 0/+0.5 10.00 100 0/+0.5
4.00 60 0/+0.5 12.00 +0/-0.011 70 0/+0.5
4.00 75 0/+0.5 12.00 79 0/+0.5
4.00 100 0/+0.5 12.00 83 0/+0.5
5.00 50 0/+0.5 12.00 100 0/+0.5
5.00 60 0/+0.5 12.00 120 0/+0.5
5.00 100 0/+0.5 13.00 100 0/+0.5
6.00 40 0/+0.5 14.00 75 0/+0.5
6.00 50 0/+0.5 14.00 80 0/+0.5
6.00 58 0/+0.5 14.00 83 0/+0.5
6.00 60 0/+0.5 14.00 100 0/+0.5
6.00 67 0/+0.5 16.00 80 0/+0.5
6.00 75 0/+0.5 16.00 90 0/+0.5
6 100 0/+0.5 20.00 +0/-0.013 100 0/+0.5
8 +0/-0.009 50 0/+0.5
8 60 0/+0.5
8 63 0/+0.5
8 75 0/+0.5
8 90 0/+0.5
8 100 0/+0.5

Tungsten carbide grades

ISO-Range Co (%) WC incl.
Doping (%)		 Density
(g/cm3)		 HV 30
(N/mm2)		 HRA T.R.S KIc* (Shetty)
(MNm-3/2)		 Application
K10 6 94 14.8 1900 93.8 > 3900 9 Unalloyed and hardened steels
Non-ferrous metals
Aluminium alloys
Cast iron
Composites (CFRP and GFRP)
K10 - K20 8 92 14.6 1710 92.5 > 4000 9.5 Unalloyed and hardened steels
Non-ferrous metals
Non-ferrous metals
Plastics
K20 - K30 9 91 14.3 1680 92.2 > 3900 9 High hardness materials
Aluminium alloys
Cast iron
Graphite
K30 - K40 10 90 14.5 1610 91.9 > 4200 10.5 Steels
Corrosion and heat resistant steels
Stainless steels
Non ferrous metals
Nickel based alloys
Aluminium alloys
K40 - K50 12 88 14.1 1680 92.3 > 4400 10 Steels
Corrosion and heat resistant steels
Stainless steels
Non ferrous metals
Titanium alloys
K40 - K50 13 87 13.9 1700 92.4 > 4000 9.5 Corrosion and heat resistant steels
Non ferrous metals
Nickel based alloys
Titanium alloys

General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0 18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron

General tolerance for the h5 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -4/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -5/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -6/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -8/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -9/0 18,1- 30,0 4,0 micron
30.0-50.0 -11/0 30,1- 50,0 5,0 micron

Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

What we can provide

Fine Grain Cemented Carbide Milling Blanks Rods Ø4×40mm h6 h5 Tolerance

Fine Grain Cemented Carbide Milling Blanks Rods Ø4×40mm h6 h5 Tolerance

Fine Grain Cemented Carbide Milling Blanks Rods Ø4×40mm h6 h5 Tolerance
