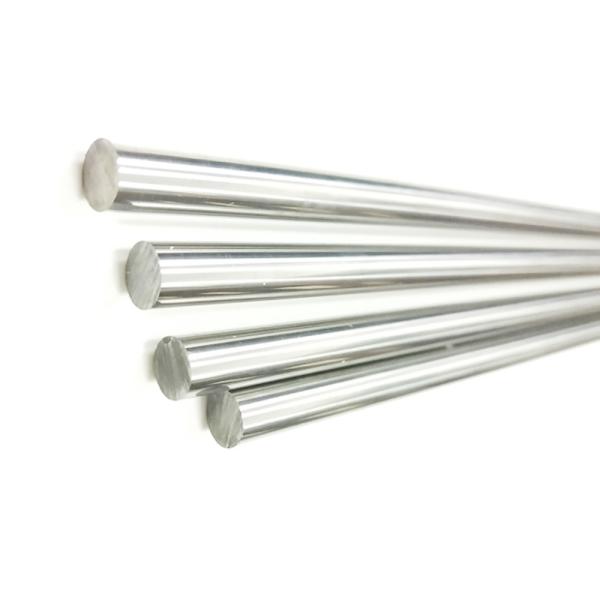

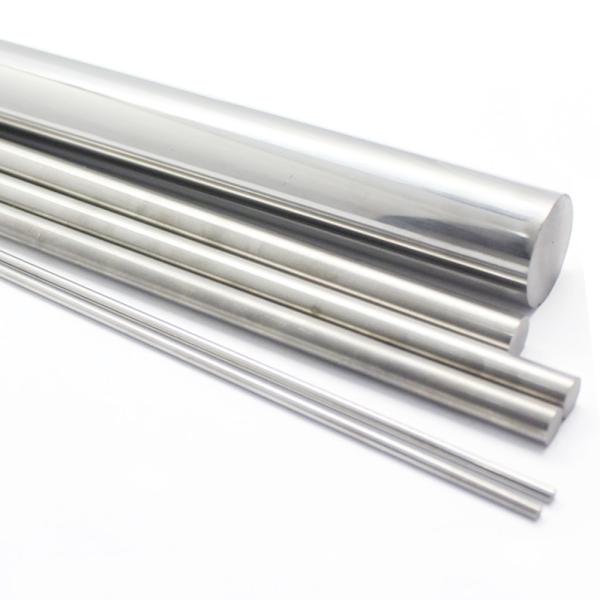

Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal
Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal
Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal
Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal
Specifications
Brand Name :
OUQI
Model Number :
Endmills blanks
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
6% Cobalt
ISO Grade :
K10
Diameter :
8mm
Leght :
50mm
Tolerance :
h6/h5
Surface Roughness :
Ra 0.2
Circularity :
0.02
straightness :
0.02
Density :
14.65
Hardness HV30 :
92.5
T.R.S :
3200
Grain size :
0.8
Description

Cemented carbide rods for end milling tools for cutting grey iron metal

ISO Grain size Cobalt Density Hardness T.R.S k1C
Code μm % g/cm3 HRA N/mm2 Mpa.m1/2
K20 0.8 8 14.65 92.5 3200 -


Application: Sub-fine grain size, for drills and taps, for machining Grey cast iron, nonferrous metal, with good wear resistance.

Regular size for small drills:

Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal

Diameter mm Length mm Diameter mm Length mm
D Tolerance L Tolerance D Tolerance L Tolerance
1.60 +0/-0.006 20 0/+0.5 10.00 +0/-0.009 50 0/+0.5
2.35 30 0/+0.5 10.00 70 0/+0.5
2.35 45 0/+0.5 10.00 72 0/+0.5
3.00 60 0/+0.5 10.00 75 0/+0.5
4.00 +0/-0.008 40 0/+0.5 10.00 80 0/+0.5
4.00 46 0/+0.5 10.00 90 0/+0.5
4.00 50 0/+0.5 10.00 100 0/+0.5
4.00 60 0/+0.5 12.00 +0/-0.011 70 0/+0.5
4.00 75 0/+0.5 12.00 79 0/+0.5
4.00 100 0/+0.5 12.00 83 0/+0.5
5.00 50 0/+0.5 12.00 100 0/+0.5
5.00 60 0/+0.5 12.00 120 0/+0.5
5.00 100 0/+0.5 13.00 100 0/+0.5
6.00 40 0/+0.5 14.00 75 0/+0.5
6.00 50 0/+0.5 14.00 80 0/+0.5
6.00 58 0/+0.5 14.00 83 0/+0.5
6.00 60 0/+0.5 14.00 100 0/+0.5
6.00 67 0/+0.5 16.00 80 0/+0.5
6.00 75 0/+0.5 16.00 90 0/+0.5
6 100 0/+0.5 20.00 +0/-0.013 100 0/+0.5
8 +0/-0.009 50 0/+0.5
8 60 0/+0.5
8 63 0/+0.5
8 75 0/+0.5
8 90 0/+0.5
8 100 0/+0.5

General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0 18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron

General tolerance for the h5 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -4/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -5/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -6/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -8/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -9/0 18,1- 30,0 4,0 micron
30.0-50.0 -11/0 30,1- 50,0 5,0 micron

Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal

What we can provide

Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal

Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal

Solid Cemented Carbide Cutting Tool Rods K10 Hardness 92.5 For Grey Iron Metal
