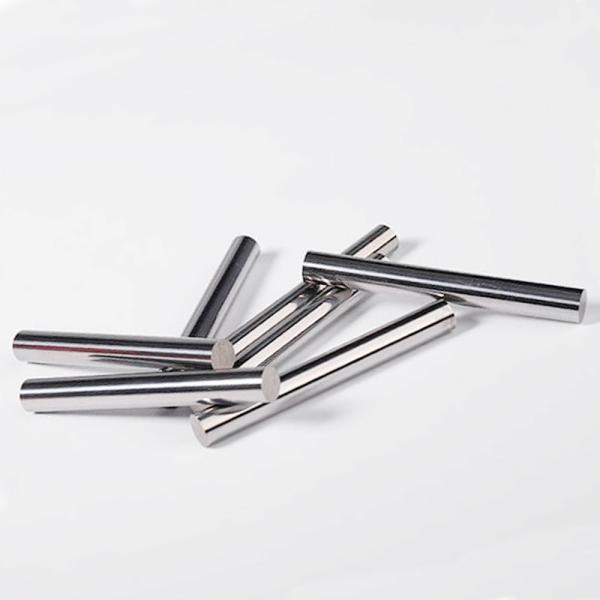

0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools
0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools
Specifications
Brand Name :
OUQI
Model Number :
Cut-to-length carbide rods
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K30/K40
Diameter :
OD12mm h6
Leght :
79mm
Tolerance :
h6/h5 or as required
Surface Roughness :
Ra 0.05
Circularity :
0.02-0.05
straightness :
0.02-0.05
Cobalt :
12%
Hardness :
HRA 92.6
T.R.S :
4200
Grain size :
0.4
Description

High-speed cutting tools with ground carbide rods with chamfer 0.4μm grain size

Grain Cobalt Density Hardness T.R.S Application
um % g/cm3 HRA N/mm3
0.4 12 14.05 92.6 4200 High-speed cutting, medium-speed feed, suitable for processing glass fiber materials, carbon steel, 304L stainless steel, nickel-based alloys, quenched steel, titanium-based alloys, composite materials, etc, suitable for HRC45-59 materials.

Specification:

ISO grade K40
Diameter: 20mm h6 tolerance -0.013mm

Length 100mm +0.5mm

Grain size: 0.4μm

Density: 14.05

0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools

Applications:

High-speed cutting, medium-speed feed, suitable for processing glass fiber materials, carbon steel, 304L stainless steel, nickel-based alloys, quenched steel, titanium-based alloys, composite materials, etc, suitable for HRC45-59 materials

Description:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes
  • 100% inspected before delivery
  • Fast delivery time, regular products can be shipped in 3 days.
  • Excellent grinding quality, Straightless could be 0.05 or 0.02.

0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools

Diameter mm Length mm Diameter mm Length mm
D Tolerance L Tolerance D Tolerance L Tolerance
1.60 +0/-0.006 20 0/+0.5 10.00 +0/-0.009 50 0/+0.5
2.35 30 0/+0.5 10.00 70 0/+0.5
2.35 45 0/+0.5 10.00 72 0/+0.5
3.00 60 0/+0.5 10.00 75 0/+0.5
4.00 +0/-0.008 40 0/+0.5 10.00 80 0/+0.5
4.00 46 0/+0.5 10.00 90 0/+0.5
4.00 50 0/+0.5 10.00 100 0/+0.5
4.00 60 0/+0.5 12.00 +0/-0.011 70 0/+0.5
4.00 75 0/+0.5 12.00 79 0/+0.5
4.00 100 0/+0.5 12.00 83 0/+0.5
5.00 50 0/+0.5 12.00 100 0/+0.5
5.00 60 0/+0.5 12.00 120 0/+0.5
5.00 100 0/+0.5 13.00 100 0/+0.5
6.00 40 0/+0.5 14.00 75 0/+0.5
6.00 50 0/+0.5 14.00 80 0/+0.5
6.00 58 0/+0.5 14.00 83 0/+0.5
6.00 60 0/+0.5 14.00 100 0/+0.5
6.00 67 0/+0.5 16.00 80 0/+0.5
6.00 75 0/+0.5 16.00 90 0/+0.5
6 100 0/+0.5 20.00 +0/-0.013 100 0/+0.5
8 +0/-0.009 50 0/+0.5
8 60 0/+0.5
8 63 0/+0.5
8 75 0/+0.5
8 90 0/+0.5
8 100 0/+0.5

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0 18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron

Grades for tungsten carbide rods:

0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools

What we can provide

0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools

0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools0.4μM Grain Size Carbide Rods With Chamfer K40 High Speed Cutting Tools
