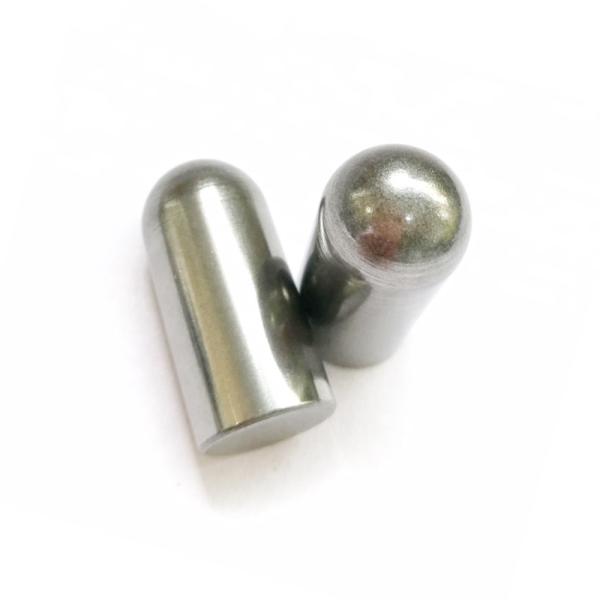

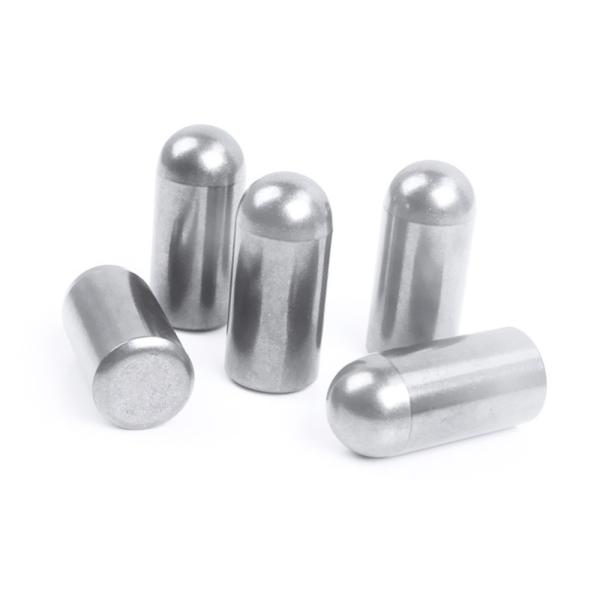

SR8 Tungsten Carbide Studs Diameter 16mm Length 55mm YG20 Carbide Mining Bits
SR8 Tungsten Carbide Studs Diameter 16mm Length 55mm YG20 Carbide Mining Bits
SR8 Tungsten Carbide Studs Diameter 16mm Length 55mm YG20 Carbide Mining Bits
SR8 Tungsten Carbide Studs Diameter 16mm Length 55mm YG20 Carbide Mining Bits
Specifications
Brand Name :
TGC
Model Number :
Cemented Carbide Studs
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
ISO Grade :
G30-G40
Cobalt :
20%
Hardness :
HRA 86.0~88.0
T.R.S :
2850~3150
Application :
HPGRs
Diameter :
16mm
Height :
55mm
Dome :
SR8 R2.0
Description

Diameter 16mm and length 55mm SR8 tungsten carbide studs YG20

HPGR or high-pressure grinding rolls have made extensive progress in non-ferrous metal mining. The technology is now widely seen as an alternative to primary milling, with a number of large units coming into use in recent years. Following these developments, HPGR-based circuit configurations are often the base case for certain ore types, such as very hard abrasive ores.

Product details:

Diameter: 16mm

Height: 55mm

Dome: SR8

Chamfer ExR: R2.0

Tungsten carbide grades

Cobalt 20%

Grain size Fine

Hardness: HRA 86.0~88.0

T.R.S: 2850~3150 N/mm2

Density: 13.40~13.60 g/cm3

Ra0.2 finished ground

Regular sizes for tungsten carbide stud:

Diameter Height Dome Chamfer E×R
20 40 SR10 2×R5.0
20 30 SR10 2×R5.0
20 35 SR10 2×R5.0
16 55 SR8 R2.0
16 50 SR8 R2.0
16 45 SR8 2×R5.0
16 40 SR8 2×R5.0
16 40 SR8 1×R2.0
16 40 SR8 1×45°
16 35 SR8 R2.0
16 20.5 SR8 R2.0
10 22 SR5 R1.0
10 22 SR5 R1.5
10 20 SR5 R1.5
8 20 SR4 R1.0

1. Various sizes for grinding roller carbide pin have been on to the High pressing

2. Grinding roller, its attachment on the high pressing

3. It can help the surface to use more extended time. This is the abrasive wear-resistant stud for the grinding roller.

Carbide grades for studs:

Grade Density Hardness T.R.S. Recommended Applications
YG8 14.8 88 2700 With good wear resistance, excellent anti-impact and anti-knocking properties, suitable for all kinds of carbide wear part, such as carbide bearing holder, sealing ring and valve core and seat and so on.
YG8C 14.8 88 2800
YG11 14.5 86.5 2800 With good wear resistance, excellent impact and shock resistance, suitable for all kinds of carbide wear part, such as carbide gear wheel, carbide farm cutter, mining crushing machinery and so on.
YG11C 14.5 86.5 2900
YG15C 14 85 3000 With good wear resistance, excellent impact and shock resistance, suitable for all kinds of wear part.

SR8 Tungsten Carbide Studs Diameter 16mm Length 55mm YG20 Carbide Mining Bits

SR8 Tungsten Carbide Studs Diameter 16mm Length 55mm YG20 Carbide Mining Bits
