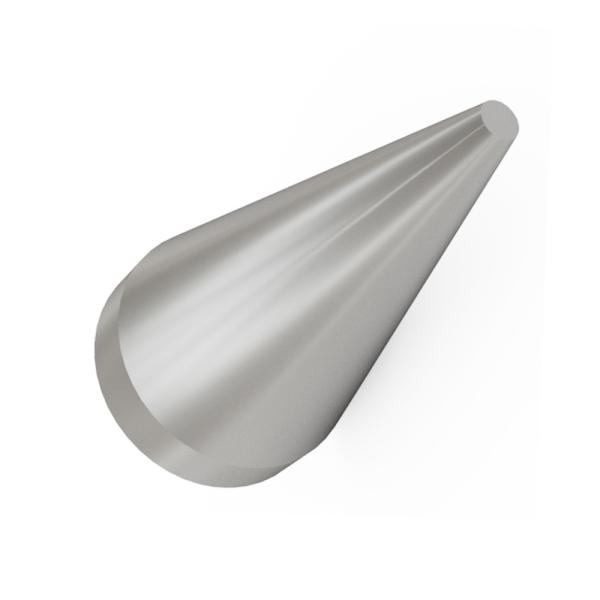

BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining
BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining
BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining
BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining
Specifications
Brand Name :
TGC
Model Number :
Carbide burrs blank
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
ISO Grade :
K10
Harness :
HRA 91
T.R.S :
2000
TYPE :
BSM-6
OD :
5/8"
Length :
1-1/8"
Application :
Brass/Allunimun
Type :
BSM-6 Cone burrs
Description

BSM-6 Cone Tungsten Carbide Burrs Blank For Brass Aluminum Machining​

General specifications:
Diameter: 5/8"
Length: 1-1/8"
Carbide burrs type: BSM-6 Cone burrs

Carbide grade datasheet:

ISO K10

Carbide grade: 6% Cobalt,

hardness HRA 91

T.R.S 2000

Application: Brass/Aluminum

BSM-6 tungsten carbide burrs, the diameter from 1/4" to 5/8" and the length from 5/8" to 1- 1/8". Carbide grade YG6 (6% cobalt) is suitable for machining brass/Aluminum.

Regular sizes for BSM carbide burrs

BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining

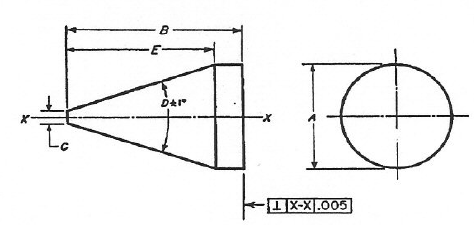

DESIGNATION NOMINAL ACTUAL NOMINAL ACTUAL C Degrees Ref.
BSM-1 1/4 0.265±0.005 5/8 0.635±0.010 0.065±0.005 22 0.514
BSM-4 3/8 0.390±0.005 3/4 0.760±0.010 0.073±0.005 28 0.636
BSM-5 1/2 0.515±0.005 1 1 .010±0.010 0.073±0.005 28 0.886
BSM-6 5/8 0.640±0.005 1 -1/8 1.141±0.015 0.080±0.005 31 1.010

General Carbide grades

Cobalt 6%
Hardness 90-91 HRA
Density 14.85-14.95 g/cm3
Grain size 1.2-3.0μm

Tungsten carbide burrs can be used with both electrically-powered and pneumatically-powered hand-held tools to cut the most diverse types of material, such as aluminum, brass, titanium alloys, cast iron, copper, zinc alloys, bronze, nickel, various plastics, alloy steels, etc. They can be used on a wide range of pneumatic, electric and flexible drive tools.

Description of our carbide burrs

  • Effective freehand stock removal
  • Weld preparation and removal (no contamination)
  • Dressing and fettling
  • Long lifetime
  • High safety during working

BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining

What we can provide


BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining

BSM-6 Cone Tungsten Carbide Burr Blank For Brass Aluminum Machining
