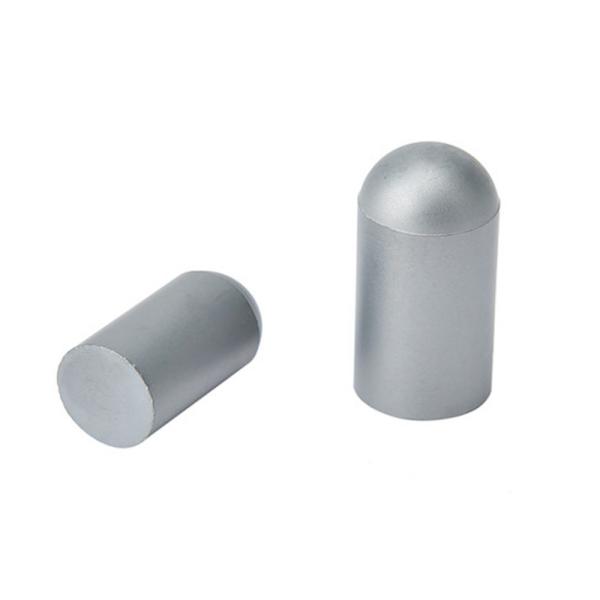

6% Cobalt K10 Tungsten Carbide Burr Blank BSC HRA 91 For Metal Brass
6% Cobalt K10 Tungsten Carbide Burr Blank BSC HRA 91 For Metal Brass
Specifications
Brand Name :
TGC
Model Number :
Carbide burrs blank
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
ISO Grade :
K10
TYPE :
BSC
OD :
5/16"
Length :
3/4"
Delivery conditions :
Raw sintered
Hardness HRA :
90-91
Description

K10 With 6% Cobalt For Brass BSC-2 Tungsten Carbide Burr Blank HRA 91​

Dimension:
Diameter: 5/16"
Length: 3/4"
Carbide burrs type: BSC

Regular sizes for BSC carbide burrs

6% Cobalt K10 Tungsten Carbide Burr Blank BSC HRA 91 For Metal Brass

BLANK DESIGNATION A B R
NOMINAL ACTUAL NOMINAL ACTUAL
* BSC-53x 9/32 3/16 0.205 ±0.005 9/32 0.281±0.010 0.103
BSC-51 1/4 0.265±0.005 1/2 0.500±0.010 0.133
*BSC-51x1 1/4 0.265±0.005 　 1.000±0.010 0.133
BSC-2 5/16 0.327±0.005 3/4 0.750±0.010 0.164
*BSC-2x1 5/1 6 0.327±0. 005 1 1 .000±0.010 0.164
BSC-3 3/8 0.390±0.005 3/4 0.750±0.010 0.195
BSC-3x1 3/8 0.390±0.005 1 1.000±0.010 0.195
BSC-3x1-1/2 3/8 0.390±0.005 1-1/2 .1. 500 7±0.010 0.1 95
BSC-4 7/1 6 0.453±0.005 1 1.000±0.010 0.227
BSC-5 1/2 0.515±0.005 1 1.000±0.010 0.258
+ BSCM-10 10mm 10.1mm +0.3/-0.0 20mm 20. 1mm +0.41-0.0 5mm
BSC-6 5/8 0.640±0.005 1 1.000±0.010 0.320
+ BSCM-12 12mm 12. 1mm +0.3/-0.0 25mm 25.1mm: +0.41-0.0 6mm
BSC-7 3/4 0.767 ±0.006 1 1.000±0.010 0.384
* BSC-7x1-1/2 3/4 0.767±0.006 1-1/2 1.500±0.010 0.384
BSC-8 7/8 0.892±0.006 1 1.000±0.010 0.446
* BSC-9 1 1.019±0.007 1 1.000±0.010 0.510


General Carbide grades

Cobalt 6%
Hardness 90-91 HRA
Density 14.85-14.95 g/cm3
Grain size 1.2-3.0μm

Tungsten carbide burrs can be used with both electrically-powered and pneumatically-powered hand-held tools to cut the most diverse types of material, such as aluminum, brass, titanium alloys, cast iron, copper, zinc alloys, bronze, nickel, various plastics, alloy steels, etc. They can be used on a wide range of pneumatic, electric and flexible drive tools.

Description of our carbide burrs

  • Effective freehand stock removal
  • Weld preparation and removal (no contamination)
  • Dressing and fettling
  • Long lifetime
  • High safety during working

6% Cobalt K10 Tungsten Carbide Burr Blank BSC HRA 91 For Metal Brass

What we can provide


6% Cobalt K10 Tungsten Carbide Burr Blank BSC HRA 91 For Metal Brass

6% Cobalt K10 Tungsten Carbide Burr Blank BSC HRA 91 For Metal Brass
