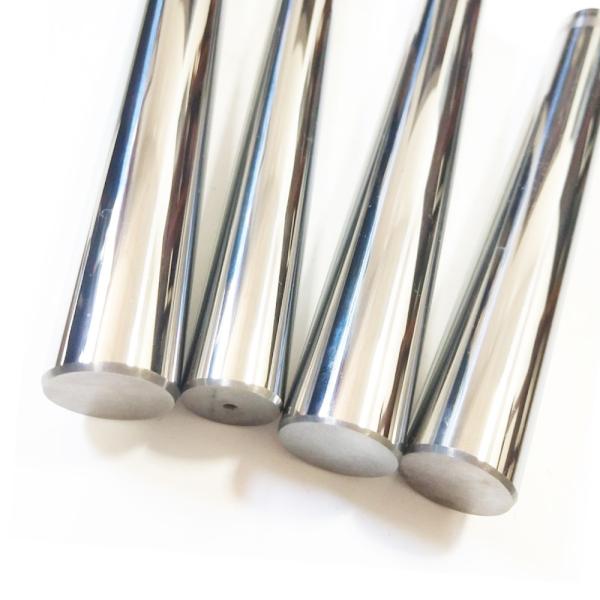

Fine Grain Size Solid Tungsten Carbide Rod Round Bar K30 - K40 Ø12mm 160mm
Fine Grain Size Solid Tungsten Carbide Rod Round Bar K30 - K40 Ø12mm 160mm
Specifications
Brand Name :
OUQI
Model Number :
Cemented Carbide Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
ISO Grade :
K30-K40
Diameter :
D3-D32
Leght :
L16mm-330mm
Surface Roughness :
Ra 0.2
Circularity :
0.05
straightness :
0.05
Hardness :
HRA 91.8
T.R.S :
3800
Grain size :
Fine
Description

Fine Grain Size Ø12mm 160mm Long End Mill Blanks Finished Ground

Specification:

OD Ø12mm

length 160mm.

Application:

Corrosion Resistance WC solid tungsten carbide plunger high precision cemented carbide rod. Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.

Our advantage:

  • Constantly excellent WC powder produced by our own factory.
  • Spray drying tower and HIP sintering furnace
  • Cryogenic treatment to remove the internal stress
  • General h6 rods and h5 or h4 as required
  • Straightness 0.01-0.05
  • Circularity 0.01-0.05
  • General Roughness Ra 0.4, and Ra 0.2 or Ra 0.05 as required.

Grades for tungsten carbide rods:

Grade ISO Code Grain size
μm		 Cobalt % Density
g/cm3		 Hardness T.R.S
HV30 HRA N/mm2 KPSI
YF06 K05‐K10 0.5 6.0 14.90 1850 93.5 3800 553.9
YL10A K10‐K20 0.8 8.0 14.65 1780 92.8 4200 609.5
YL10.2 K20‐K30 0.8 10.0 14.42 1600 91.5 4000 580
XF30 K30‐K40 0.6 12.0 14.10 1700 92.5 4000 580

Recommended Application

Grade Application
YF06 Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.
YL10A It is suitable for machining cast iron, aluminum alloys, etc., and common steels.
It is recommended for the drilling of cast iron and aluminum alloys.
YL10.2 It is suitable for machining common steel, cast iron, stainless steel, heat‐resistant steel, nickel-based alloys, titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
XF30 It is suitable for machining titanium alloy, heat‐resistant alloys, stainless steel, hardened steel, grey cast iron, glass‐fiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.

General tolerance for the h5 finished ground solid carbide rods
Diameter Tolerance μm Length Tolerance Straightness Tolerance Circularity Tolerances
＜3.0 -4/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -5/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -6/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -8/0 ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -9/0 18,1- 30,0 4,0 micron
30.0-50.0 -11/0 30,1- 50,0 5,0 micron

Fine Grain Size Solid Tungsten Carbide Rod Round Bar K30 - K40 Ø12mm 160mmFine Grain Size Solid Tungsten Carbide Rod Round Bar K30 - K40 Ø12mm 160mm
