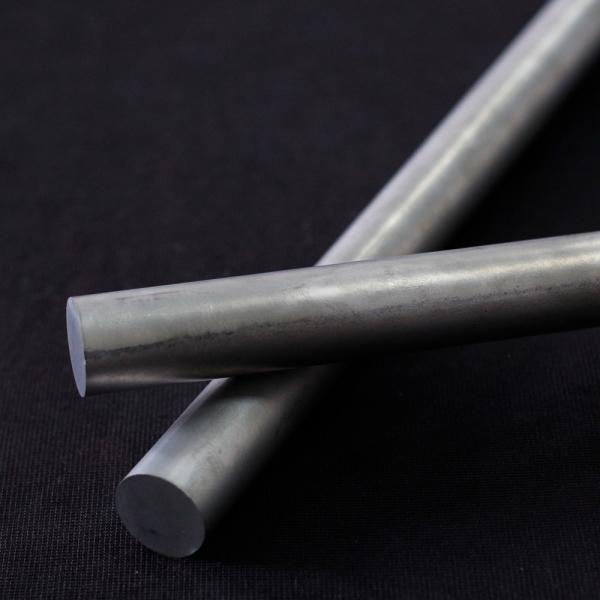

OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools
OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools
OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools
OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools
Specifications
Brand Name :
OUQI
Model Number :
Unground Carbide Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K40/K50
Diameter :
D24.5mm
Leght :
330mm
Tolerance :
Length +5mm, OD +0.5mm
Surface Roughness :
Ra 6.3
Circularity :
0.2-0.5
straightness :
0.2-0.5
Cobalt :
10%
Hardness :
HRA 92.6
T.R.S :
4100-4200
Grain size :
0.4
Description

OD24.5mm K50 unground carbide rods for high-speed cutting tools

ISO
Grade		 Grain Cobalt Density Hardness T.R.S Application
um % g/cm3 HRA N/mm2
K30-K50 0.4 12 14.05 92.6 4200 High-speed cutting, medium-speed feed, suitable for processing glass fiber materials, carbon steel, 304L stainless steel, nickel-based alloys, quenched steel, titanium-based alloys, composite materials, etc, suitable for HRC45-59 materials.

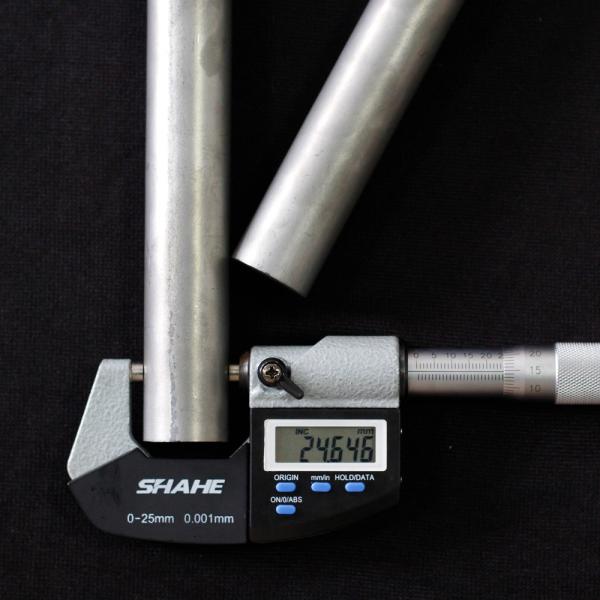

Unground Diameter: 24.5mm +0.5
Specification:

Length 330mm +5mm or as required

ISO grade K30/K50

Grain size: 0.4μm

Density: 14.05

Applications:

High-speed cutting, medium-speed feed, suitable for processing glass fiber materials, carbon steel, 304L stainless steel, nickel-based alloys, quenched steel, titanium-based alloys, composite materials, etc, suitable for HRC45-59 materials

OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools

General tolerance for the raw sintered solid carbide rods
Diameter Tolerance Length Tolerance Straightness Tolerance
0,5- 3,5 +0,25/+0,35 ＜100.0 +0.5/+1.0 0,6-4 0,10
4,0- 6,0 +0,25/+0,40 100.0-165.0 +1.0/+2.5 4,5-8 0,12
6,5-12,0 +0,30/+0,45 165.0-335.0 +1.0/+6.0 8,5-12,0 0,15
12,5-16,0 +0,35/+0,50 12,5 - 20 0,20
16,5- 22,0 +0,40/+0,55 ≥20,5 0,24
22,5-45,0 +0,45/+0,60

Description:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes
  • 100% inspected before delivery
  • Fast delivery time, regular products can be shipped in 3 days.
  • Excellent grinding quality, Straightless could be 0.05 or 0.02.

OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools

Diameter mm Length mm Diameter mm Length mm
D Tolerance Length Tol. D Tolerance Length Tol.
1.16 -0/+0.15 330 0/+0.5 16.20 -0/+0.45 330 0/+0.5
1.65 330 0/+0.5 17.20 330 0/+0.5
1.80 330 0/+0.5 18.20 330 0/+0.5
2.20 -0/+0.20 330 0/+0.5 19.20 330 0/+0.5
2.70 330 0/+0.5 20.20 330 0/+0.5
3.25 330 0/+0.5 21.20 -0/+0.55 330 0/+0.5
3.70 330 0/+0.5 22.20 330 0/+0.5
4.20 330 0/+0.5 23.20 330 0/+0.5
4.70 330 0/+0.5 24.2 330 0/+0.5
5.20 -0/+0.25 330 0/+0.5 25.2 -0/+0.65 330 0/+0.5
5.70 330 0/+0.5 26.2 330 0/+0.5
6.20 330 0/+0.5 28.2 330 0/+0.5
6.70 330 0/+0.5 30.2 330 0/+0.5
7.20 -0/+0.35 330 0/+0.5 32.2 330 0/+0.5
7.70 330 0/+0.5
8.20 330 0/+0.5
8.70 330 0/+0.5
9.20 330 0/+0.5
9.70 330 0/+0.5
10.20 330 0/+0.5
10.70 330 0/+0.5
11.20 330 0/+0.5
11.70 330 0/+0.5
12.20 330 0/+0.5
12.70 330 0/+0.5
13.20 330 0/+0.5
13.70 330 0/+0.5
14.20 330 0/+0.5
14.70 330 0/+0.5
15.20 330 0/+0.5
15.70 330 0/+0.5

Grades for tungsten carbide rods:

OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools

OD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting ToolsOD 24.5mm K50 Unground Carbide Rods Round Stock For High Speed Cutting Tools
