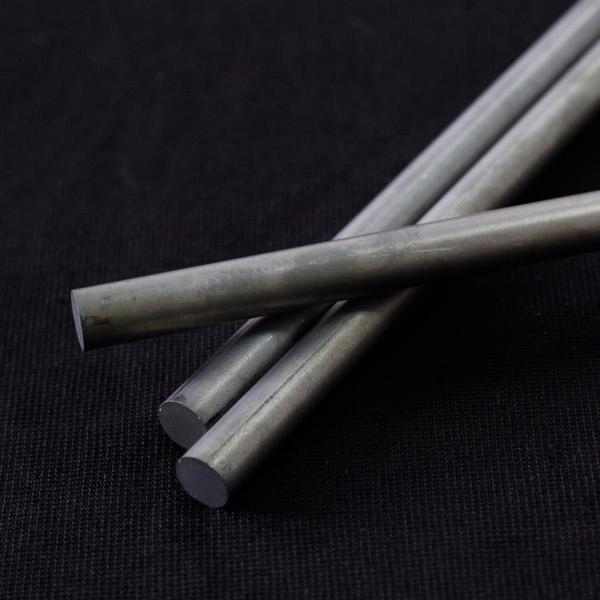

WC Co Raw Sintered Carbide Solid Rod Cemented For Making Cutting Tools
WC Co Raw Sintered Carbide Solid Rod Cemented For Making Cutting Tools
WC Co Raw Sintered Carbide Solid Rod Cemented For Making Cutting Tools
WC Co Raw Sintered Carbide Solid Rod Cemented For Making Cutting Tools
Specifications
Brand Name :
OUQI
Model Number :
Unground Carbide Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K10-K50
Diameter :
D11.3mm
Leght :
330mm
Tolerance :
Length +5mm, OD +0.5mm
Surface Roughness :
Ra 6.3
Circularity :
0.2-0.5
straightness :
0.2-0.5
Cobalt :
3%/6%/8%/10%12%/15%
Hardness :
HRA 88-HRA93
T.R.S :
2800-4200
Grain size :
Middle/Fine
Description

WC-Co Carbide Rods Raw Sintered Cemented Carbide Rods For Making Cutting Tools

Specification:

Diameter: 11.3mm +0.4

Length 330mm +5mm

WC Co Raw Sintered Carbide Solid Rod Cemented For Making Cutting Tools

Recommend application:

For the cutting of the timber such as shaving board, laminated board, density board and compound material etc

ISO Grain size Cobalt Density Hardness T.R.S k1C Applications
Code μm % g/cm3 HRA N/mm2 Mpa.m1/2
K01 0.5 3 15.1 94.5 2200 - For the cutting of the timber such as shaving board, laminated board, density board and compound material etc.

Description:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes
  • 100% inspected before delivery
  • Fast delivery time
  • Excellent grinding quality.

WC Co Raw Sintered Carbide Solid Rod Cemented For Making Cutting Tools

Diameter mm Length mm Diameter mm Length mm
D Tolerance Length Tol. D Tolerance Length Tol.
1.16 -0/+0.15 330 0/+0.5 16.20 -0/+0.45 330 0/+0.5
1.65 330 0/+0.5 17.20 330 0/+0.5
1.80 330 0/+0.5 18.20 330 0/+0.5
2.20 -0/+0.20 330 0/+0.5 19.20 330 0/+0.5
2.70 330 0/+0.5 20.20 330 0/+0.5
3.25 330 0/+0.5 21.20 -0/+0.55 330 0/+0.5
3.70 330 0/+0.5 22.20 330 0/+0.5
4.20 330 0/+0.5 23.20 330 0/+0.5
4.70 330 0/+0.5 24.2 330 0/+0.5
5.20 -0/+0.25 330 0/+0.5 25.2 -0/+0.65 330 0/+0.5
5.70 330 0/+0.5 26.2 330 0/+0.5
6.20 330 0/+0.5 28.2 330 0/+0.5
6.70 330 0/+0.5 30.2 330 0/+0.5
7.20 -0/+0.35 330 0/+0.5 32.2 330 0/+0.5
7.70 330 0/+0.5
8.20 330 0/+0.5
8.70 330 0/+0.5
9.20 330 0/+0.5
9.70 330 0/+0.5
10.20 330 0/+0.5
10.70 330 0/+0.5
11.20 330 0/+0.5
11.70 330 0/+0.5
12.20 330 0/+0.5
12.70 330 0/+0.5
13.20 330 0/+0.5
13.70 330 0/+0.5
14.20 330 0/+0.5
14.70 330 0/+0.5
15.20 330 0/+0.5
15.70 330 0/+0.5

Grades for tungsten carbide rods:

WC Co Raw Sintered Carbide Solid Rod Cemented For Making Cutting Tools
