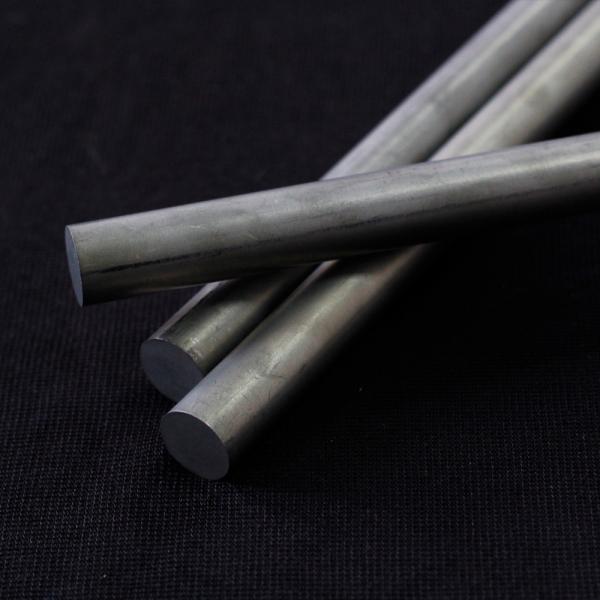

Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel
Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel
Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel
Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel
Specifications
Brand Name :
OUQI
Model Number :
Unground Carbide Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K40
Diameter :
D15.4mm
Leght :
330mm
Tolerance :
Length +5mm, OD +0.5mm
Surface Roughness :
Ra 6.3
Circularity :
0.2-0.5
straightness :
0.2-0.5
Cobalt :
9%
Hardness :
HRA 91.8
T.R.S :
3300
Grain size :
0.8
Description

K40 fine grain size Unground carbide rods for alloy steel end mills blanks

ISO Grain size Cobalt Density Hardness T.R.S k1C Applications
Code μm % g/cm3 HRA N/mm2 Mpa.m1/2
K40 0.8 10 14.45 91.8 3800 10.5 Sub-fine grain size, processing by medium speed, good general performance, drill bits and end mills are recommended, suitable for cutting ordinary alloy steel, aluminum alloy, heat resistant alloy, cast iron etc.


Specification:

Unground Diameter: 15.3mm +0.5

Length 330mm +5mm or as required

ISO grade K40

Grain size: 0.8μm

Applications:

Sub-fine grain size, processing by medium speed, good general performance, drill bits and end mills are recommended, suitable for cutting ordinary alloy steel, aluminum alloy, heat resistant alloy, cast iron etc

Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel

General tolerance for the raw sintered solid carbide rods
Diameter Tolerance Length Tolerance Straightness Tolerance
0,5- 3,5 +0,25/+0,35 ＜100.0 +0.5/+1.0 0,6-4 0,10
4,0- 6,0 +0,25/+0,40 100.0-165.0 +1.0/+2.5 4,5-8 0,12
6,5-12,0 +0,30/+0,45 165.0-335.0 +1.0/+6.0 8,5-12,0 0,15
12,5-16,0 +0,35/+0,50 12,5 - 20 0,20
16,5- 22,0 +0,40/+0,55 ≥20,5 0,24
22,5-45,0 +0,45/+0,60

Description:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes
  • 100% inspected before delivery
  • Fast delivery time, regular products can be shipped in 3 days.
  • Excellent grinding quality, Straightless could be 0.05 or 0.02.

Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel

Diameter mm Length mm Diameter mm Length mm
D Tolerance Length Tol. D Tolerance Length Tol.
1.16 -0/+0.15 330 0/+0.5 16.20 -0/+0.45 330 0/+0.5
1.65 330 0/+0.5 17.20 330 0/+0.5
1.80 330 0/+0.5 18.20 330 0/+0.5
2.20 -0/+0.20 330 0/+0.5 19.20 330 0/+0.5
2.70 330 0/+0.5 20.20 330 0/+0.5
3.25 330 0/+0.5 21.20 -0/+0.55 330 0/+0.5
3.70 330 0/+0.5 22.20 330 0/+0.5
4.20 330 0/+0.5 23.20 330 0/+0.5
4.70 330 0/+0.5 24.2 330 0/+0.5
5.20 -0/+0.25 330 0/+0.5 25.2 -0/+0.65 330 0/+0.5
5.70 330 0/+0.5 26.2 330 0/+0.5
6.20 330 0/+0.5 28.2 330 0/+0.5
6.70 330 0/+0.5 30.2 330 0/+0.5
7.20 -0/+0.35 330 0/+0.5 32.2 330 0/+0.5
7.70 330 0/+0.5
8.20 330 0/+0.5
8.70 330 0/+0.5
9.20 330 0/+0.5
9.70 330 0/+0.5
10.20 330 0/+0.5
10.70 330 0/+0.5
11.20 330 0/+0.5
11.70 330 0/+0.5
12.20 330 0/+0.5
12.70 330 0/+0.5
13.20 330 0/+0.5
13.70 330 0/+0.5
14.20 330 0/+0.5
14.70 330 0/+0.5
15.20 330 0/+0.5
15.70 330 0/+0.5

Grades for tungsten carbide rods:

Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel

Fine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy SteelFine Grain Size Unground Carbide Rods K40 End Mills Blanks For Alloy Steel
