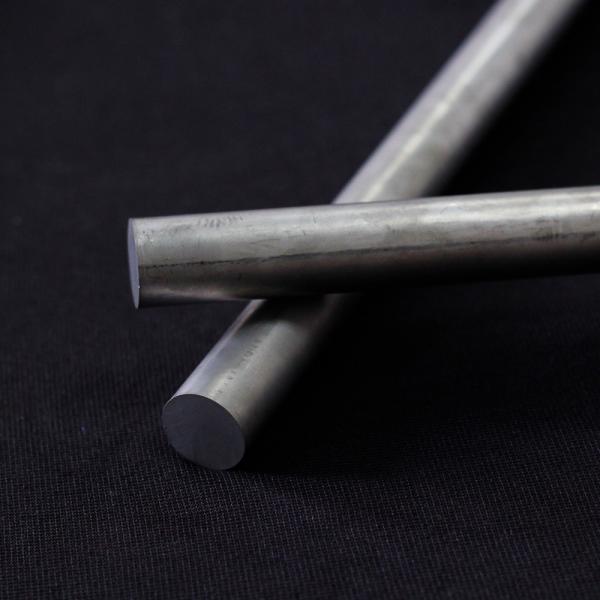

Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size
Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size
Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size
Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size
Specifications
Brand Name :
OUQI
Model Number :
Unground Carbide Rods
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in 3 DAYS
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K30/K40
Diameter :
D21.5mm
Leght :
330mm
Tolerance :
Length +5mm, OD +0.5mm
Surface Roughness :
Ra 6.3
Circularity :
0.2-0.5
straightness :
0.2-0.5
Cobalt :
10-12%
Hardness :
92-92.5
T.R.S :
3800-4000
Grain size :
0.6-0.8
Description

OD21.5mm Ultrafine grain size Unground carbide rod for Titanium alloy

ISO
Grade		 Grain Cobalt Density Hardness T.R.S Application
um % g/cm3 HRA N/mm2
K30-K40 0.6 10-12 14.1-14.2 92-92.5 3800-4000 Ultrafine grain size, high cobalt, good hardness and toughness, used for making endmill and reamer, especially suitable for cutting steel, aluminum alloy, and titanium.

Specification:
Unground Diameter: 21.5mm +0.5

Length 330mm +5mm or as required

ISO grade K30/K40

Grain size: 0.6μm

Density: 14.1-14.2

Applications:

Ultrafine grain size, high cobalt, good hardness and toughness, used for making endmill and reamer, especially suitable for cutting steel, aluminum alloy, and titanium.

Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size

General tolerance for the raw sintered solid carbide rods
Diameter Tolerance Length Tolerance Straightness Tolerance
0,5- 3,5 +0,25/+0,35 ＜100.0 +0.5/+1.0 0,6-4 0,10
4,0- 6,0 +0,25/+0,40 100.0-165.0 +1.0/+2.5 4,5-8 0,12
6,5-12,0 +0,30/+0,45 165.0-335.0 +1.0/+6.0 8,5-12,0 0,15
12,5-16,0 +0,35/+0,50 12,5 - 20 0,20
16,5- 22,0 +0,40/+0,55 ≥20,5 0,24
22,5-45,0 +0,45/+0,60

Description:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes
  • 100% inspected before delivery
  • Fast delivery time, regular products can be shipped in 3 days.
  • Excellent grinding quality, Straightless could be 0.05 or 0.02.

Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size

Diameter mm Length mm Diameter mm Length mm
D Tolerance Length Tol. D Tolerance Length Tol.
1.16 -0/+0.15 330 0/+0.5 16.20 -0/+0.45 330 0/+0.5
1.65 330 0/+0.5 17.20 330 0/+0.5
1.80 330 0/+0.5 18.20 330 0/+0.5
2.20 -0/+0.20 330 0/+0.5 19.20 330 0/+0.5
2.70 330 0/+0.5 20.20 330 0/+0.5
3.25 330 0/+0.5 21.20 -0/+0.55 330 0/+0.5
3.70 330 0/+0.5 22.20 330 0/+0.5
4.20 330 0/+0.5 23.20 330 0/+0.5
4.70 330 0/+0.5 24.2 330 0/+0.5
5.20 -0/+0.25 330 0/+0.5 25.2 -0/+0.65 330 0/+0.5
5.70 330 0/+0.5 26.2 330 0/+0.5
6.20 330 0/+0.5 28.2 330 0/+0.5
6.70 330 0/+0.5 30.2 330 0/+0.5
7.20 -0/+0.35 330 0/+0.5 32.2 330 0/+0.5
7.70 330 0/+0.5
8.20 330 0/+0.5
8.70 330 0/+0.5
9.20 330 0/+0.5
9.70 330 0/+0.5
10.20 330 0/+0.5
10.70 330 0/+0.5
11.20 330 0/+0.5
11.70 330 0/+0.5
12.20 330 0/+0.5
12.70 330 0/+0.5
13.20 330 0/+0.5
13.70 330 0/+0.5
14.20 330 0/+0.5
14.70 330 0/+0.5
15.20 330 0/+0.5
15.70 330 0/+0.5

Grades for tungsten carbide rods:

Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size

Titanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain SizeTitanium Alloy Carbide Unground Rods K30 / K40 OD 21.5mm Ultra Fine Grain Size
