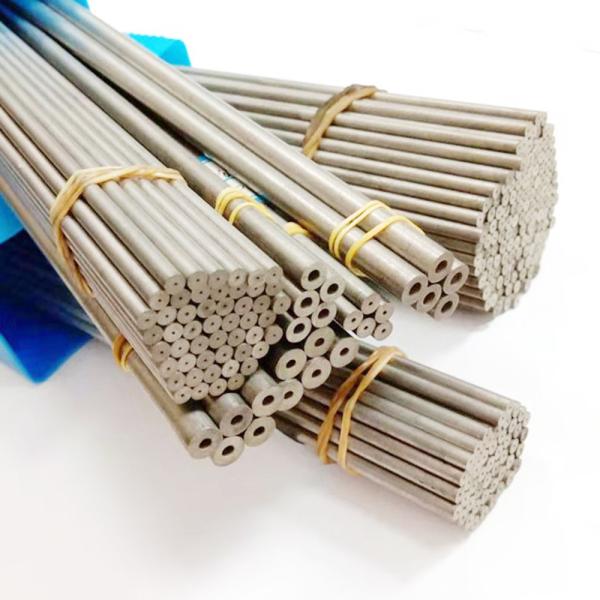

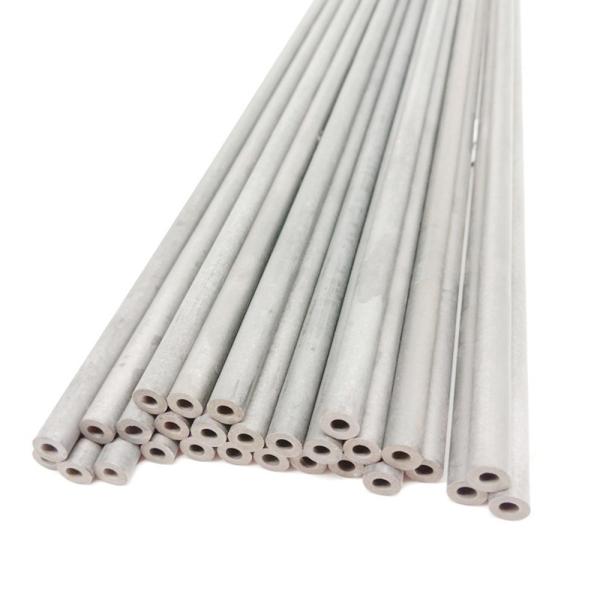

K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5
K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5
K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5
K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5
Specifications
Brand Name :
OUQI
Model Number :
Unground Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K05-K10
Diameter :
D1.6 - D40
Leght :
L15mm-330mm
Tolerance :
+0.2/+0.6
Surface Roughness :
Ra 6.3 Raw sintered
Circularity :
--
straightness :
--
Hardness :
HRA 93.5
T.R.S :
3800
Grain size :
Fine
Description

K10 Unground Cemented Carbide Rods PCB Drills Blank HRA 93.5

K05-K10 unground tungsten carbide rods. Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.

K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5

Feature:

With high hardness and wear/corrosion resistance, suitable for the manufacturing of various kinds of solid cemented carbide tools for the machining of heat-resistant alloy and Ti alloy.
--Dimension: diameter from 3-40mm, length from 38-330mm;
--with one coolant hole or two coolant holes or without coolant holes;
--ground and unground;

General tolerance for the raw sintered solid carbide rods
Diameter Tolerance Length Tolerance Straightness Tolerance
0,5- 3,5 +0,25/+0,35 ＜100.0 +0.5/+1.0 0,6-4 0,10
4,0- 6,0 +0,25/+0,40 100.0-165.0 +1.0/+2.5 4,5-8 0,12
6,5-12,0 +0,30/+0,45 165.0-335.0 +1.0/+6.0 8,5-12,0 0,15
12,5-16,0 +0,35/+0,50 12,5 - 20 0,20
16,5- 22,0 +0,40/+0,55 ≥20,5 0,24
22,5-45,0 +0,45/+0,60

Grades for tungsten carbide rods:

Grade ISO Code Grain size
μm		 Cobalt % Density
g/cm3		 Hardness T.R.S
HV30 HRA N/mm2 KPSI
YF06 K05‐K10 0.5 6.0 14.90 1850 93.5 3800 553.9
YL10A K10‐K20 0.8 8.0 14.65 1780 92.8 4200 609.5
YL10.2 K20‐K30 0.8 10.0 14.42 1600 91.5 4000 580
XF30 K30‐K40 0.6 12.0 14.10 1700 92.5 4000 580

Recommended Application

Grade Application
YF06 Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.
YL10A It is suitable for machining cast iron, aluminum alloys, etc. also for machining common steels.
It is recommended for the drilling of cast iron and aluminum alloys.
YL10.2 It is suitable for machining common steel, cast iron, stainless steel, heat‐resistant steel, nickel-based alloys, titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
XF30 It is suitable for machining titanium alloy, heat‐resistant alloys, stainless steel, hardened steel, grey cast iron, glass‐fiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.

Solid finished ground carbide rods are usually used for making endmills, and drills. Ouqi can provide precision ground rods in which the circularity and straightness could be 0.02mm and surface roughness can be Ra 0.02. With advanced equipment, the capacity could be 10,000kgs per month for the finished ground rods.

K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5K10 Unground Tungsten Carbide Rods Cemented PCB Drill Blanks HRA 93.5
