10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
Specifications
Brand Name :
XINPIN or OEM
Model Number :
Outer diameter 13mm, 20mm 22mm
Certification :
SGS & ISO9001-2015
Place of Origin :
Zhuzhou，China
MOQ :
20pcs per dimension
Price :
US DOLLAR 8-28 PER PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS PER MONTH
Delivery Time :
within 30 days
Packaging Details :
Plastic box （1PCS）+Paper Carton+woven bag
Material :
WC, CO, Others
Hardness :
> 92HRA
Dimension :
OD 22-20-13-10mm, ID: 4mm
Thickness :
2.0mm 3.0mm
Grade :
XP01 , XP02, XP03, XP04 (Economical, Professional Indtrial)
Application :
communication optical fiber
Coating :
Titanium coating
Service life :
100-3000 meters
Description

Tungsten carbide cutter for processing communication optical fiber 10-12-16 holes

Feature of Tungsten carbide cutter for processing communication optical fiber

With our mature propuction technology after over 5 years repeated experiments by our production technical team, our quality level ( High precision requirement,Service life and cutting performance ) can reach 80% of Japan's, but the price is only 30-40 % of his, economical , professional and industrial grade are both available.

Tungsten carbide tile cutters are easily friendly , be with no noise polluction and is quick and simple for operation when compared to tradition cutters.

Made from tungsten carbide , its most outstanding property is its hardness, which approaches that of a diamond, with an excellent wear-resistance and corrosion resistance, longer service can be well guaranteed, the processing length can reach 100-3000 meters.

Hardness over 92HRA, the ideal sharp cutter suitable for all cutting machines for high processing performance for the communication optical fiber

The surface of titanium coating can also reached, like this, the service life can improved at least by 15-20%.

Having a complete ranfe of specifications, 10 , 12 16 solid holes like photos or through holes both can be done, japanese style is also available, the customized dimension with detail drawing is also welcomed.

Straigth tangent line, excellent wear resistance, no edge breakage.

Standards dimensions lists

Specification OD(mm) Tolenrance ID(mm) Tolenrance Thickness(mm) Tolerance Cutting angle
Φ22XΦ6X4.7 22 ±0.2 6 +0.1/-0 4.7 +0/-0.1 90° 100° 110° 120°
Φ22XΦ6X2.0 22 ±0.2 6 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ22XΦ10.5X3 22 ±0.2 10.5 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ22XΦ10.5x2 22 ±0.2 10.5 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ20XΦ5X3.0 20 ±0.2 5 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ20XΦ5X2.0 20 ±0.2 5 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ18XΦ6X3.0 18 ±0.2 6 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ18XΦ6X1.5 18 ±0.2 6 +0.1/-0 1.5 +0/-0.1 90° 100° 110° 120°
Φ16XΦ6X3.0 16 ±0.2 6 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ16XΦ6X1.5 16 ±0.2 6 +0.1/-0 1.5 +0/-0.1 90° 100° 110° 120°
Φ15XΦ6X2.0 15 ±0.2 6 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ15XΦ6X1.5 15 ±0.2 6 +0.1/-0 1.5 +0/-0.1 90° 100° 110° 120°
Φ12XΦ3X3.0 12 ±0.2 3 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ12XΦ4X2.0 12 ±0.2 4 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ10XΦ2X2 10 ±0.2 2 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°

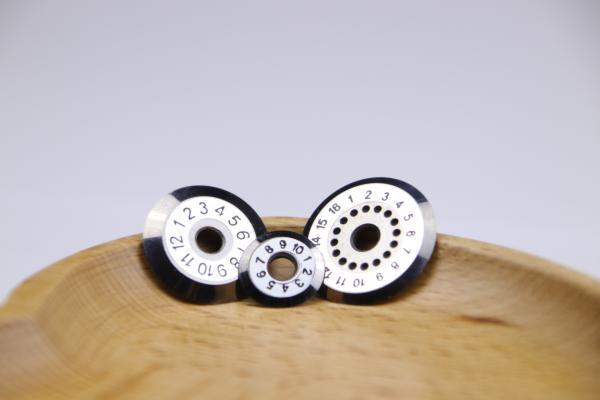

Details photos

10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber

10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber10-12-16 Holes Tungsten Carbide Cutter For Processing Communication Optical Fiber
