Specifications
Brand Name :
XINPIN or OEM
Model Number :
OD10mm-22mm
Certification :
SGS & ISO9001-2015
Place of Origin :
Zhuzhou，China
MOQ :
20pcs per dimension
Price :
US DOLLAR 2.5 -15 PER PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS PER MONTH
Delivery Time :
within 30 days
Packaging Details :
Plastic box （1PCS）+Paper Carton+woven bag
Material :
WC, CO, Others
Outer Diameter :
10mm-22mm
Inner Diameter :
6mm 5mm 3mm 2mm
Application :
glazed tile,ship-and galley tile, hard polished tile, glass
Coating :
Yes
Service life :
100-3000 meters
Hardness :
> 92HRA
Style :
Japanese , spanish
Description

Tungsten carbide tile cutter for 2-20mm glazed tile,ship-and galley tile, hard polished tile, glass

Feature of tungsten carbide tile cutters

Tungsten carbide tile cutters are easily friendly , be with no noise polluction and is quick and simple for operation when compared to tradition steel cutters.

Made from tungsten carbide , its most outstanding property is its hardness, which approaches that of a diamond, with an excellent wear-resistance and corrosion resistance, longer service can be well guaranteed, the processing length can reach 100-3000 meters.

Hardness over 92HRA, the ideal sharp cutter suitable for all cutting machines for high processing performance on for glazed tile,ship-and galley tile, hard polished tile, glass etc

The surface of titanium coating can also reached, like this, the service life can improved at least by 15-20%.

Having a complete ranfe of specifications, japanese & spanish style both are available, the customized dimension is also welcomed.

Straigth tangent line, excellent wear resistance, no edge breakage.

Standards dimensions lists

Specification OD(mm) Tolenrance ID(mm) Tolenrance Thickness(mm) Tolerance Cutting angle
Φ22XΦ6X4.7 22 ±0.2 6 +0.1/-0 4.7 +0/-0.1 90° 100° 110° 120°
Φ22XΦ6X2.0 22 ±0.2 6 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ22XΦ10.5X3 22 ±0.2 10.5 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ22XΦ10.5x2 22 ±0.2 10.5 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ20XΦ5X3.0 20 ±0.2 5 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ20XΦ5X2.0 20 ±0.2 5 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ18XΦ6X3.0 18 ±0.2 6 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ18XΦ6X1.5 18 ±0.2 6 +0.1/-0 1.5 +0/-0.1 90° 100° 110° 120°
Φ16XΦ6X3.0 16 ±0.2 6 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ16XΦ6X1.5 16 ±0.2 6 +0.1/-0 1.5 +0/-0.1 90° 100° 110° 120°
Φ15XΦ6X2.0 15 ±0.2 6 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ15XΦ6X1.5 15 ±0.2 6 +0.1/-0 1.5 +0/-0.1 90° 100° 110° 120°
Φ12XΦ3X3.0 12 ±0.2 3 +0.1/-0 3.0 +0/-0.1 90° 100° 110° 120°
Φ12XΦ4X2.0 12 ±0.2 4 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°
Φ10XΦ2X2 10 ±0.2 2 +0.1/-0 2.0 +0/-0.1 90° 100° 110° 120°

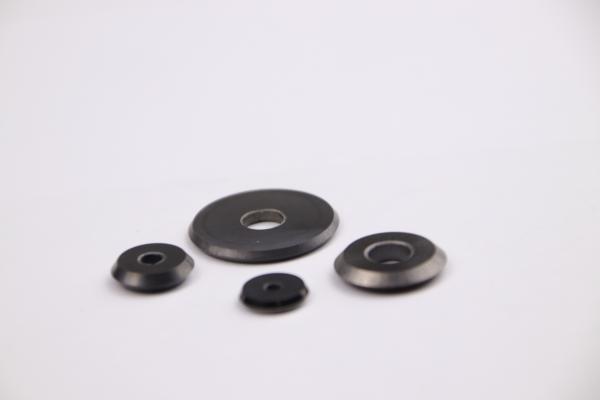

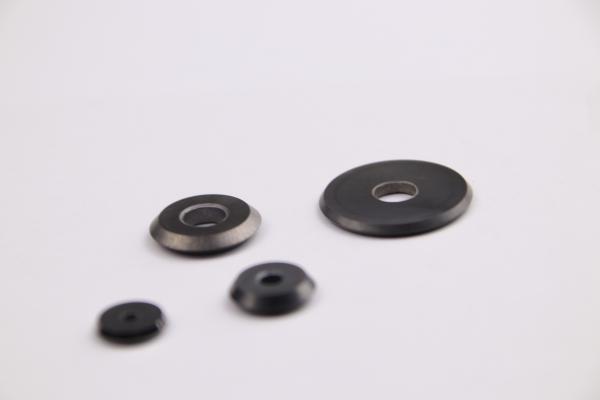

Details photos
