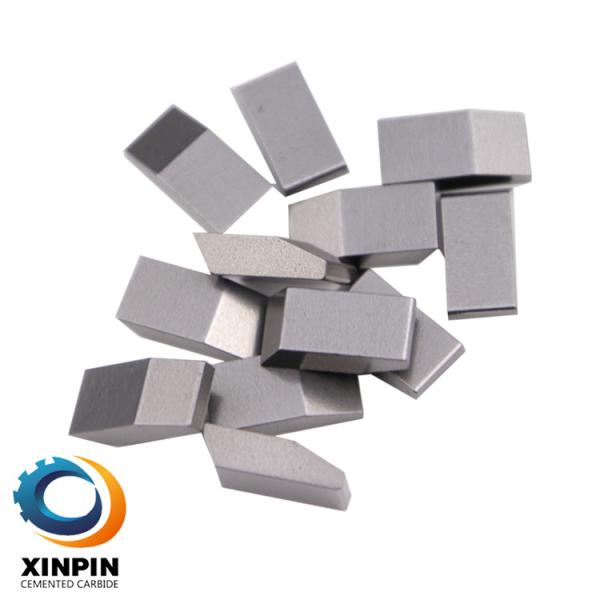

OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
Specifications
Brand Name :
XINPIN or OEM
Model Number :
All standard size &customized size
Certification :
ISO9001-2015 & SGS
Place of Origin :
Zhuzhou，China
MOQ :
5kg Per size
Price :
US DOLLAR 37-60 PER KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
12 TONS PER MONTH
Delivery Time :
within 20 working days
Packaging Details :
Plastic box （1kg/3kg）+Paper Carton（ 15kg+18kg+20kg）+woven bag
Raw material :
WC, Cobalt， others
Grade :
XK series， XF series，SM series XP series
ISO Code :
K01, K05, K10, K20, K30, M20, P30
Hardness :
88.0-94.6 HRA
Production process :
Wet ball milling, automatic pressing, sinter, low pressure sintering, surface treatment
Surface Treatement :
Sandblasting， Nickel coating， polishing
Processing :
Wood, Aluminum, Copper, Metal,Bamboon
Key words :
easy to be welded, no crack,
Description
Tungsten carbide saw tips for wood working after over 96 hours wet ball milling
Grade chart from Zhuzhou Xinpin Cemented Carbide Co., ltd
Grade Chart
GRAIN SIZE
GRADE
ISO
USA
BINDER
DENSITY (g/Cm3)
HARDNESS (HRA)
T.R.S (HIP)
GRAIN SIZE
RECOMMENDED CUTTING APPLICATIONS
Hot Isostatic Pressing
Ultra-micron
SM02
K01
C4
3
15.0-15.2
94.4-94.8
≥2200
0.4
for chipboard,laminated board and HDF etc
HIP
SUB-MICRON
SM03
K01
C4
3
15.0-15.2
94.0-94.4
≥2500
0.6
for chipboard,laminated board,veneer board and HDF ect
HIP
SM05
K01
C4
3.5
15.0-15.2
93.8-94.0
≥3000
0.6
For hardwood,copper,aluminum,plywood,MDF and Acrylic,etc.
HIP
SM06
K05
C4
4
14.9-15.1
93.6-94.0
≥2600
0.6
for hardwood, veneer board and HDF etc
HIP
SM07
K05
C3
5
14.8-15.0
93.2-93.6
≥2700
0.8
for ferrousmetal,hardwood,veneerboard and MDF etc
HIP
SM09
K10
C3
7
14.6-14.8
92.4-92.8
≥2800
0.8
for ceramic, copper,ferrousmetal,hardwood and MDF etc
HIP
SM10
K30
C6
10
14.2-14.4
92.0-92.5
≥3000
0.6
for PCB,medium denstisy steel, copper and non-ferrous metal etc
HIP
SM12
M20
C6
10
14.2-14.4
91.8-92.3
≥3000
0.8
medium denstisy steel, steel, copper and non-ferrous metal etc
HIP
XP30
P30
C5
10
13.1-13.3
91.4-92.0
≥2700
0.8
for carbon steel,iron,caststeel and color steel tile etc
HIP
XP40
P25
C5
10
13.0-13.2
91.2-91.8
≥2800
0.8
stainless, alloy steel and high-manganese steel etc
HIP
FINE
XF5
K05
C3
5
14.9-15.1
91.2-92.0
≥2500
1.2
for solidwood,hardwood,composite board,iron and non-ferrous metal etc
HIP
XF6X
K10
C3
6
14.7-14.9
92.0-92.8
≥2500
1.0
for hardwood,veneerboard,MDF and non-ferrous metal
HIP
XF8X
K20
C2
8
14.5-14.7
91.0-92.0
≥2600
1.0
for hardwood,MDF and non-ferrous metal
HIP
XF10
K30
C2
10
14.3-14.5
90.5-91.5
≥3000
1.0
for solidwood, copper and non-ferrous metal etc
HIP
XP20
M20
C6
8
13.6-13.8
90.0-91.0
≥2600
1.0
for general steel,alloy steel,and high-manganese steel etc
HIP
MEDIUM
XK15
K10
C1
6
14.8-15.0
90.5-91.5
1.3
For solidwood, hardwood,Old building form wood with nails
HIP
XK10
K10
C2
6
14.8-15.0
90.5-91.5
≥2700
1.3
for soliwood, hardwood,PVC copper and non-ferrous metal etc
XK20
K20
C1
8
14.6-14.8
89.5-90.5
≥3000
1.4
old wood, softwood,drywood and non-ferrous metal etc
Economical (XK Series),professional( XF series) industrial( SM & XP) grade, what's the difference in wet ball milling and how the duration of wet ball milling influence the service life of tungsten carbide ?
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
Wet ball milling machine
Supplier
Purity of raw material
Grain size
Duration of wet ball-milling
Sintering
Low pressure sintering
Surface treatement
XK Series
Ordinary/ middle grade supplier
70% Virgin+30% Recycle
1.3um-2.5um
24-48hours
Special sintering furnance
No
sandblasting,Manual physical nickel coating,polishing
XF series
Middle grade & top supplier
100% Virgin
0.8um-1.3um
72-96hours
Special sintering furnance
Yes
sandblasting,Manual physical nickel coating,polishing
SM series & XP series
Top supplier
100% Virgin
0.6um-0.8um
> 96hours
Special sintering furnance
Yes
sandblasting,automatic electroplate nickel coating,polishing
Wet ball-milling:put proportionally the WC, cobalt powder and others into ball milling barrel,milling automatic together with tungsten carbide milling balls, for XK Series, the duration of ball-milling will be 24-48 hours, 72-96hours for XF series and over 96 hours for SM & XP Series, the longer duration of ball milling, the finer & uniform the mixture powder, then after pressing and sinterting, the inner of tungsten carbide joint tightly and firmly without gaps, so finally to control the wear-resisting property of tungsten carbide, with longer cutting service life.
Metallographic Phase of different grain grade (displayed by 1500 x microscope)
OEM Tungsten Carbide Saw Tips For Wood Working After Over 96 Hours Wet Ball Milling
