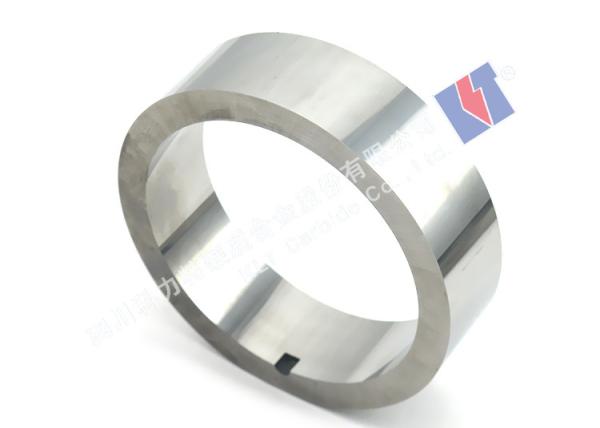

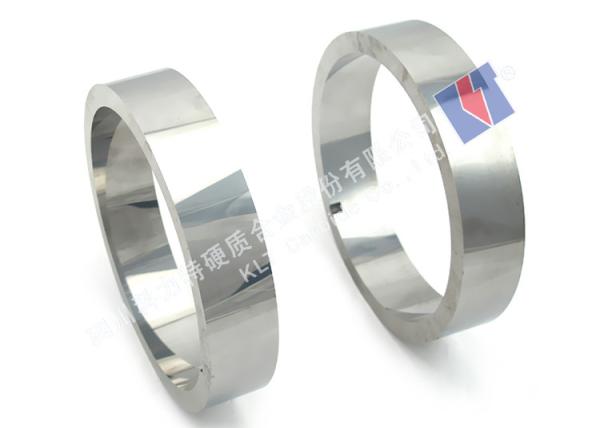

Chemical Resistant Tungsten Carbide Alloy Mechanical Seal Ring Standard Size
Chemical Resistant Tungsten Carbide Alloy Mechanical Seal Ring Standard Size
Chemical Resistant Tungsten Carbide Alloy Mechanical Seal Ring Standard Size
Chemical Resistant Tungsten Carbide Alloy Mechanical Seal Ring Standard Size
Specifications
Brand Name :
KLT
Model Number :
Inlaid Carbide Seal-ring/Bearing type A3
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Guanghan
MOQ :
10 Pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
40 Tons Per Months
Delivery Time :
35 Days
Packaging Details :
Box
Material :
tungsten carbide
Standard or nonstandard :
Standard,Standard or Nonstandard
Application :
Pump
Size :
Standard or Customized,OEM accepted,can be customized
Product name :
tungsten carbide seal ring
Physical performance :
wear resistance,high strength and hardness wear resistance,high hardness
Price :
To be negotiated
Description

Polishing Mechanical Seal Customized Tungsten Carbide Seal-ring/Bearing OEM Accepted


Product Description


We have rich experience in producing mechanical seal rings and metal parts with tight tolerances. The biggest outer diameter of the ring we can make it into 430mm.
We are an ISO certified carbide supplier,and expert in producing OEM parts with excellent quality according to your specific needs.Tungsten Carbide Seal Rings are used as Seal faces in pump and seal, Compressors and Agitators. It is often applied in Oil Refineries, Fertilizer Plants,Petrochemical plants,Pharmaceutical/Drugs industries.
Tungsten Carbide Rings are usually made with Cobalt (Co) as binder material. Nickel(Ni) Bonded Rings are also supplied.
We provide our clients with high quality Tungsten Carbide roll rings and composite rolls for rolling wire rods and merchant bars.
The superior wear resistance characteristics of TC roll rings provide you the highest pass performance in addition to the excellent surface finish.


Tungsten carbide roll rings are the standard application in high speed wire rod finishing block and is getting more popular in some other hot and cold forming applications.

Product Features:

• The precision seal ring is made of high quality materials by an advanced process with several patented technologies

• The seal ring has a very complicated shapes, high accuracy, stable mechanic properties

• It has much higher wear and corrosion resistance properties, and a service life of more than twenty thousand hours in the normal case

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Production line

Chemical Resistant Tungsten Carbide Alloy Mechanical Seal Ring Standard Size

Why choose us

Chemical Resistant Tungsten Carbide Alloy Mechanical Seal Ring Standard Size

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Coporate Vision:

Chemical Resistant Tungsten Carbide Alloy Mechanical Seal Ring Standard Size
