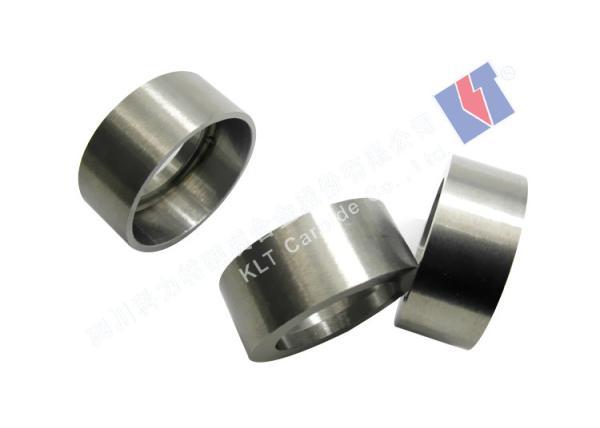

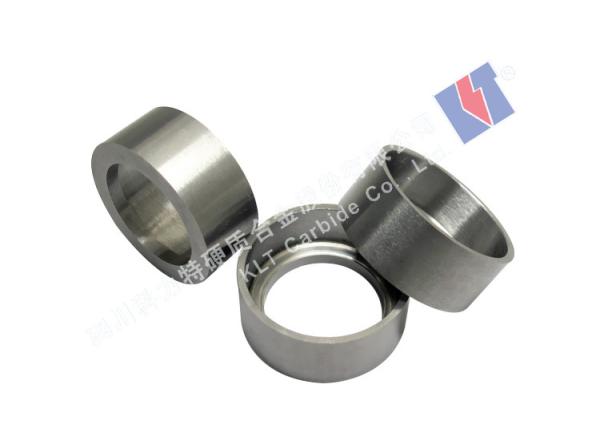

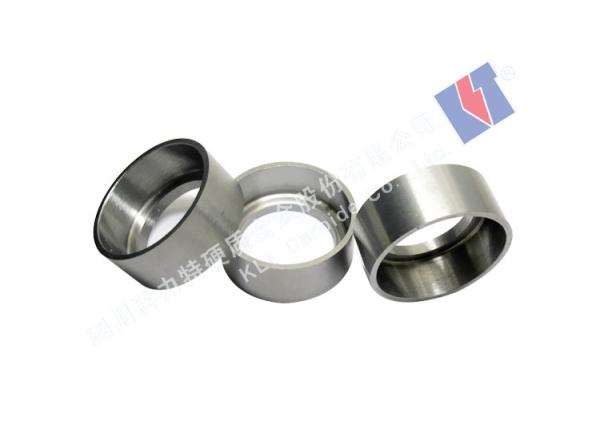

Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing
Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing
Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing
Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing
Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing
Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing
Specifications
Brand Name :
KLT
Model Number :
Inlaid Carbide Seal-ring/Bearing type A3
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Guanghan
MOQ :
10 Pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
40 Tons Per Months
Delivery Time :
35 Days
Packaging Details :
Box
Material :
tungsten carbide
Standard or nonstandard :
Standard,Standard or Nonstandard
Application :
Pump
Size :
Standard or Customized,OEM accepted,can be customized
Product name :
tungsten carbide seal ring
Physical performance :
wear resistance,high strength and hardness wear resistance,high hardness
Price :
To be negotiated
Description

WC+Co/Ni Customized Custom Made Tungsten Cemented Carbide O Ring For Mechanical Sealing


Product Description


Mechanical seal ring is one of biggest important wear parts in tungsten carbide products.

• The tungsten carbide seal ring can be divided into both of the rotating seal ring and static seal ring, and constitutes mechanical seal together with the spring,rubber seal ring and steel jacket.

• It's mainly used for waste water pump, water discharge pump for the mines, centrifugal pump, slag slurry pump and slurry pump in the adverse working conditions of high speed rotating,sand flush abrasion and corrosion.

• The seal ring is installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Tungsten carbide roll rings are the standard application in high speed wire rod finishing block and is getting more popular in some other hot and cold forming applications.
Tungsten carbide material has good conductivity, thermal conductivity and corrosion resistance and high density of 16 g/cm3 to 18.5 g/cm3.Cemented carbide also has very good mechanical strength, small coefficient of thermal conductivity, large expansion coefficient and elastic coefficient.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Production line

Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing

Why choose us

Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Our Quality Contral

Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing

Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing

Wc+Co/Ni Tungsten Carbide Alloy Tungsten O Ring For Mechanical Sealing
