Yg6/Yg8/Yg10 Water Pump Nozzle / Spray Dryer Nozzle Tungsten Carbide Material
Yg6/Yg8/Yg10 Water Pump Nozzle / Spray Dryer Nozzle Tungsten Carbide Material
Yg6/Yg8/Yg10 Water Pump Nozzle / Spray Dryer Nozzle Tungsten Carbide Material
Yg6/Yg8/Yg10 Water Pump Nozzle / Spray Dryer Nozzle Tungsten Carbide Material
Specifications
Brand Name :
KLT
Model Number :
Tungsten Carbide Sandblast Nozzle
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
nozzles
Material :
100% Virgin Tungsten Carbide,WC+CO,100% Original Carbide,Original tungsten carbide material,Tungsten Carbide WC+Co
Size :
OEM accepted,Customized Size,Custom Size,Customer's Request
Application :
dry/wet blasting
Product name :
tungsten carbide nozzle,Drill Bit Nozzle
Grade :
Customer's Request,YG6/YG8/YG15/YG 20,YG6/YG8,YG6X/YG8/YG6
Price :
To be negotiated
Description

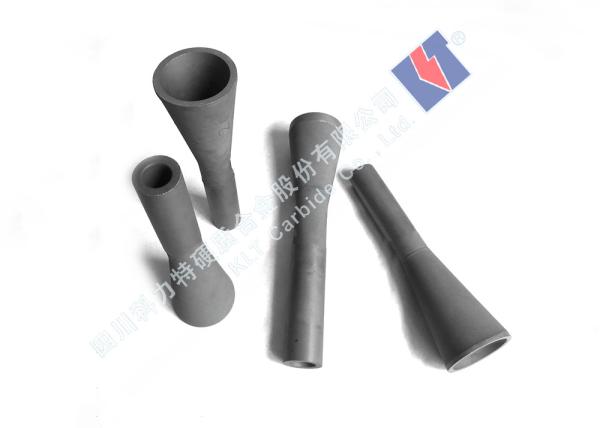

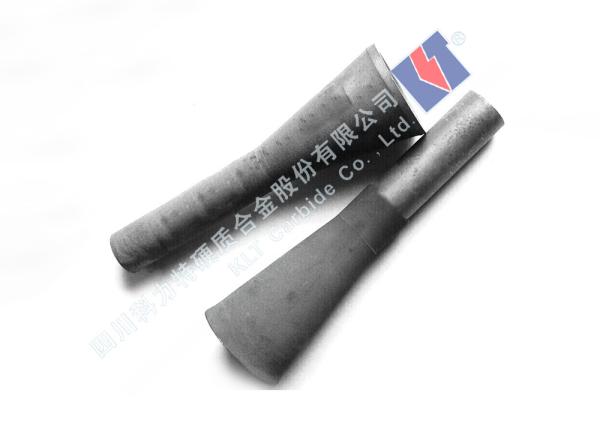

YG6/YG8/YG10 Tungsten Carbide Wear-resistant Sandblast Nozzle For Water Pump/Spray Dryers

Product Description

Because of its simple structure, diamond drill bits have high strength, high wear resistance and impact resistance. It was in the 1980s.One of the three new drilling technologies in the world. Field use proves that diamond bits have speed when drilling in soft-medium hard formations.Fast, more footage, long life, stable work, fewer downhole accidents, good well quality and so on. Carbide tungsten steel nozzle.As one of the important parts in the diamond drill bit, it has the cleaning effect on the drill bit and the bottom of the well and the hydraulic rock breaking effect of the nozzle.Conventional nozzles are cylindrical and can produce a balanced pressure distribution on the rock surface.
In drilling operations, inhibiting the formation and development of bit mud packs is very important to improve drilling speed and ensure drilling safety.

Tungsten Carbide Sandblast Nozzle produced by our company have several advantages

1. High hardness,excellent wear resistance.Hardness as high as HRA 96.

2. Consistent and long service life. Working hours above 150 hour.

3. stable performance

4. high cutting speed

5. Low costs of water and abrasive.

6. Sufficient stock

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Customer Visit:

Yg6/Yg8/Yg10 Water Pump Nozzle / Spray Dryer Nozzle Tungsten Carbide Material

Yg6/Yg8/Yg10 Water Pump Nozzle / Spray Dryer Nozzle Tungsten Carbide Material
