Durable Api 100% Virgin Tungsten Carbide Valve Parts Ball And Seat Oem Accepted
Durable Api 100% Virgin Tungsten Carbide Valve Parts Ball And Seat Oem Accepted
Durable Api 100% Virgin Tungsten Carbide Valve Parts Ball And Seat Oem Accepted
Durable Api 100% Virgin Tungsten Carbide Valve Parts Ball And Seat Oem Accepted
Specifications
Brand Name :
KLT
Model Number :
Carbide valve Seat
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Guanghan
MOQ :
10 Pcs
Supply Ability :
40 Tons Per Months
Delivery Time :
35 Days
Packaging Details :
Box
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Power Tool Parts,Construction Tool Parts,Lifting Tool Parts,valves and flow meters,Cemented Carbide
Material :
100% Virgin Tungsten Carbide,YG8X,WC+Co,YG15C,Tungsten Carbide WC+Co
Grade :
YG6,YG8C
Size :
OEM Accepted,Customized,1.5~500mm,Customer's Request,0.5 - 80mm
Product name :
Tungsten Carbide Valve Parts carbide wear parts,tungsten carbide ball valve and seat,cemented carbide valve,V11-125 Blank Tungsten Carbide valve seats for API Oil Valves,YG15 Carbide Rolls of Reinforcement Bars
Surface :
Blank/ Rough grinded/ Polished,Finish,Blanks or polished grinding,Polished and sintered,Grinding or machined
Price :
To be negotiated
Description

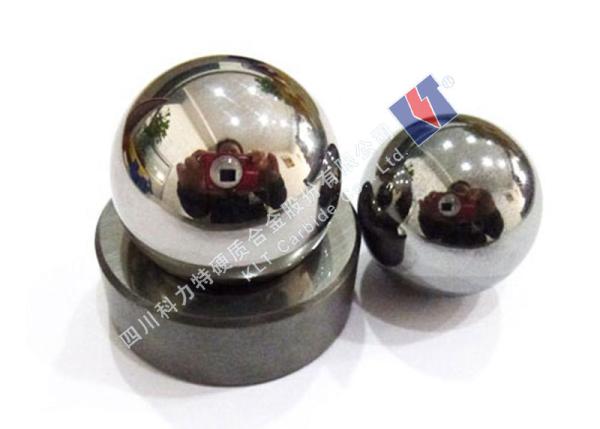

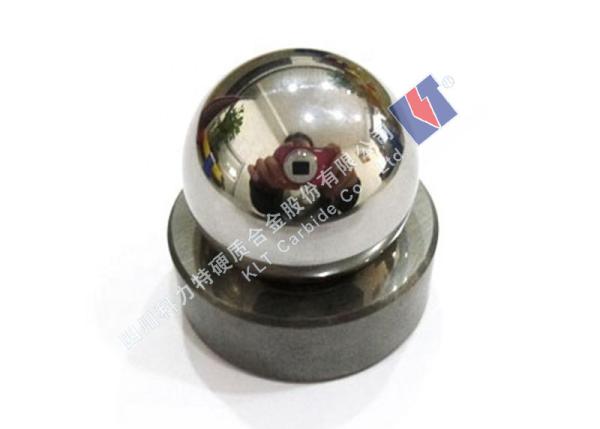

OEM Accepted API 100% Virgin Tungsten Carbide Ball&Seat Blank/ Rough grinded/ Polished

Product Description

The hard alloy balls&seats valve is evolved from the traditional plug valve. Its opening and closing member is a sphere, and the purpose of opening and closing is achieved by the sphere around the axis of the valve stem.The ball-and-seat assembly is a key component in the subsurface pump. It probably undergoes more severe service on a continuous basis than any other component because even a slight amount of wear on the ball or seat will cause an immediate loss of pumping efficiency.Our ball-and-seat valves are designed and manufactured according to API 11AX Specification for Subsurface Sucker Rod Pumps and Fittings (current edition). Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.

Tungsten Carbide Buttons produced by our company have several advantages

1, The alloy valve seat is used together with the carbide ball.
2, Alloy valve seat has excellent sealing and wear resistance.
3, Alloy valve seat bevel is smooth and flat.
Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Reference Drawing

Durable Api 100% Virgin Tungsten Carbide Valve Parts Ball And Seat Oem Accepted

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.
