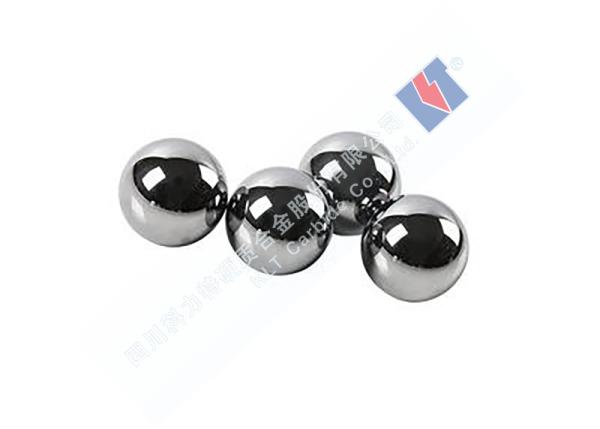

Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls
Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls
Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls
Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls
Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls
Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls
Specifications
Brand Name :
KLT
Model Number :
Carbide valve ball
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material :
100% Virgin Tungsten Carbide,YG8X,WC+Co,YG15C,Tungsten Carbide WC+Co
Grade :
YG6,YG8C
Size :
OEM Accepted,Customized,1.5~500mm,Customer's Request,0.5 - 80mm
Product name :
Tungsten Carbide Valve Parts carbide wear parts,tungsten carbide ball valve and seat,cemented carbide valve,V11-125 Blank Tungsten Carbide valve seats for API Oil Valves,YG15 Carbide Rolls of Reinforcement Bars
Surface :
Blank/ Rough grinded/ Polished,Finish,Blanks or polished grinding,Polished and sintered,Grinding or machined
Color :
Gray
Advantage :
high corrsion resistance,high wear resisting,Durable,Wear ResistantSuperior,Manufactuer
Price :
To be negotiated
Description

Carbide Balls Tungsten Carbide Stamping Extrusion Hole Fine Grinding Ball Valve Precision Bearing Ball

Product Description

Cemented carbide balls are commonly known as tungsten steel balls, which refer to balls and balls made of cemented carbide. Cemented carbide balls have high hardness, wear resistance, corrosion resistance, resistance to bending, and harsh use environment. Cemented carbide grinding balls use carbide (WC, TiC) micron powder of high-hardness refractory metal as the main component, with cobalt (Co) or nickel (Ni), molybdenum (Mo) as the binder, in a vacuum furnace or Powder metallurgy products sintered in a hydrogen reduction furnace. Carbide ball materials include YG6, YG6x, YG8, YG8x, YN6, YN9, etc., which can be used for the development of specific, hard, thick, and highly corrosive materials.

Tungsten Carbide Buttons produced by our company have several advantages

1. High hardness, strong crushing force and mixing force.
2. High temperature resistance, it can still maintain high hardness and other mechanical properties under the high temperature of 1000 degrees.
3. Corrosion resistance, can resist strong acid and alkaline substances corrosion.
Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Reference Drawing

Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls

Production show

Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Our Quality Contral

Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls

Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls

Stamping Extrusion Hole Tungsten Carbide Sphere , Fine Grinding High Precision Balls
