High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories
High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories
High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories
High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories
Specifications
Brand Name :
KLT
Model Number :
Carbide Balls&Seats
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Power Tool Parts,Construction Tool Parts,Lifting Tool Parts,valves and flow meters,Cemented Carbide
Grade :
YG6,YG8C
Size :
OEM Accepted,Customized,1.5~500mm,Customer's Request,0.5 - 80mm
Product name :
Tungsten Carbide Valve Parts carbide wear parts,tungsten carbide ball valve and seat,cemented carbide valve,V11-125 Blank Tungsten Carbide valve seats for API Oil Valves,YG15 Carbide Rolls of Reinforcement Bars
Surface :
Blank/ Rough grinded/ Polished,Finish,Blanks or polished grinding,Polished and sintered,Grinding or machined
Color :
Gray,nicle white,As required,black,Polishing
Price :
To be negotiated
Description

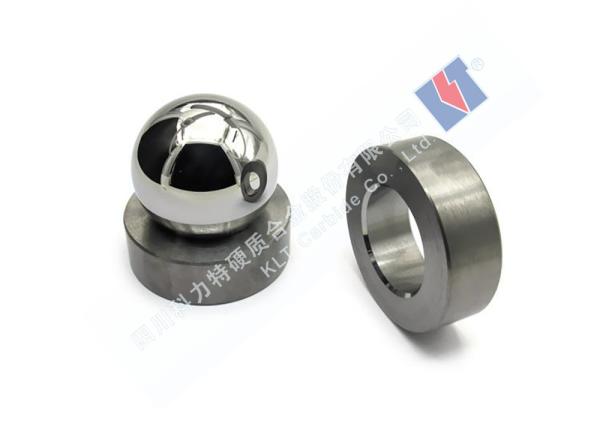

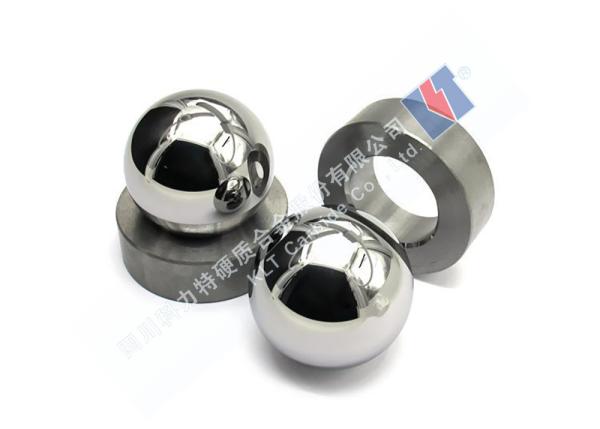

API Valve Ball&Seat Oil Valve Accessories High Wear-resistant Hard Alloy Customizable High Hardness

Product Description

1.Material: A1Stainless steel; B1Cobalt Alloy, cast; B2 Cobalt Alloy, Powder Metal;C1 Tungsten Carbide, C3 Titanium Carbide .

2.Standard: API 11AX

3.resistance against corrosion and oxidation;

4.Valve balls and valve seats are widely used in oil fields.

5.Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.
6.Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.

Tungsten Carbide Buttons produced by our company have several advantages

1, The alloy valve seat is used together with the carbide ball.
2, Alloy valve seat has excellent sealing and wear resistance.
3, Alloy valve seat bevel is smooth and flat.
Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Reference Drawing

High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories

Production show

High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

ustomer Visit:

High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories

High Grade Api Tungsten Carbide Valve Ball And Seat Oil Valve Accessories
