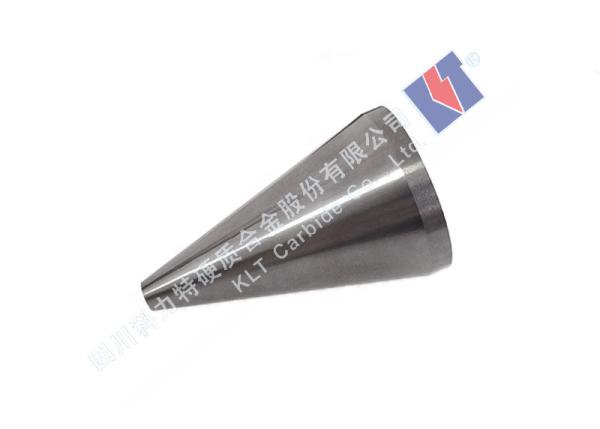

Wc+Co/Wc+Ni Blank Tungsten Carbide Valve Trim For Oil Wellhead High Hardness
Wc+Co/Wc+Ni Blank Tungsten Carbide Valve Trim For Oil Wellhead High Hardness
Wc+Co/Wc+Ni Blank Tungsten Carbide Valve Trim For Oil Wellhead High Hardness
Wc+Co/Wc+Ni Blank Tungsten Carbide Valve Trim For Oil Wellhead High Hardness
Specifications
Brand Name :
KLT
Model Number :
Carbide Valve Trim
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Guanghan
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material :
100% Virgin Tungsten Carbide,YG8X,WC+Co,YG15C,Tungsten Carbide WC+Co
Size :
OEM Accepted,Customized,Customer's Request
Product name :
Tungsten Carbide Valve Parts carbide wear parts,cemented carbide valve
Surface :
Blanks or polished grinding
Advantage :
high corrsion resistance
Chemical composition :
Co-WC,WC+Co
Price :
To be negotiated
Description

WC+Co/WC+Ni Blank/ Rough grinded/ Polished Carbide Valve Trim For Oil Wellhead High Hardness

Product Description

Tungsten carbide is an important raw material in Valve Trim. Valve seat is wearing part. The important point is: it in the pipe. The medium will crushing the inner place. If the valve seat were not maintained properly, it would get rusty as time passes. Tungsten carbide features: High hardness, corrosion and wear resistance etc. It’s high hardness and wear resistance to ensure valve seat guarantee quality. The advantage is tungsten carbide is washing-out resistance. When the liquid into valve, it will washing-out valve seat. The raw material is more important. When parts or machine rubbing against each other, we always using tungsten carbide for valve seat raw material. This way is most quickly, easily way to solve work piece corrosion problem. It’s versatility and flexibility in various work piece. It’s mainly used in Oil, Gas industry and so on. After accurate grinding and polishing, the frictional factor of surface is very low. We accept customized service. If you have other specification, you can contact us. TDC is your partner in Tungsten carbide industry. For tungsten carbide material grade, we suggest: YG8, YG11, YG15, YS2T, YL10.2, YN8 other grade can be offered by customers’ request.

Carbide Valve Trim produced by our company have several advantages


1.Excellent sealing and wear resistance.
2.Smooth and flat surface.
3,Can be customized according to drawing.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Reference Drawing

Wc+Co/Wc+Ni Blank Tungsten Carbide Valve Trim For Oil Wellhead High Hardness

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Customer Visit:

Wc+Co/Wc+Ni Blank Tungsten Carbide Valve Trim For Oil Wellhead High Hardness

Wc+Co/Wc+Ni Blank Tungsten Carbide Valve Trim For Oil Wellhead High Hardness
