Cemented Carbide Wear Parts Tungsten Carbide For Drilling Mwd / Lwd Accessories
Cemented Carbide Wear Parts Tungsten Carbide For Drilling Mwd / Lwd Accessories
Cemented Carbide Wear Parts Tungsten Carbide For Drilling Mwd / Lwd Accessories
Cemented Carbide Wear Parts Tungsten Carbide For Drilling Mwd / Lwd Accessories
Cemented Carbide Wear Parts Tungsten Carbide For Drilling Mwd / Lwd Accessories
Cemented Carbide Wear Parts Tungsten Carbide For Drilling Mwd / Lwd Accessories
Specifications
Brand Name :
KLT
Model Number :
MWD / LWD Accessories Rotor
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Application :
Chemical and Mechanic Industry
Material :
100% Virgin Tungsten Carbide,100% Virgin Raw Material
Size :
Customized
Product name :
Customized High Precision Tungsten Carbide Wear Parts
Advantage :
100% Virgin Raw Material,High Wear Resistant,Durable,with Hot Isostatic Pressing in long life circle
Service :
ODM OEM,OEM&ODM
Price :
To be negotiated
Description

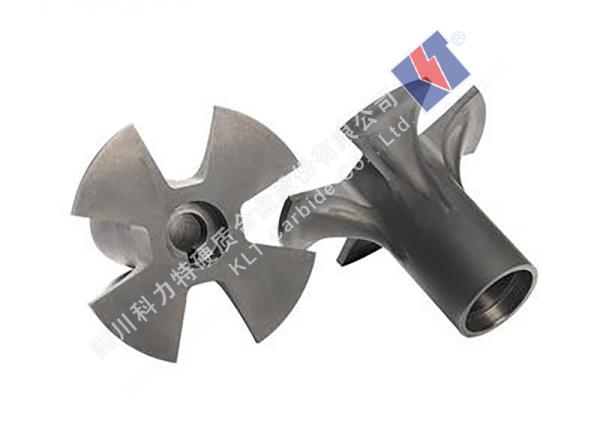

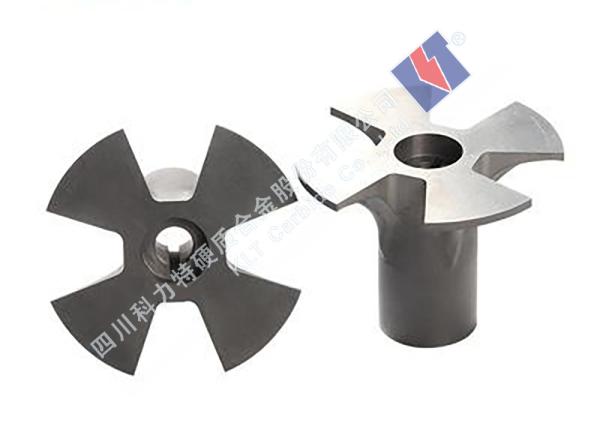

Tungsten Carbide For Drilling MWD / LWD Accessories Rotor Main Valve Core Wear-resistant

Product Description

Tungsten Carbide For Drilling MWD / LWD includes two types:
1. Both the main body and the threaded part are made of tungsten carbide, which is called the overall hard alloy main valve head.
2. The main body is tungsten carbide, and the threaded part is made of stainless steel (such as stainless steel 304, etc.), which is called a welded main valve head.
Features: high hardness, wear resistance, corrosion resistance, etc.
Size: 28.5, 27.6, etc.
Tungsten Carbide For Drilling MWD / LWD type: Welded main valve head, solid carbide main valve head,Rotor.
Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Tungsten Carbide For Drilling MWD / LWD Use

Various petrochemical industry industrial valves and special rotor are used in harsh environments and require high temperature and corrosion resistant environments.

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you trading company or manufacturer ?

A1: We are Factory with 20 years of production experience.

Q2: Where is your factory?

A2: We are located in Zigong city, Sichuan province where is3 hours away from Chengdu by Car.

Q3: Is the competitive price of tungsten carbide nozzles?

A3: We have our own Factory. Due to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Is the top quality?

A4: Yes. All products will be tested before bulk processing, and we will check the physi-cal properties, shape and
tolerance for ensuring qualified products before shipping.

Q5: What’s your delivery time ?

A5: For the normal type which we have mold it takes 10-15 days after receiving the advance payment.
For the non standard which we do not have mold it takes 15-25 days after receiving the advance payment.

Q6: Do you provide samples ? is it free or extra ?

A6: Yes, we could offer the sample (less than 1Kg) for free charge without freight charge.
