Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear
Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear
Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear
Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear
Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear
Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear
Specifications
Brand Name :
KLT
Model Number :
Straight Tungsten Carbide Water Shaft Bushing Sleeve
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Sleeve
Material :
tungsten carbide
Application :
used for water pump,oil pump and other pump
Product name :
Bushing/bush/sleeve/tube
Size :
Customizable
Surface :
polished or as request
Keywords :
tungsten carbide bushing,tungsten carbide shaft sleeve
Price :
To be negotiated
Description

Wear-resistant Accessories Straight Tungsten Carbide Water Shaft Bushing Sleeve For Water Supply Water Treatment

Product Description

Carbide shaft sleeves are tough wear,wear-resistant and corrosion-resistant bearings for pumps and motors.They are much more durable than the sleeves made of copper,stainless steel,or cast iron.Carbide sleeves are mainly used in multistage centrifugal pumps or water supply in skyscraper,water treatment,fire fighting,etc.

Applications
1. Tungsten Carbide Bearing Bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.
2. It's widely used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.
3. Tungsten carbide bush is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion.

Straight Tungsten Carbide Water Shaft Bushing Sleeve produced by our company have several advantages

A. High hardness, abrasion resistance and durability increase by 30%, high product accuracy
B, 100% strict production and processing according to drawings
C. Adopt scientific and advanced process equipment, 100% ensure product quality
D. Industry-leading after-sales protection, 100% return of defective products.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

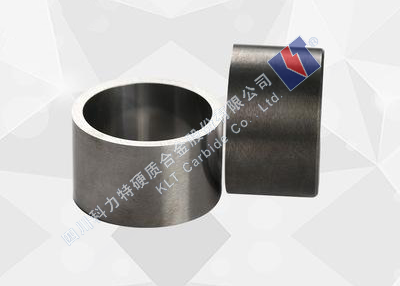

Reference Drawing

Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear

Production Show

Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Customer Visit:

Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear

Wear Resistant Accessories Water Pump Sleeve For Water Treatment Anti - Wear
