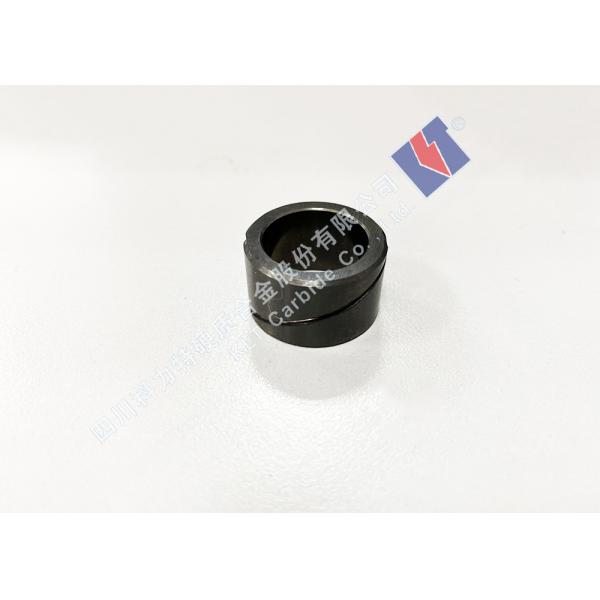

Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump
Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump
Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump
Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump
Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump
Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump
Specifications
Brand Name :
KLT
Model Number :
Bushing Sleeves With Spiral Grooves
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Sleeve
Material :
tungsten carbide
Application :
Oil Field,oil pump and other pump
Size :
Customizable
Grade :
YG8 YG6 YG10X YN6 YN8 YN9
Advantage :
high wear resistance,Superior wear-resistance,Superior wear-resistance and impact toughness,corrosion resisting,long life time
Price :
To be negotiated
Description

Wear-resistant Accessories Bushing Sleeves With Spiral Grooves For Oil Extraction Pump

Product Description

The cemented carbide shaft sleeves play the role of locating or positioning,supporting and protecting the rotational shafts from wearing.It possesses superior wear resistance,low friction coefficient,good toughness and long service life.They are widely used as wear parts in various machinery,such as motorized equipment,hydraulic systems and oil well artificial lift systems like electric submersible pumps(ESPs),centrifugal pumps,and other turbo machinery.

Tungsten Carbide Water Shaft Bushing Sleeve With Inner Petal-3 Flaps produced by our company have several advantages

A. High hardness, abrasion resistance and durability increase by 30%, high product accuracy
B, 100% strict production and processing according to drawings
C. Adopt scientific and advanced process equipment, 100% ensure product quality
D. Industry-leading after-sales protection, 100% return of defective products.

Information for quotation:
In addition to the regular sizes, we can also supply the products according to customer’s drawings, samples and performance requirement. Please send your inquiry if you already have a specific demand in size and design about products. We’ll reply and quote for you immediately. OEM and ODM are welcomed. To save your value time, please let us know the information for quotation as below:
* Grade/give us information of working condition, our engineers can provide the best solution for you.
* Dimension/clear drawing.
* Available tolerances.
* Inquiry quantity of each type.
* Blanks or finished products.
* Purchase quality of each item.
* Others special requirements.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

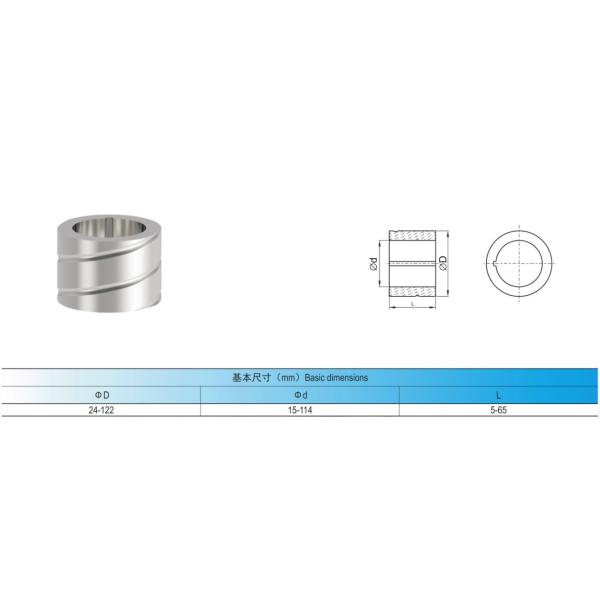

Reference Drawing

Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump

Production Show

Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Customer Visit:

Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump

Lightweight Tungsten Carbide Sleeve With Spiral Grooves For Oil Extraction Pump
