Abrasion Resistance Tungsten Carbide Sleeve Type T For Esp High Hardness
Abrasion Resistance Tungsten Carbide Sleeve Type T For Esp High Hardness
Abrasion Resistance Tungsten Carbide Sleeve Type T For Esp High Hardness
Abrasion Resistance Tungsten Carbide Sleeve Type T For Esp High Hardness
Specifications
Brand Name :
KLT
Model Number :
Shaft Bushing Sleeve Type T
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Sleeve
Material :
tungsten carbide
Advantage :
Abrasion Resistance
Size :
Customizable
Surface :
polished or as request
Grade :
YG8 YG6 YG10X YN6 YN8 YN9
Price :
To be negotiated
Description

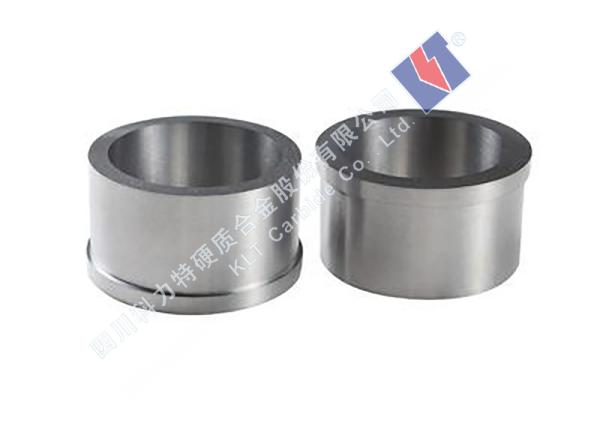

Tungsten Carbide Shaft Bushing Sleeve Type T For ESP High Hardness Abrasion Resistance

Product Description

Tungsten carbide shaft sleeve is machinery bushing part of ball bearings,it is widly used in metal machinery industry,currently we supply various kinds of shaft sleeve according to clients' request,straight type bushing sleeve,T-shape bushing sleeve,and special ones.Semi-finished procedure make it available even one pc special bushings,Your enquiry will be more than welcome here.

Product Application:
* Tungsten carbide bearing sleeve(bushing) has the characters of high wear resistance, high corrosion resistance and good compressive properties.
* This metal sleeve is used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.
* Tungsten carbide sleeves(bushings) is the basic material among the frictional materials. They are widely used as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion.

Shaft Bushing Sleeve Type T produced by our company have several advantages

A. High hardness, abrasion resistance and durability increase by 30%, high product accuracy
B, 100% strict production and processing according to drawings
C. Adopt scientific and advanced process equipment, 100% ensure product quality
D. Industry-leading after-sales protection, 100% return of defective products.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Production Show

Abrasion Resistance Tungsten Carbide Sleeve Type T For Esp High Hardness

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Customer Visit:

Abrasion Resistance Tungsten Carbide Sleeve Type T For Esp High Hardness

Abrasion Resistance Tungsten Carbide Sleeve Type T For Esp High Hardness
