Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper
Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper
Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper
Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper
Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper
Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper
Specifications
Brand Name :
KLT
Model Number :
Straight Tungsten Carbide Water Shaft Bushing Sleeve
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Sleeve
Material :
tungsten carbide
Application :
used for water pump
Product name :
Bushing/bush/sleeve/tube,tungsten carbide bushinges&sleeves,Tungsten Carbide Sleeve Bushing
Size :
Customizable,Standard & Customizable,Clients Drawings
Advantage :
high wear resistance,Superior wear-resistance,Superior wear-resistance and impact toughness,corrosion resisting,long life time
Price :
To be negotiated
Description

Wear-resistant Accessories Straight Tungsten Carbide Water Shaft Bushing Sleeve For Water Supply In Skyscraper

Product Description

carbide bushings and sleeves are mainly used in water pump, oil pump and high pressure &corrosion

resistant pumps , high precision and wear resistance is guaranteed

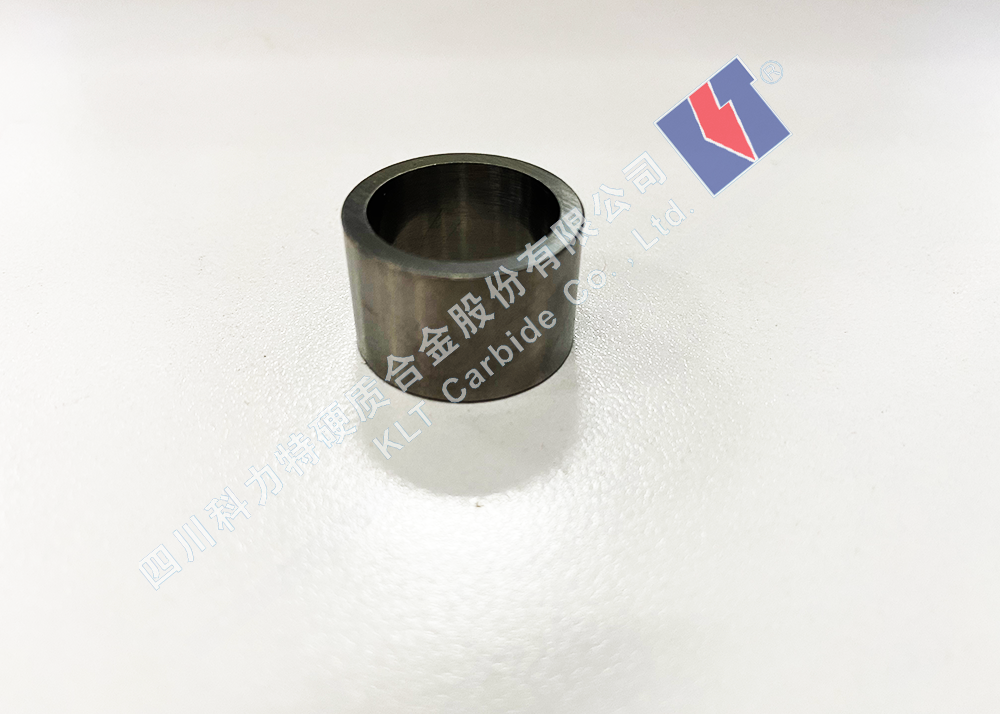

This product is a tungsten carbide shaft sleeve used for mechanical wear-resistant accessories and mouth cutters, customized according to customer drawings. Polishing the inner and outer mirrors makes the internal and outer friction coefficients smaller and more wear-resistant

Tungsten Carbide Water Shaft Bushing Sleeve With Inner Petal-3 Flaps produced by our company have several advantages

A. High hardness, abrasion resistance and durability increase by 30%, high product accuracy
B, 100% strict production and processing according to drawings
C. Adopt scientific and advanced process equipment, 100% ensure product quality
D. Industry-leading after-sales protection, 100% return of defective products.

Application field
* Mining industry
* Automotive industry
* Engineering industry
* Construction industry
* Petrochemical industry
* Customer-related industries

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

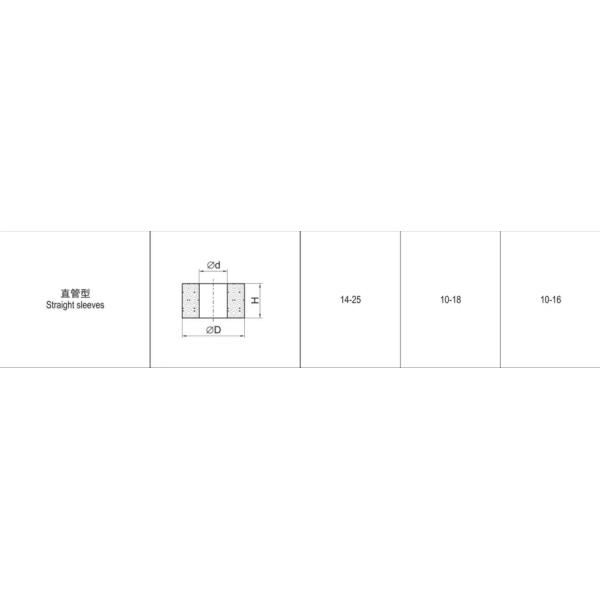

Reference Drawing

Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper

Production Show

Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Customer Visit:

Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper

Compact Shaft Reducer Bushing / Submersible Pump Sleeve For Water Supply In Skyscraper
