Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
Specifications
Brand Name :
KLT
Model Number :
Shaft Bushing Sleeve Type T
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Guanghan
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Sleeve
Material :
tungsten carbide
Size :
Customizable
Surface :
polished or as request
Grade :
YG8 YG6 YG10X YN6 YN8 YN9
Advantage :
high wear resistance,Superior wear-resistance,Superior wear-resistance and impact toughness,corrosion resisting,long life time
Price :
To be negotiated
Description

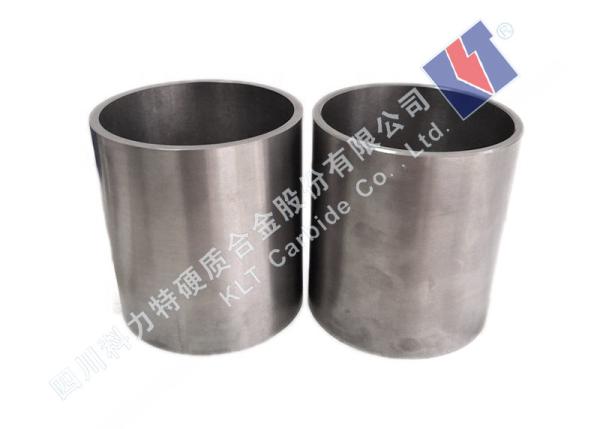

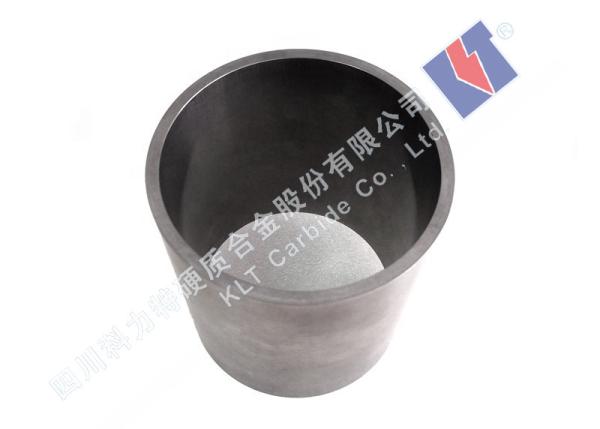

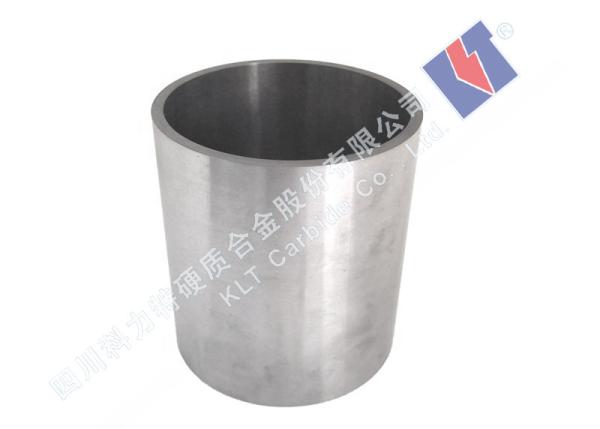

Tungsten Carbide Shaft Bushing Sleeve High Hardness Abrasion Resistance For Water Pump

Product Description

Tungsten carbide shaft sleeves are often used in water pump, oil pump and other various pumps, especially used for high pressure or corrosion resistance pumps. It's used to seal the clearance between the rotating shaft and the stationary housing in equipment, such as pumps and mixers, so that liquid can not leak out through this clearance.

tungsten carbide sleeves are used mainly for rotating support,aligning anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotation, sand lash abrasion and gas corrosion in the oil field, such as slide bearing sleeve, motor axle sleeve, aligning bearing sleeve, anti-thrust bearing sleeve and seal axle sleeves.

Shaft Bushing Sleeve produced by our company have several advantages

A. High hardness, abrasion resistance and durability increase by 30%, high product accuracy
B, 100% strict production and processing according to drawings
C. Adopt scientific and advanced process equipment, 100% ensure product quality
D. Industry-leading after-sales protection, 100% return of defective products.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Our Quality Contral

Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade

Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade

Excellent Hardness Tungsten Carbide Sleeve Abrasion Resistance Yn6 Yn8 Yn9 Grade
