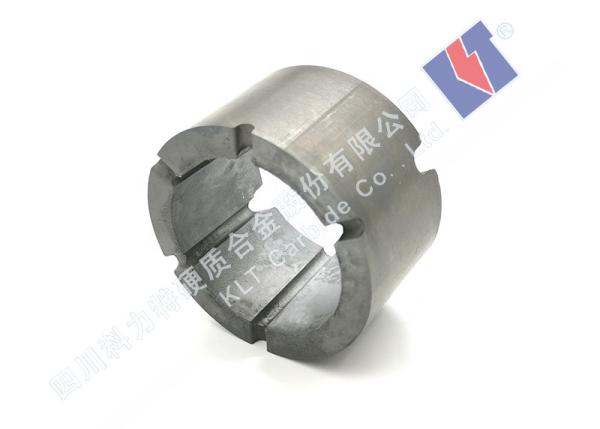

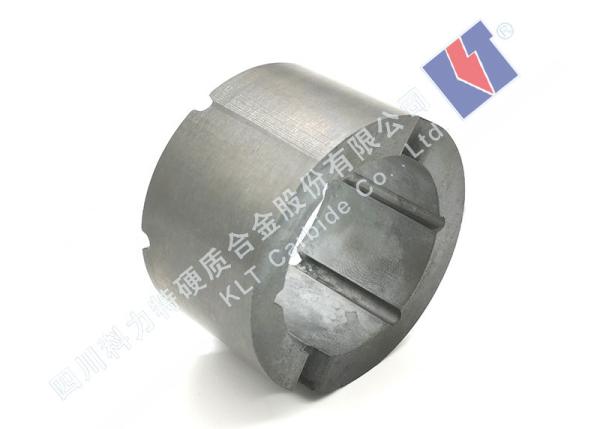

Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
Specifications
Brand Name :
KLT
Model Number :
Bushing Sleeves With Spiral Grooves
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Guanghan
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Sleeve
Application :
Oil Field,oil pump and other pump
Product name :
Bushing/bush/sleeve/tube
Grade :
YG8 YG6 YG10X YN6 YN8 YN9
Size :
Standard & Customizable
Surface :
polished or as request,and unground
Price :
To be negotiated
Description

WC+Co/WC+Ni Wire Cutting Custom Made Tungsten Carbide Shaft Sleeve Blank High Hardness

Product Description

KLT Carbide has many kinds of tungsten carbide bushing products, Tungsten Carbide Drilling Components tungsten carbide drill bushings with good materials, excellent performance and good wear resistance. To make our carbide bushings high machining accuracy, keeping operation precision, prolong the life time of rolling axletree, we strictly control our quality, and have a high reputation in oil and natural gas industry. We produce many OEM carbide sleeves for our clients all over the world.

Bushing Sleeves produced by our company have several advantages

1. Use 100% Raw material, strict incoming inspection.

2. Over pressure sintering, increasing the densification of the alloy teeth and increasing the 30% life span.

3. Can be customized according to the requirements of the customer.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Production Show

Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Our Quality Contral

Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness

Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness

Wc+Co/Wc+Ni Wire Cutting Tungsten Carbide Sleeve Blank High Hardness
