Cemented Tungsten Carbide Pump Shaft Sleeve Bearing In Oil Field Utility
Cemented Tungsten Carbide Pump Shaft Sleeve Bearing In Oil Field Utility
Cemented Tungsten Carbide Pump Shaft Sleeve Bearing In Oil Field Utility
Cemented Tungsten Carbide Pump Shaft Sleeve Bearing In Oil Field Utility
Specifications
Brand Name :
KLT
Model Number :
Straight Shaft Bushing Sleeve
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material :
tungsten carbide
Application :
Oil Field,oil pump and other pump
Product name :
Bushing/bush/sleeve/tube
Size :
Customizable
Features :
corrosion resistance
Surface :
polished or as request,grinded,Blank
Price :
To be negotiated
Description

Shaft Sleeve Bearing In Oil Field Utility Tungsten Carbide Tube Bushing Oil Pump Excellent Wear Resistant

Product Description

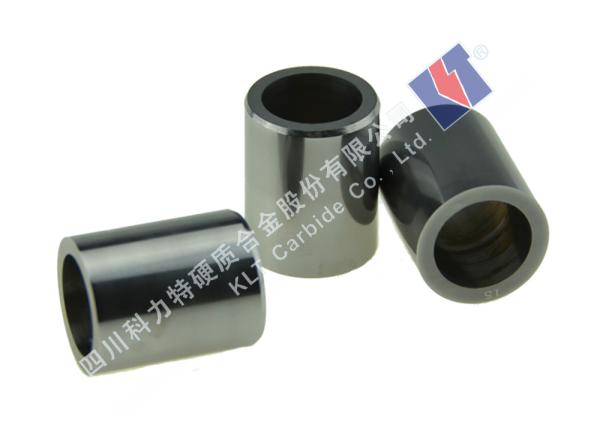

The cemented carbide shaft sleeves play the role of locating or positioning,supporting and protecting the rotational shafts from wearing.It possesses superior wear resistance,low friction coefficient,good toughness and long service life.They are widely used as wear parts in various machinery,such as motorized equipment,hydraulic systems and oil well artificial lift systems like electric submersible pumps(ESPs),centrifugal pumps,and other turbo machinery.

Straight Shaft Bushing Sleeve Tungsten Carbide With Keyway produced by our company have several advantages

1. Quality guarantee:

Raw material quality: Each batch materials have been recorded and can be traced. Besides, each batch materials have be sample inspected.

Finished products quality: 100% full inspected

2. Strong technology:

The physical and chemical properties of our products are higher than the industry standard ,GB.

3. Can receive order of shaped parts:

We have strong development capability , can provide the best solution to customer according to the requirements of working condition ,such as raw material choosing.

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Customer Visit:

Cemented Tungsten Carbide Pump Shaft Sleeve Bearing In Oil Field Utility

Cemented Tungsten Carbide Pump Shaft Sleeve Bearing In Oil Field Utility
