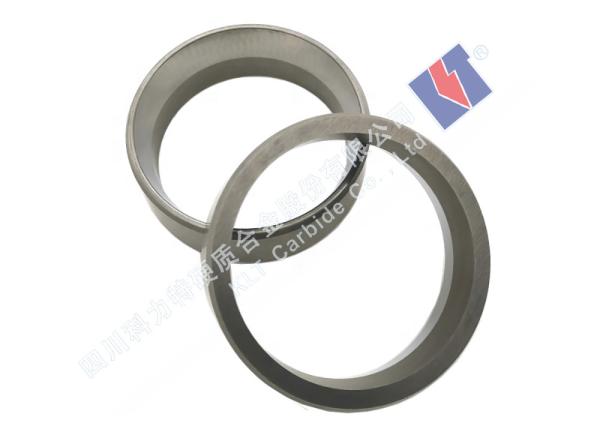

Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products
Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products
Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products
Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products
Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products
Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products
Specifications
Brand Name :
KLT
Model Number :
Inlaid Carbide Seal-ring/Bearing type A3
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Guanghan
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material :
tungsten carbide
Application :
Pump
Size :
Standard or Customized,OEM accepted,can be customized
Keywords :
tungsten carbide seal ring
Feature :
good Sealing Performance
Process engineer :
adopt advanced technology
Price :
To be negotiated
Description

YG6/YG8/YG10 Customized Custom Made Tungsten Cemented Carbide O Ring For Mechanical Sealing


Product Description

Tungsten carbide is the most excellent seal face material in the seal material world. One of main reasons for using Tungsten Carbide is the additional wear resistance that can be achieved in both moving and static parts. This is particular the case in serve service conditions, such as high temperature, and high levels of corrosion and abrasion.

It is widely used in oil refineries, petrochemical industries, fertilizer plants, petrochemical plants, Pharmaceutical industries.


We are an ISO certified carbide supplier,and expert in producing OEM parts with excellent quality according to your specific needs.Tungsten Carbide Seal Rings are used as Seal faces in pump and seal, Compressors and Agitators. It is often applied in Oil Refineries, Fertilizer Plants,Petrochemical plants,Pharmaceutical/Drugs industries.
Tungsten Carbide Rings are usually made with Cobalt (Co) as binder material. Nickel(Ni) Bonded Rings are also supplied.

Feature

1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6. ISO 9001 Certification

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Production show

Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products

Production line

Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products

Why choose us

Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Our Quality Contral

Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products

Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products

Good Thermal Conductivity Tungsten O Rings / Tungsten Carbide Products
