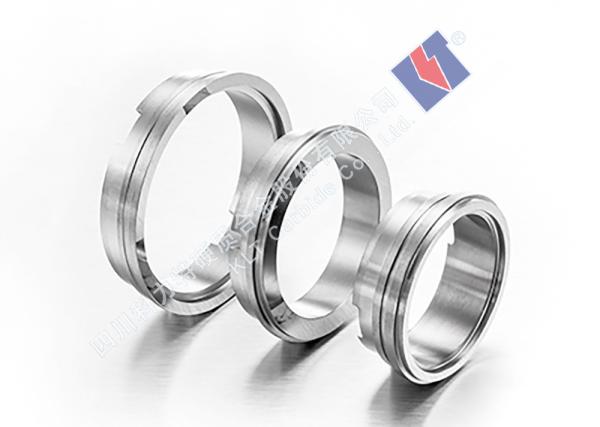

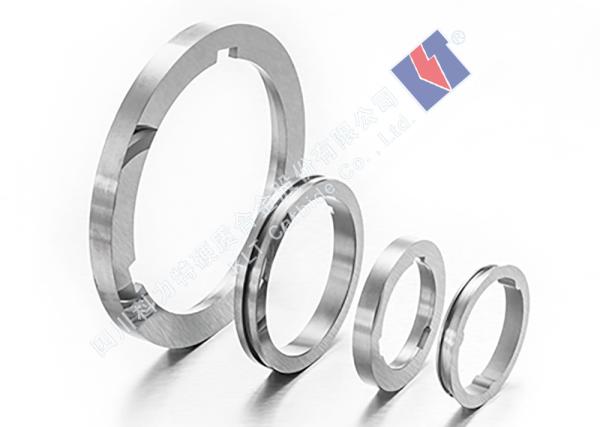

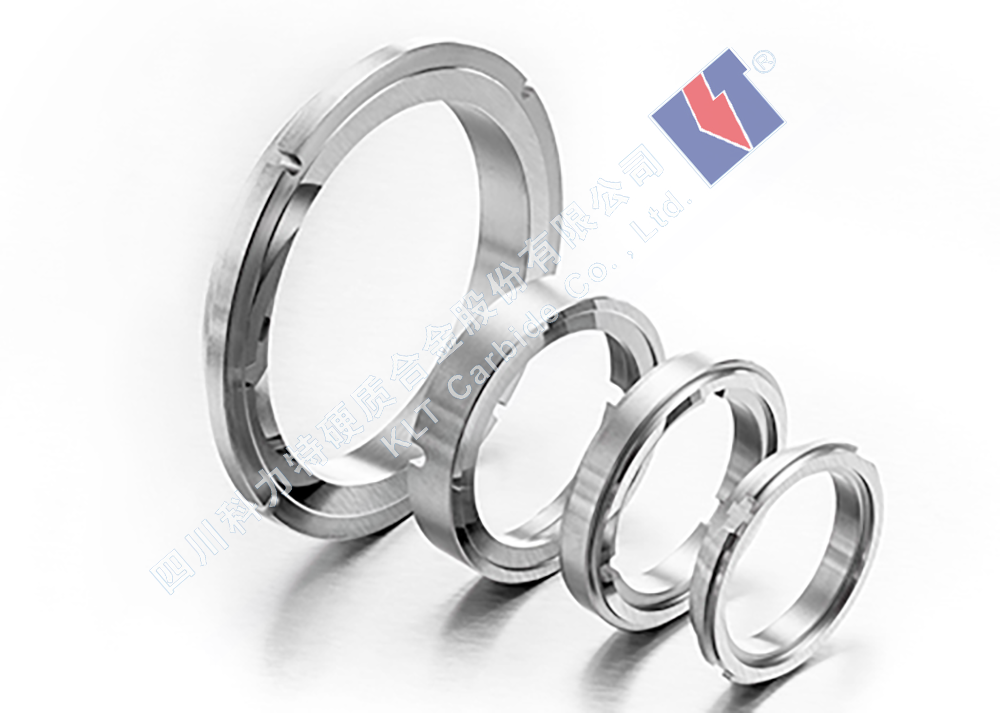

Durable Stationary Oil Seal Ring / Tungsten Carbide Bearings Anti Corrosive
Durable Stationary Oil Seal Ring / Tungsten Carbide Bearings Anti Corrosive
Durable Stationary Oil Seal Ring / Tungsten Carbide Bearings Anti Corrosive
Durable Stationary Oil Seal Ring / Tungsten Carbide Bearings Anti Corrosive
Specifications
Brand Name :
KLT
Model Number :
Tungsten Carbide Seal Rings
Place of Origin :
Guanghan
Certification :
ISO9001:2008; ISO14001:2004
MOQ :
10 Pcs
Packaging Details :
Box
Delivery Time :
35 Days
Supply Ability :
40 Tons Per Months
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material :
tungsten carbide
Standard or nonstandard :
Standard or Nonstandard
Style :
Mechanical Seal
Application :
Oil Refineries/Petrochemical plants/Fertilizer Plants/etc
Size :
Standard or Customized
Grade :
YG6,YG8,YG20/YG20C/YG25
Price :
To be negotiated
Description

Manufactured High Quality Carbide Stationary Oil Floating Seal-ring/Bearing High Precision OEM ODM


Product Description


Tungsten Carbide Rings are usually made with Cobalt (Co) as binder material. Nickel(Ni) Bonded Rings are also supplied.
We provide our clients with high quality Tungsten Carbide roll rings and composite rolls for rolling wire rods and merchant bars.
The superior wear resistance characteristics of TC roll rings provide you the highest pass performance in addition to the excellent surface finish.
Tungsten carbide roll rings are the standard application in high speed wire rod finishing block and is getting more popular in some other hot and cold forming applications.

Features:

1. High and low temperature resistant

2. Acid-alkali and resistant

3. High efficiency of heat-conduction

4. Aging / weather / wear resistant

5. Chemical corrosion-resistant

6. Heat shock stability

7. Self-lubrication

8. High performance of mechanical strength

9. Good insulation property

10. Anti-toxic, good air-permeable, etc

Grade and Properties
Grade Chemical properties Physical and mechanical properties
WC Co Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YG6 Balance 5.8～6.2 ≤0.5% 14.75～15.0 91.0～92.5 2000(2500)
YG8 Balance 7.8～8.2 ≤1% 14.5～14.9 90.5～92.0 2100(2800)
YG10 Balance 9.8～10.3 0% 14.2～14.6 89.0～91.0 2600(3200)
YG13 Balance 12.7～13.2 ≤1% 14.0～14.3 87.0～89.0 2400(3000)
YG20 Balance 19.5～20.5 0% 13.4～13.6 83.0～85.0 2600(3000)
Grade Chemical properties Physical and mechanical properties
WC Ni Additive Density Hardness HRA Bending Strength
g/cm3 (HV) (N/mm2)
≥
YN6 Balance 6.5～7.5 ≤1% 14.5～14.8 89.0～92.0 1800(2200)
YN8 Balance 8.0～9.0 ≤1% 14.4～14.8 88.0～91.0 2000(2300)
YN10 Balance 9.75～10.25 ≤0.5% 14.2～14.6 87.5～90.0 2100
YN12 Balance 11.8～12.5 ≤1.5% 13.9～14.2 88.0～89.0 2485

Production show

Durable Stationary Oil Seal Ring / Tungsten Carbide Bearings Anti Corrosive

Production line

Durable Stationary Oil Seal Ring / Tungsten Carbide Bearings Anti Corrosive

Why choose us

Durable Stationary Oil Seal Ring / Tungsten Carbide Bearings Anti Corrosive

Packaging & Delivery

Packing Details:

Plastic Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q&A

Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock.

Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.
