Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Customized Sintered Tungsten Carbide Cylinders For Cutting Tools
Specifications
Place of Origin :
China
Brand Name :
Sanxin
Certification :
ISO
MOQ :
1 piece
Price :
Negotiable
Packaging Details :
Safety Packing
Delivery Time :
15~45 Days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10-50000pcs/month
Model Number :
SX2183
Name :
Cemented Carbide (Tungsten Steel) Cylinder
Type :
Carbide (tungsten steel) rod
Model :
Carbide (tungsten steel) bar
Quality :
High wear resistance and hardness
Binder :
Nickel binder, Cobalt binder
Feedback :
within 24 hours
Diameter :
Standard 2~32mm/OEM
Surface Treatment :
Blank/ Polished
Corrosion Resistance :
Excellent
Alternative :
Pure tungsten bar, Tungsten Alloy bar
Description

Customized Sintered Tungsten Carbide Cylinders for Cutting Tools

We supply various material grades includes standard YG8, YG6, YG6X, etc. Using good carbide is like using thin kerf saw blades.

Tungsten​ Carbide Cylinders:

1. 100% virgin material
2. Various sizes and full types stock available
3. Products can be customized upon requirement

Features of tungsten carbide rod:

As for tungsten carbide rod, below are the general features for your reference:
1. Better wear resistance, higher toughness, better deformation and fracture resistance, results in a long life and good size accuracy
2. Adopt advanced automatic extrusion equipment
3. HIP sintering and precision grinding to ensure the good performance
4. Both blank and finished tungsten carbide rods available
5. Can reach a mirror effect surface after accurate grinding and polishing

For more details of specific type, please inform us.

Applications:

For making the drill bits, end-mills, reamers

Technical parameters

Properties and application of tungsten steel round rod material

Grade Co% Hardness (HRA) Density (g/cm³) Bending strength (Mpa) Elastic Modulus (Gpa) Suitable processing materials
SX10F 6 92.9 14.8 3300 530 Copper aluminum alloy, PCB, glass fiber reinforced material, brake material, graphite
SX11F 8 92.3 14.6 3800 510 Aluminum alloy, hardened steel, chilled cast iron, brake material
SX12F 9 93.8 14.4 5100 500 Stainless steel, high hardened steel, especially suitable for high speed cutting and dry cutting of metals
SX20F 10 91.7 14.4 4300 490 Strong versatility, mainly suitable for gray cast iron, chilled cast iron, alloy steel, etc.
SX25F 12 92.5 14.1 4500 460 Superalloy, stainless steel, titanium alloy, hardened steel, tap

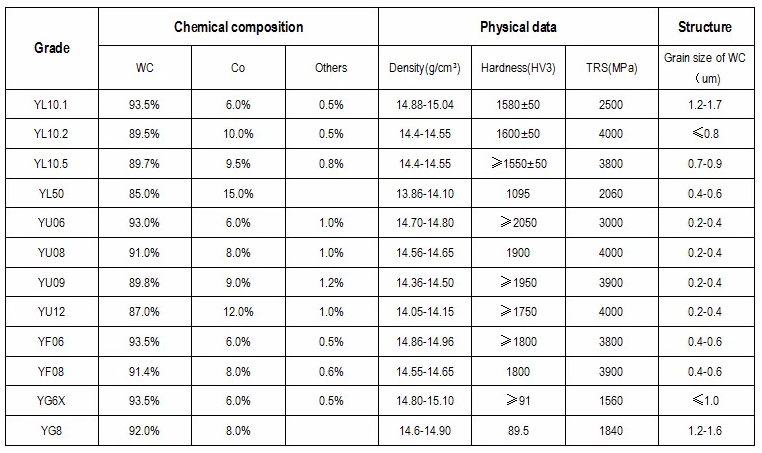

The following grades of tungsten carbide rod for your reference:

Customized Sintered Tungsten Carbide Cylinders For Cutting Tools

Production Process

Customized Sintered Tungsten Carbide Cylinders For Cutting Tools

Why choose us:

We always implement these business policies of "quality first, customer first"; "both wholesale and retail are welcome, excellent price for large quantity"; "timely delivery, mutual benefit and simultaneous growth with customer " to expand ourselves in the market.
