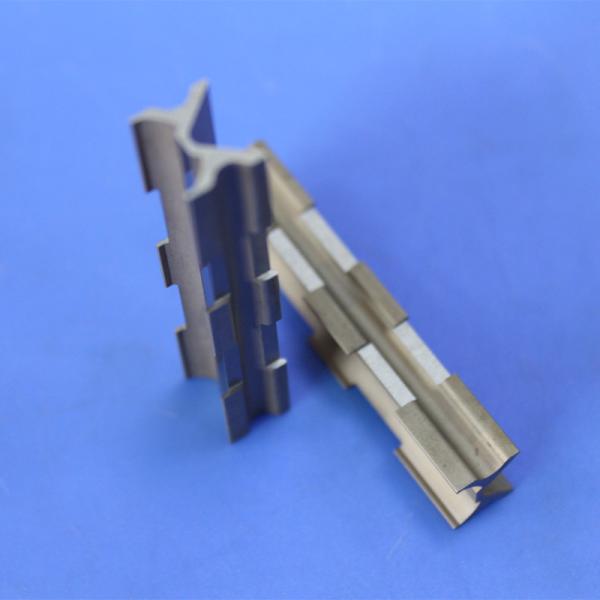

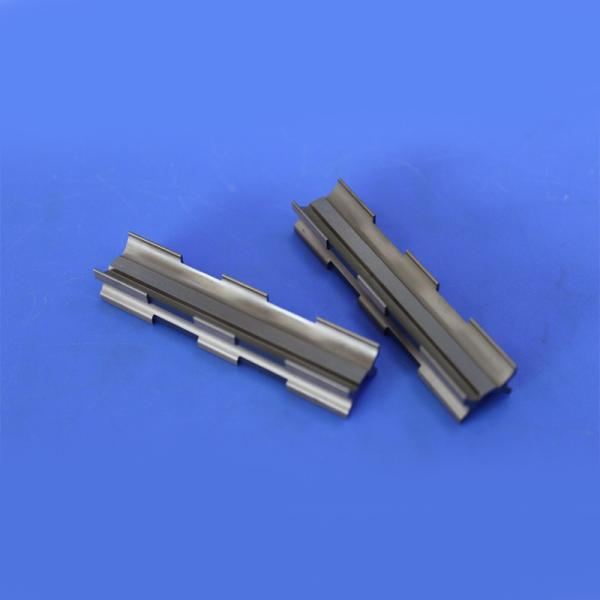

Complex Customized Tungsten Carbide Wear Parts Mold Core Insert

Creating complex customized tungsten carbide wear parts mold core inserts involves precision engineering and manufacturing processes.

1. Design Phase:

   • In the design phase, engineers work closely with the client to understand the specific requirements for the tungsten carbide wear parts mold core insert. This involves detailing the dimensions, shapes, tolerances, surface finishes, and any other custom features required for the application.

2. CAD Modeling:

   • Using Computer-Aided Design (CAD) software, the design specifications are converted into detailed 3D models of the mold core insert. This step allows for virtual testing and validation of the design before actual manufacturing begins.

3. Material Selection:

   • Tungsten carbide is chosen for its exceptional hardness, wear resistance, and toughness. The specific grade of tungsten carbide is selected based on the intended application and the level of wear resistance required.

4. Manufacturing:

   • The manufacturing process typically involves precision machining methods such as CNC milling, turning, grinding, or electrical discharge machining (EDM) to shape the tungsten carbide material into the complex mold core insert as per the CAD design.

5. Heat Treatment:

   • Tungsten carbide parts may undergo heat treatment processes to enhance their hardness, toughness, and overall performance characteristics. This step can further improve the wear resistance and durability of the mold core insert.

6. Surface Finishing:

   • After machining, the mold core insert may undergo surface finishing processes such as grinding, polishing, or coating to achieve the desired surface quality, precision, and performance.

7. Quality Control:

   • Throughout the manufacturing process, quality control checks are conducted to ensure that the tungsten carbide wear parts mold core insert meets the specified dimensional tolerances, surface finish requirements, and overall quality standards.

8. Testing and Validation:

   • Once manufactured, the mold core insert is tested to validate its performance under simulated conditions, ensuring that it meets the client's requirements for accuracy, durability, and wear resistance.

By following a meticulous process of design, material selection, precision manufacturing, quality control, and testing, complex customized tungsten carbide wear parts mold core inserts can be produced to meet the demanding needs of various industrial applications requiring high wear resistance and precision molding capabilities.

Tungsten carbide, known for its exceptional hardness and durability, finds versatile applications in various industries:

• Cutting Tools: Ideal for creating hardened tips and cutting edges in drills, end mills, and more.


• Wear Parts: Provides excellent wear-resistance for items like bulldozer blades and excavator teeth.


• Dies and Molds: Withstands high pressure and repeated use in metal and plastic shaping.


• Orthopedic Implants: Meets biocompatibility and strength requirements for joint replacement components.


• Drill Bits: Durable material for efficient drilling in oil and gas fields.


• Wind Turbine Components: Ensures durability in gear systems and blade pitch mechanisms.


• Exploration Equipment: Key component in coring bits and core drills for hardness.


• Abrasives: Processed into particles for polishing and grinding applications.


• Jewelry Industry: Used in decorative components like rings and cufflinks due to its density and color properties.

For high-quality tungsten carbide products, trust Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd. to deliver exceptional performance and reliability.
