Specifications
Brand Name :
Sanxin
Model Number :
SX0996
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
USD 43/KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10-50000pcs/month
Delivery Time :
15~45 Days
Packaging Details :
Safety Packing
Name :
Tungsten carbide composite rod
Dimension :
Customized
Material :
Virgin Tungsten carbide Grains
Type :
Tungsten Steel Alloy
Model :
tungsten carbide + copper/nickel
Color :
Bright yellow, golden, silver
Description

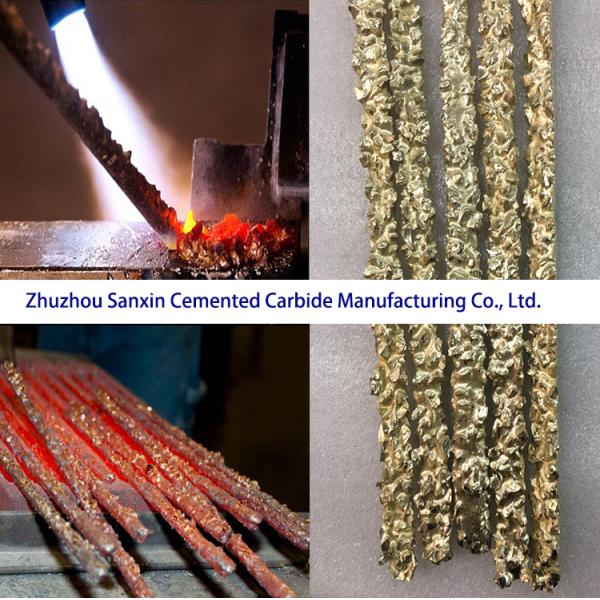

Tungsten Carbide Composite Rod

Steel Cutting Grades of Tungsten Carbide Composite Rod, Special Tungsten Carbide Bar for Oil Industry Parts
With the application of downhole tool engineering, this kind of tungsten carbide rod is mainly used for downhole milling ability.
The tungsten carbide blocks with sharp edges and corners are knocked off from top grade of 100% virgin raw material, which holding superior hot- resistance and abrasion performance.
Therefore, our tungsten carbide composite rod providing longer life.

Technical parameters:

The sizes of diameter from 1-13.5mm are all available. The rod length can be customized on your request.

Like, 1/16” tungsten carbide grain rods, or 3/16” carbide rods. And the rods are all made of virgin tungsten carbide with the top hot-resistance and abrasion performance.

You can choose two items as follows,

A: tungsten carbide + copper(Cu) a little yellow color

B: tungsten carbide + nickel (Ni) a light white color

Grain size measurements:
1 1.6-3.2mm
2 3.2-4.8mm
3 4.8-6.4mm
4 6.4-8.0mm
5 8.0-9.5mm
6 …

For the technical data, please refer to wolfram carbide grade YG8.
The hardness is above HRA 90, and the particles, which have the best wear resistance among hard alloys, are made of carbide top hammers.
Carbide top hammer, which is a key component of the ultra-high pressure and high temperature device to synthesize artificial diamond by static pressure method.
Most of the top hammers are made of tungsten drill series cemented carbide, which has high strength, wear resistance, good toughness, and thermal stability.

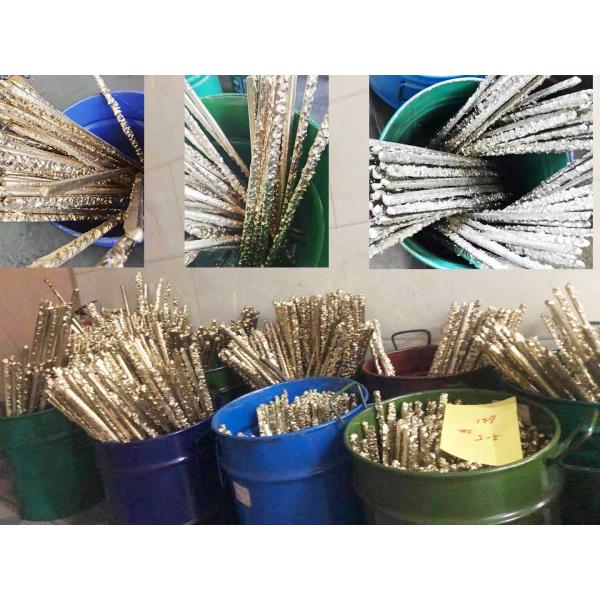

In stock and Producing Capacity:

In stock sizes diameter from 5-18mm*330mm length.
Not only with huge stock, but also have very high producing capacity: 100 ton/month.

Packing Information:

The standard packing list will be:paper carton, about 25kg/carton, carton size: 61×49×12cm

Advantages:
1, Steel cutting grades of tungsten carbide
2, Sharp, angular and chunky fragments
3, Made with high tensile brazing ally
