Specifications
Brand Name :
Sanxin
Model Number :
SX0026-8
Certification :
ISO
Place of Origin :
China
MOQ :
500 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs/month
Delivery Time :
15~45 Days
Packaging Details :
Safety Packing
Type :
Construction Tool Parts,wear resistant parts,tungsten carbide wear resistance
Material :
100% Virgin Tungsten Carbide,Tungsten Carbide WC+Co
Size :
Customized,OEM Accepted,Customer Requst
Surface :
Finish,rough grinding,Polished Grinding
Grade :
YK05/YK06/YG8/YG20,YG11,etc
Shape :
Spherical,flat-top,cone,Round or other,parabolic
Service :
OEM&ODM
Description

Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties

Spherical Carbide Buttons: Precision Tools for Superior Performance
Introducing our high-quality carbide spherical buttons, meticulously crafted to elevate drilling and excavation operations to new levels of efficiency and effectiveness.
These precision-engineered tools are designed to withstand the toughest conditions while delivering exceptional performance in various applications.

Cemented carbide is a kind of composite material which is made of refractory metal hard compounds (WC, TiC, etc.) and bonding metals (CO, Ni, Fe, etc.) by powder metallurgy. Cemented carbide has high hardness, high wear resistance, high strength, high modulus of elasticity, low coefficient of thermal expansion, high red hardness and stable chemical properties.

Standard Specifications:

Dimensions(mm) Density
(g/cm3)		 Hardness
(HRA)		 TRS(Mpa)
Diameter Height
20 25 14.50 87.50 2400
22 35 14.50 86.00 2480
24.8 33 14.50 86.50 2600
25 35 　 　 　
26.5 38 　 　 　

Tungsten Carbide Buttons can be customized according to your drawing to match your drilling tools, too.

It has complex application environment, engaged in underground coal mining with unclear geological components, and high-power equipment such as propulsion force and shear force, which requires the tungsten carbide buttons to have good impact resistance, heat resistance and wear resistance.

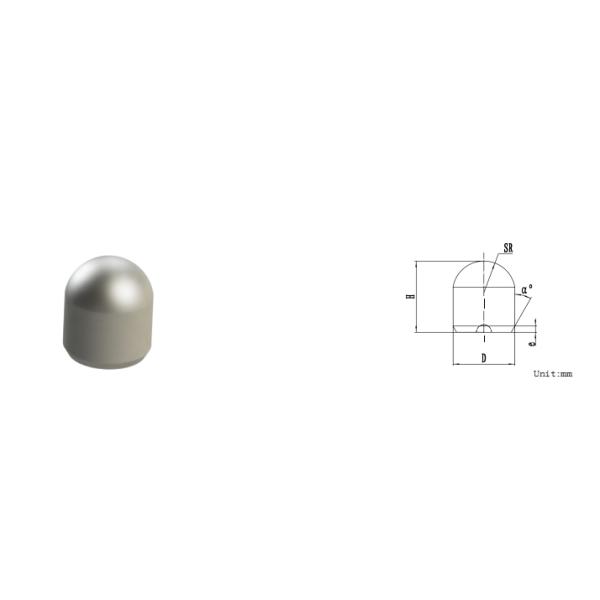

Spherical buttons for tri-cone drill bits

Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties

Type Dimension
D H SR a° e
ZQ11.5*12.5KP 11.25 12.5 6.0 18 2.0
ZQ13*13.5KP 13.25 13.5 6.7 18 2.5
ZQ14*14.5KP 14.5 14.5 7.2 18 2.5

Spherical buttons for high pressure DTH drilling

Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties

Spherical buttons for high pressure DTH drilling
Type Dimension
D H SR a° P°
ZQ14*20K(P) 14.2 20 7.2 18 27
ZQ16*22K(P) 16.25 22 9 18 27
ZQ18*25K 18.35 25 9.2 18 30

Spherical buttons for shield machine hob

Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties

Spherical buttons for shield machine hob
Type Dimension
D H SR a° P°
ZQ16*23KP 16.25 23 9 18 1.8
ZQ16*21KP 16.25 21 9 18 1.8

Applications:

Polyconical, Parabolic and Mushroom Tungsten carbide buttons, are the general buttons shapes for coal mining series.

Suitable for welding coal mining, coal mining machine in mid-soft rock formation, tunnel excavation in hard rock formation, drilling on extra hard rock formation or tunnel excavation in complicated rock formation.

Spherical Buttons Tungsten Carbide Inserts Stable Chemical Properties
