Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies
Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies
Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies
Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies
Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies
Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies
Specifications
Brand Name :
Rixin
Model Number :
YG15
Certification :
CE ROHS UL
Place of Origin :
China
MOQ :
5KG
Payment Terms :
L/C, T/T
Supply Ability :
50+tons+per month
Delivery Time :
7-20 days
Packaging Details :
carton
Price :
USD + 32~65 + KG
Product name :
carbide board
Material :
tungsten carbide
Density :
14.0
Hardness :
87.0 HRA
Thickness :
1.5-66mm
T.R.S :
3000 MPa
Application :
wear-resistant parts
Customize :
Yes
Finish :
Blank/polish/ground
Description

Density 14.0 Tungsten Carbide Wear Plate / Board For Manufacturing Punching Dies


Specification of carbide board

Tungsten carbide plates gets perfect microstructure, good wear resistance and high strength.
Below are sizes available for now, aslo we can customize for you.

Grade Density Hardness T.R.S Performance&application recommended
g/cm3 HRA Mpa
YG6A 14.85 92.5 2000 Fine grain alloy,good wear resistance,it is suitable for manufacturing forming cutter,wear-resistant parts etc
YG8 14.7 89.8 2800 High bending strength,wear resistance lower than YG6A,suitable for manufacturing forming cutter,wear-resistance part etc
YG11 14.4 88.5 2900
YG15 14 87 3000 suitable for manufacturing punching dies,wear-resistant parts
YG20 13.5 85.5 2800 High bending strength,suitable for manufacturing progressive dies and other punching dies.
YG13X 14.2 90 3200
YS2T 14.25 92 2500 Fine grain alloy,with high wear resistance,bending strength,bonding resistance and thermal strength,it is suitable for maching refractory alloys,stainless steel,high manganese steel,etc

Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies

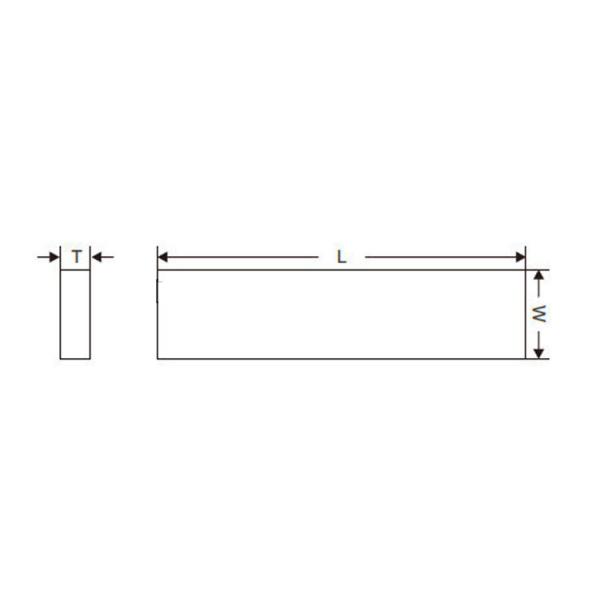

L W S
200 200 15-45
150 150 15-45
150 100 15-45
150 130 15-45
150 80 15-45
120 120 15-45
100 100 15-50
100 50 15-50
100 45 15-50
80 55 10-50
80 40 10-50
70 35 5-50
45 25 3-20
35 19 5-30
20 20 5-20
18 13 5-20
... ... ...

Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies

Production of carbide board

step one, when we received and confirmed customer orders, we sill start to grind, dry, screen raw material to make powder.

step two, start to manual press into shape by manual machine.

step three, semi products inspection, check every carbide board if has hole,broke,laminating ect

step four, after inspection, then we will put carbide board into sintering furnance to sinter, carbide board blanks will reach high wear resistance and strength through high temperature sintering.

step five, grinding and surface treatment, if customer has tolerance requirement, we will grind carbide board blanks, then clean surface and sand blast.

Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies


Company brief overview


Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of 2001 with the investment of RMB 40 million. We have up-to-date production machine line and a lot of technicians.

Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten carbide hometown , convenient transportation, from changsha airport just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours. A favorable peripheral environment for cemented carbide manufacturing provides a natural barrier. Convenient traffic for tomorrow's internationalization laid a wide road.

Density 14.0 Tungsten Carbide Wear Plate / board For Manufacturing Punching Dies

We specialize in various of tungsten carbide products. Our products are sold to the UK, Europe, Japan, Korea, Taiwan area and Southeast Asia.
