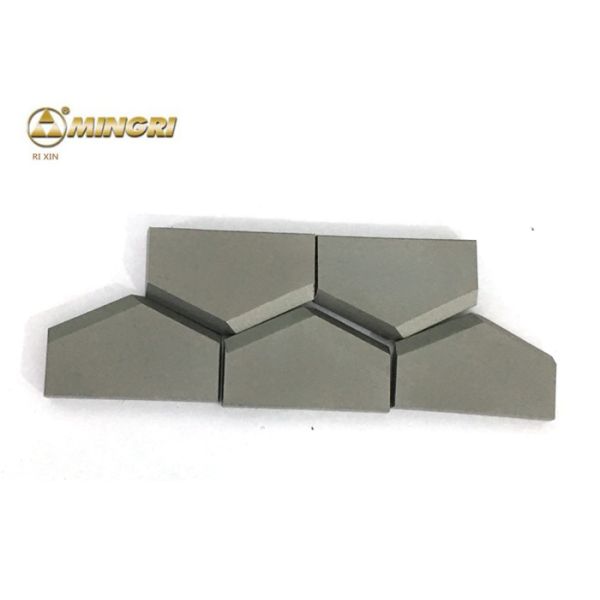

K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools
K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools
K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools
K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools
Specifications
Brand Name :
Rixin
Model Number :
customized
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
10kg
Price :
USD + 32~62 + KG
Payment Terms :
L/C, T/T
Supply Ability :
50+tons+per month
Delivery Time :
5-15 days
Packaging Details :
cartons
Product name :
tungsten carbide tips
Keyword :
tungsten carbide tips
Material :
Tungsten Carbide
Grade :
K10
Application :
drill steel reinforced concrete wall
Features :
Super quality / long using life
Description

razed on hammer drill bit power tools Tungsten cemented carbide Tips


advantage of tungsten carbide tips

Product Name: tungsten carbide tips

Material: 92% tungsten carbide + 8% Co

Standard: ISO

Material: MR300,MR600,MR800,MR8-B

Application: widely used for drilling building, geology and coal mining and heavy rock

Grade

Density

g/cm3

Hardness

HRA

T.R.S

MPa

 Property & Application ISO
MR300 15.1 94 1700 Used for non-ferrous and non-metal bore drilling K01
MR600 14.95 90.5 2400 Widely used for electric drill in special condition, also used for electric dill or pneumatic drill for building, geology and coal mining. K15
MR600A 14.75 91.5 2400 K10
MR800 14.7 89.8 2600 Suitable for all kinds of cement drill bits, or electric dill or pneumatic drill for building and geology. K20
MR8-B 14.7 88.5 2700 Suitable for harder rock or rock with hard stratum or metallic rock. K20


Description of tungsten carbide tips


K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools
S type electric hammer dill bits:

Specification D mm Tolerance W mm Tolerance T mm Tolerance B° A
3 3

+0.35

+0.22

 3.5

+0.2

0

 1.0

+0

-0.1

 20 0.2
4 4 4.5 1.2 0.3
5 5 5.0 1.5 0.4
6 6 5.7 1.4 0.5
6.2 6.0 5.1 1.75 0.5
6.5 6.5 5.3 1.6 0.5
7 7 5.7 1.6 0.5
8 8

+0.38

+0.22

 6.3 1.8 0.6
8.5 8.5 6.5

+0.3

0

 1.8 0.6
9 9 6.5 1.8 0.6
10 10 7.3 2.0 0.7
10.5 10.5 7.3 2.0 0.7
12 12 8.0 2.2 0.8
12.5 12.5 8.0 2.2 30 0.8
12.7 12.7 8.0 2.2 0.8
14 14

+0.45

+0.26

 9.0 2.6 1.0
15 15 10

+0.5

0

 2.8 0.8
16 16 10 2.8 1.0
17 17 10 2.8 1.0
18 18 11 3.2 1.2
19 19

+0.5

+0.28

 11 3.2 1.2
20 20 13 3.2 1.3
22 22 14 3.5 1.3
24 24 15 4.0 1.3
25 25 15 4.0 1.3
26 26 15 4.5 1.6
32 32

+0.55

+0.3

 19.5 5.5 1.7

All kinds of non-standard drill bits and eccentric drill bits can be customized as per customers’ requirements.

D type electric hammer dill bits:

Specification D(mm) W(mm) T(mm)
4 4.37 3.40 1.00
4.17 3.20 0.93
5 5.37 4.20 1.20
5.17 4.00 1.13
6 6.37 5.00 1.40
6.17 4.80 1.30
6.5 6.78 5.84 1.52
6.63 5.58 1.45
7 7.42 5.80 1.60
7.22 5.60 1.50
8 8.42 5.90 1.80
8.22 5.60 1.70
8.5 8.47 6.85 1.52
8.32 6.60 1.45
10 10.42 7.30 2.20
10.22 7.00 2.05
10.11 10.08 8.37 1.98
9.93 8.12 1.91
12 12.47 8.70 2.50
12.22 8.40 2.35
13 13.43 11.30 2.31
13.23 10.92 2.21
14 14.47 10.10 2.80
14.22 9.80 2.62
15.04 15.01 12.36 2.31
14.80 11.98 2.21
16 16.47 10.10 2.20
16.22 9.60 2.02
16.76 16.73 13.33 2.31
16.53 12.95 2.21
19 19.40 12.00 2.50
19.25 11.50 2.32
22 22.49 13.00 2.50
22.26 12.50 2.30
25 25.49 15.50 3.00
25.26 15.00 2.80
All kinds of non-standard drill bits and eccentric drill bits can be customized as per customers’ requirements



Production features of tungsten carbide tips

K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools



Packing and delivery of tungsten carbide tips

wrapped tungsten carbide bits in plastic bottle to avoid tungsten carbide bits to broke →

put the tungsten carbide bits in inner small carton box →

put the inner box into outter carton and fill the carton with foamed plastic →

wrap the carton with packaging tape →

you can choose any delivery way such as DHL,TNT,UPS ect.
K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools

Company brief introduction

1, Strong production capacity. We own mature production technology, process, various TPA press, large tonnage of hydraulic press and HIP furnace, ensuring pressing quality and sintering capacity achieving 500KG per time. We can guarantee uniformity and stability of mass production.

2, Strong R&D team. Professional engineers serve for clients, recommending product and grades as per your applications. They also offer best after-sale service.They support customization of products as per requirements, and ensure high working efficiency and product quality.

4, Successful cooperation case: We cooperate with clients in domestic and abroad, and get good feedback from them.


K10 Grade Tungsten Carbide Tips Razed On Hammer Drill Bit Power Tools

Product tags

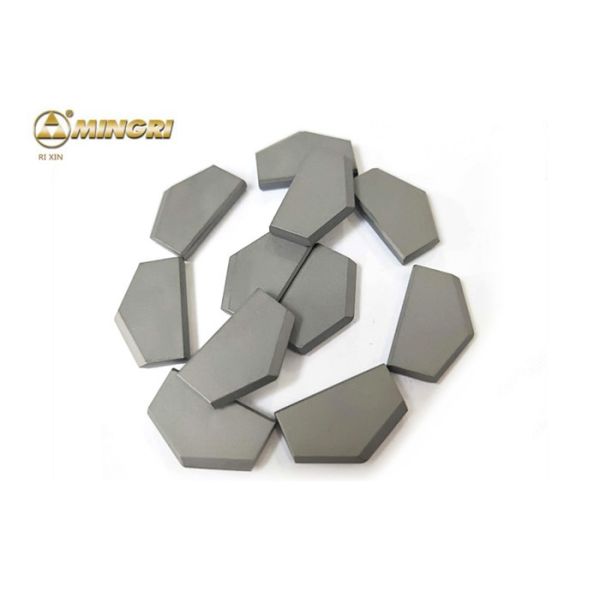

tungsten carbide tool tips

,
