Specifications
Brand Name :
RI XIN
Model Number :
Tungsten carbide strip
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Zhuzhou, Hunan, China
MOQ :
1 KG
Price :
USD+39~59+KG
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50 tons month
Delivery Time :
7 to 10 working days
Packaging Details :
paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Product Name :
YG6 YG6A YG8 YS2T YL10.2 K10 K20 tungsten carbide strips flats square bars
Keywords :
tungsten carbide strips, flats ,square bars
Grade :
YG6 YG6A YG8 YS2T YL10.2 K10 K20
Material :
100% raw material
Sample :
Acceptable
Hardness :
90.5-91.5HRA
Length :
330 or 310 mm or as Customized
Description


YG6 YG6A YG8 YS2T YL10.2 K10 K20 tungsten carbide strips flats square bars

Description

Product Name Carbide Strips
Material Co+WC 100% Virgin Raw Material
Color Gray
Advantage More Than 20 Years Experience
Grade K10, K20, K30, YG6, YG8, YG6A, YS2T, YG10X
Brand RI XIN


Carbide Strips Application:
1.Suitable for treating solid wood, shaving board and middle-density fiberboard.
2.Be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blade.
Our Advantage:
1.Superior heat stability.
2.Anti-deformation in high temperature.
3.Fine thermal shock resistance.
4.High thermal conductivity.
5.Excellent Oxidation control ability.
6.Strong anti-corrosion in high temperature.
7.Good corrosion resistance from Chemical.
8.High-wearing feature.
9.Long usage lifetime.

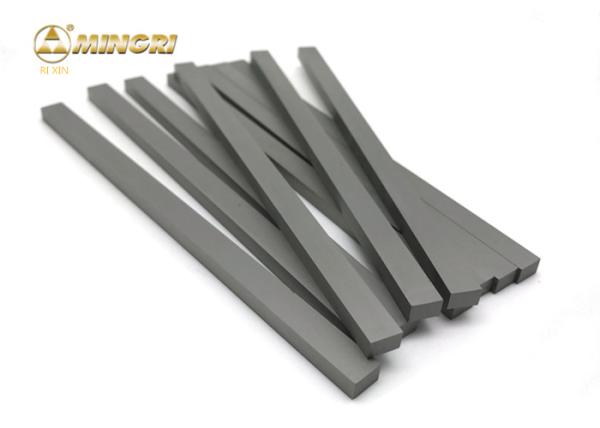

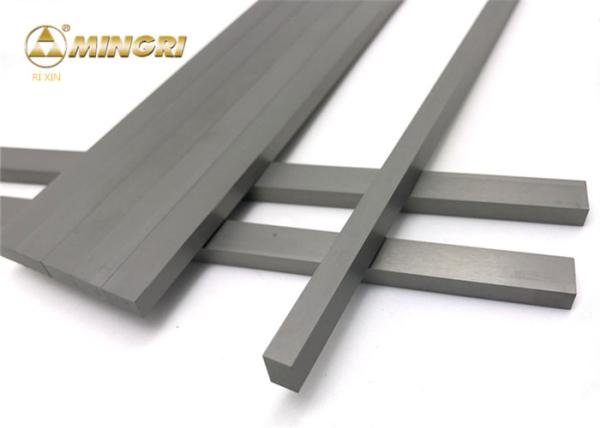

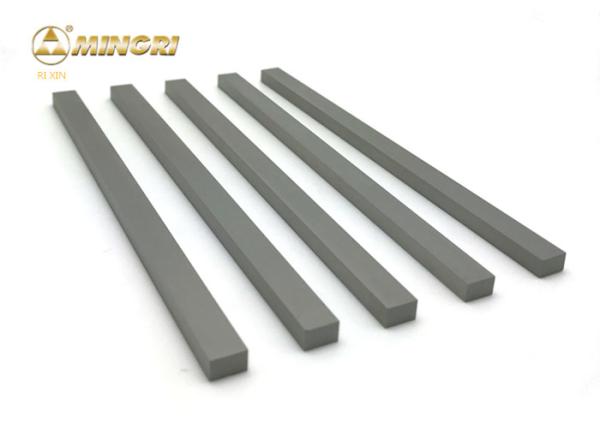

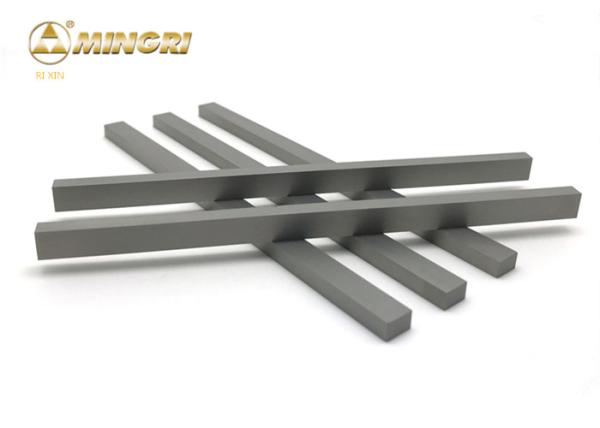

Detailed images
YG8 YS2T tungsten carbide strips flats square bars 90.5 - 91.5HRA
YG8 YS2T tungsten carbide strips flats square bars 90.5 - 91.5HRA
Grade

Grade Physical Properties

Density

g/cm3

Coercivity

kA/m

Hardness

HRA

TRS

≥N/mm2
YG6 14.82-15.05

12.5-17.5

13.0-17.0

 90.5-92.0 1720
YG6X 14.8-15.0

18.8-24.3

19.0-24.5

 91.7-93.0 1600
YG8 14.62-14.82

10.0-15.0

11.0-15.5

 89.5-91.0 1800
YG8C 14.6-14.8 6.3-9.3 87.5-89.0 2000
YG15 13.95-14.15 7.0-10.0 87.0-88.5 2300
YG15C 13.9-14.1 4.5-6.5 85.0-86.5 2300
More


Dimension and Tolerance

Dimensions and Tolerance (mm)
Length(mm) Tolerance Width(mm) Tolerance H Tolerance
<=80 +0 /+1.6 <=10 +0/+0.5 <=3.0 +0/+0.3
>80~100 +0 /+2.5 >10~20 +0/+0.6 >3~5 +0/+0.4
>100~150 +0 /+3.0 >20~30 +0/+0.6 >5~8 +0/+0.5
>150~200 +0/+4.0 >30~40 +0/+1.0 >8~10 +0/+0.8
>200~300 +0/+5.0 >50 +0/+1.5 >10 +0/+0.8
>300 +0/+6.0 ---- ---- ---- ----

Length:330 or 310 mm or cut to lenths upon requirements.
ALSO, we warmly welcome you and your drawing papers.
